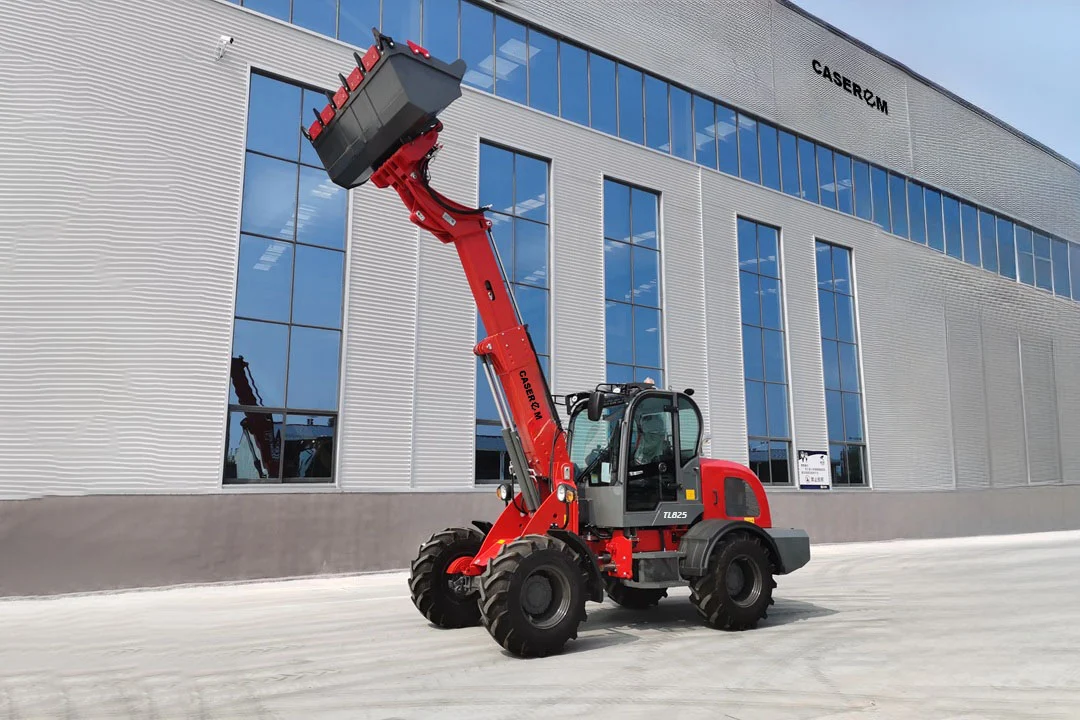

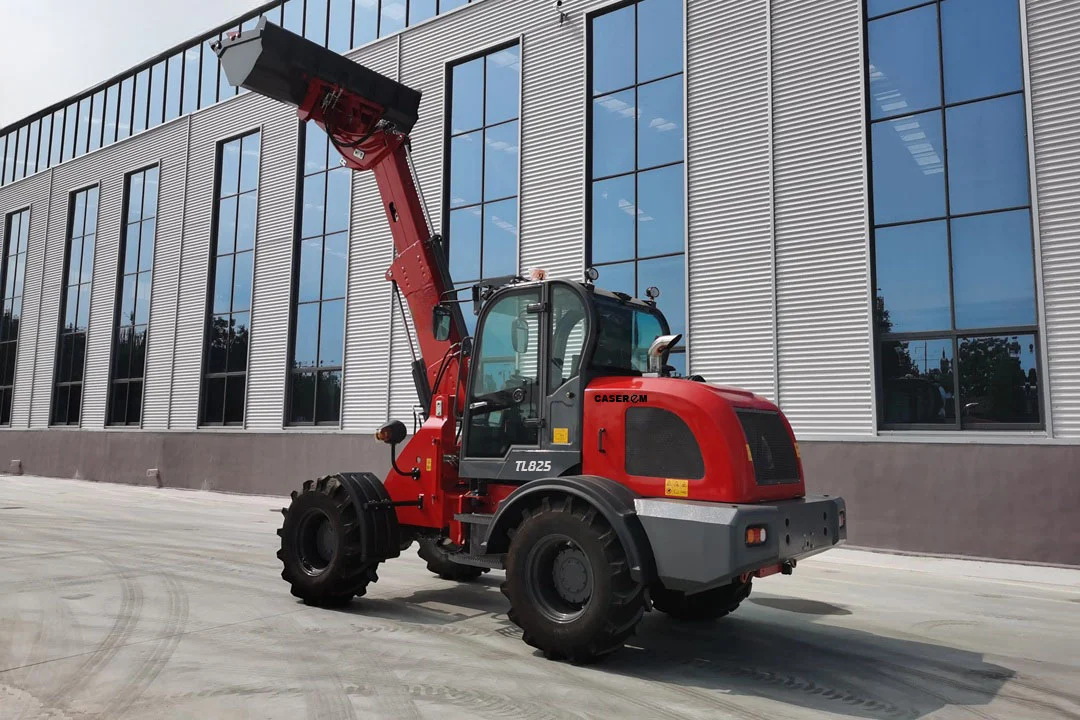

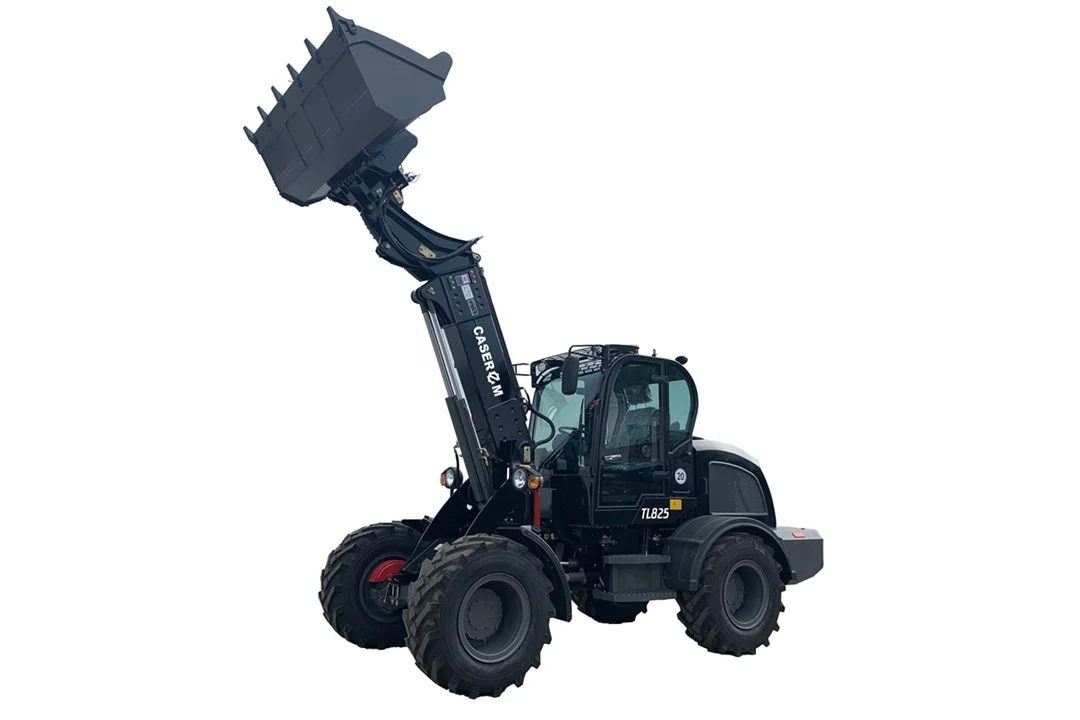

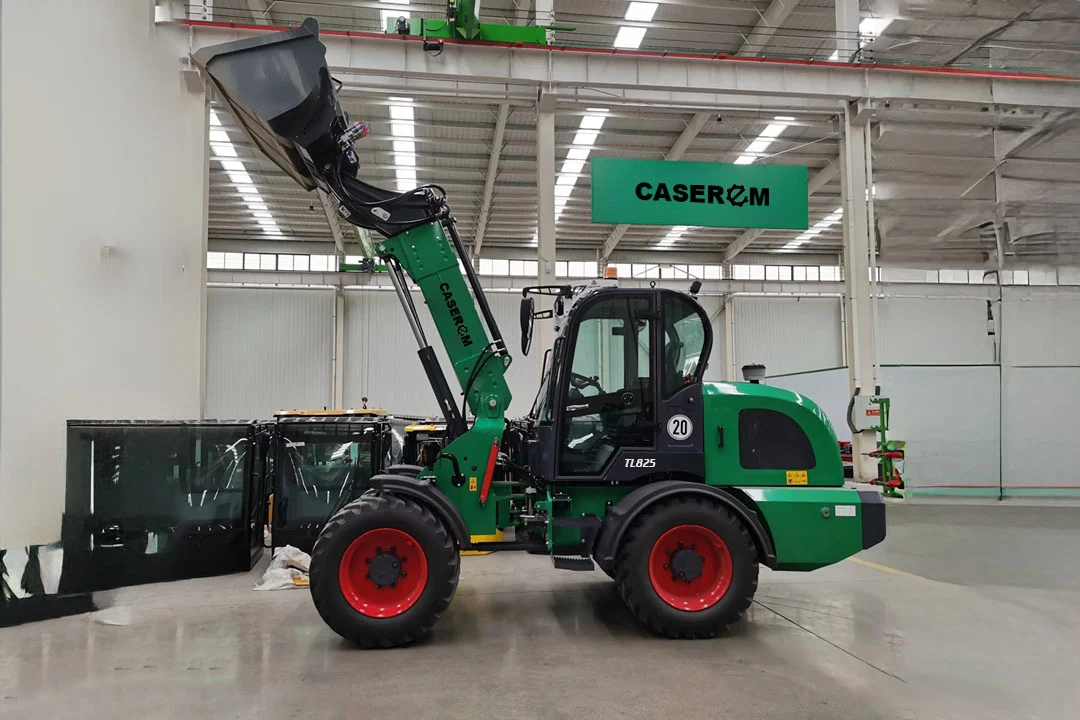

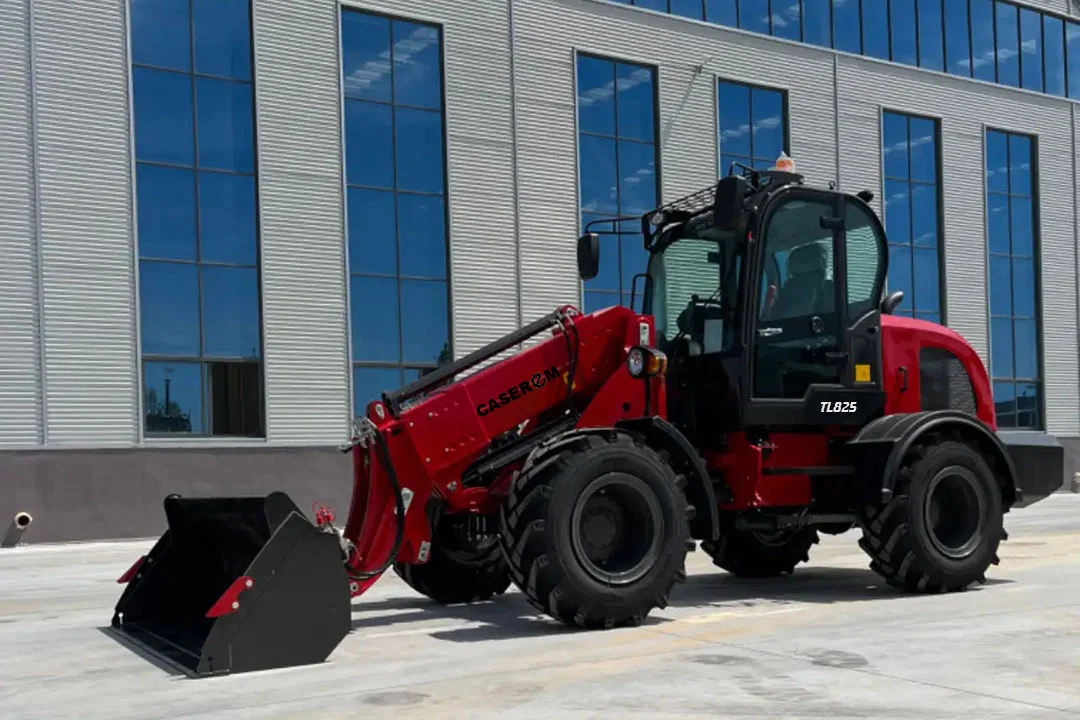

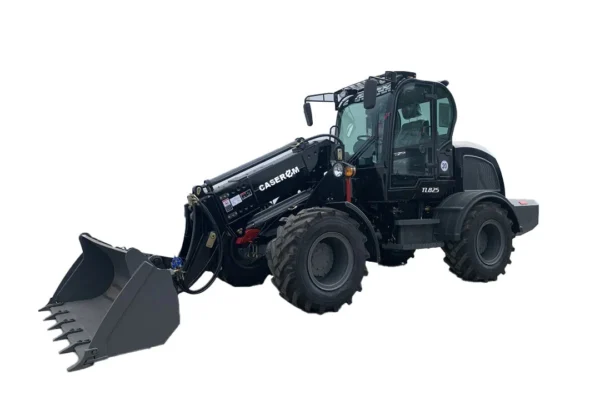

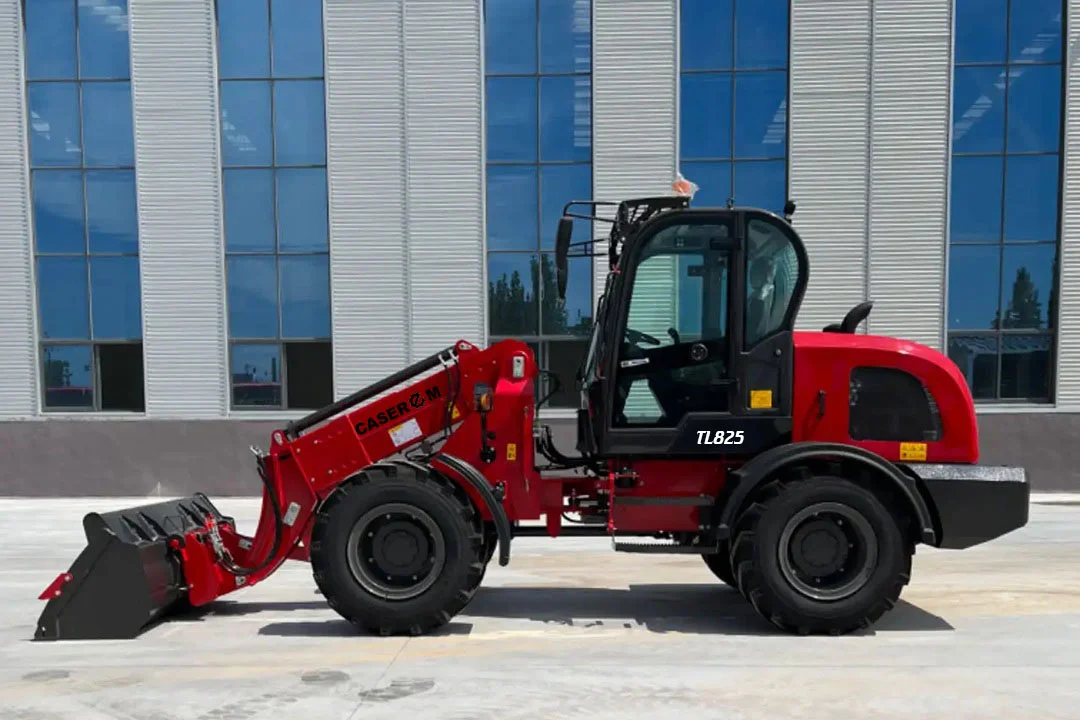

Telescopic Loader TL825
CASEREM TL825 is a 2.5 ton loading capacity Telescopic Wheel Loader, with the following features:

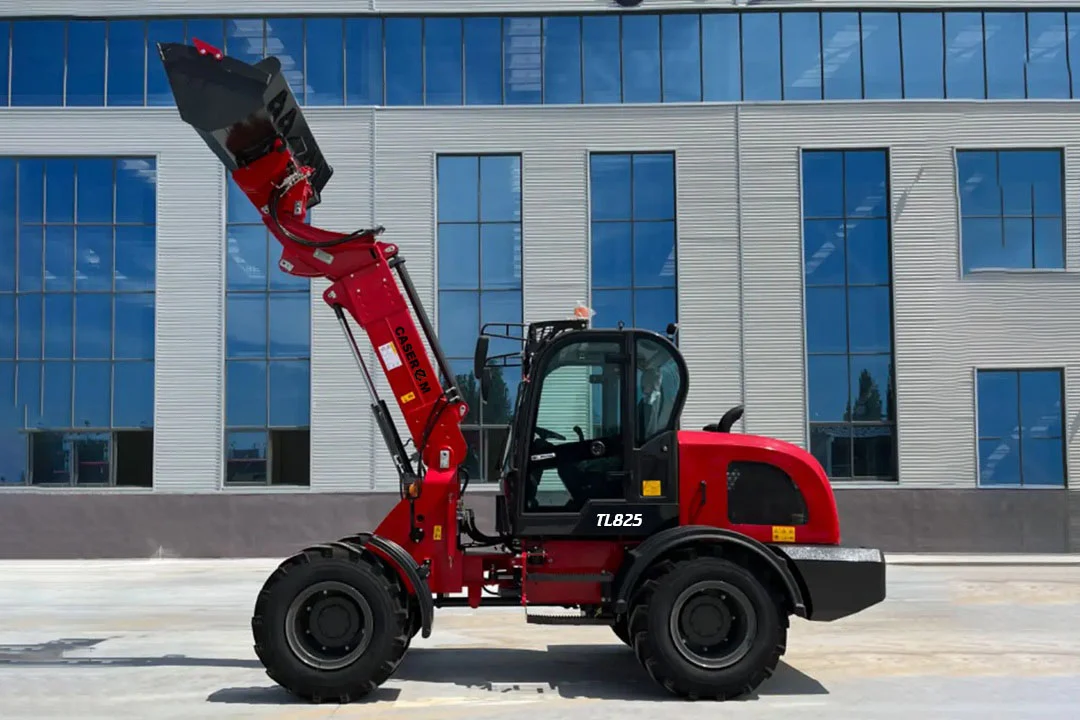

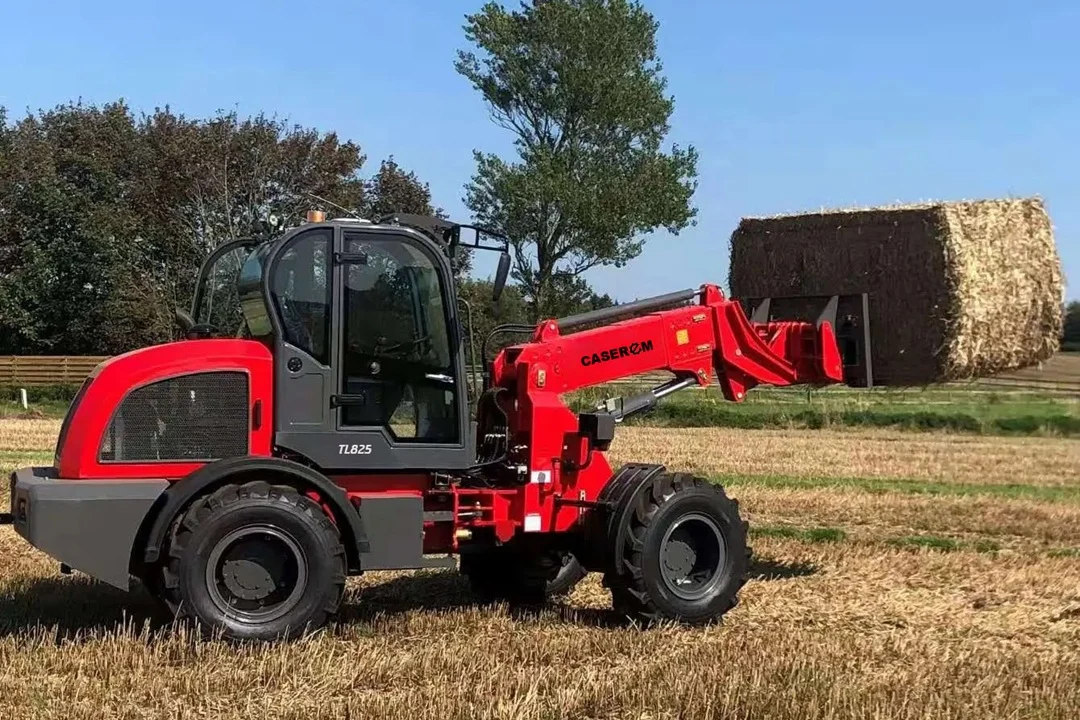

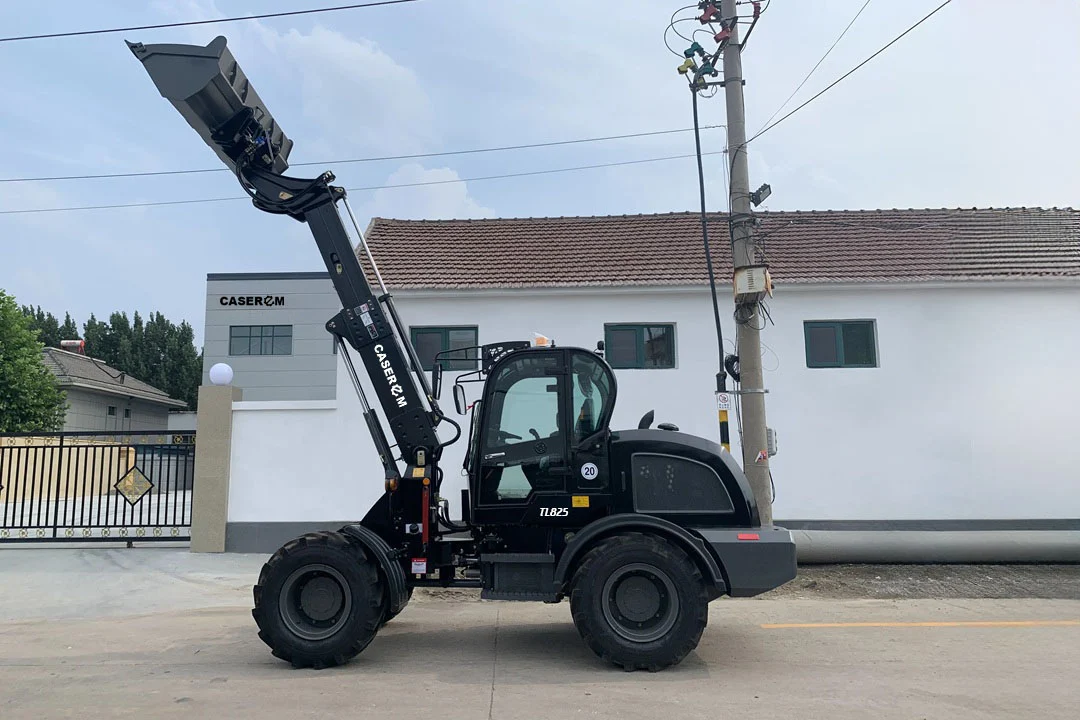

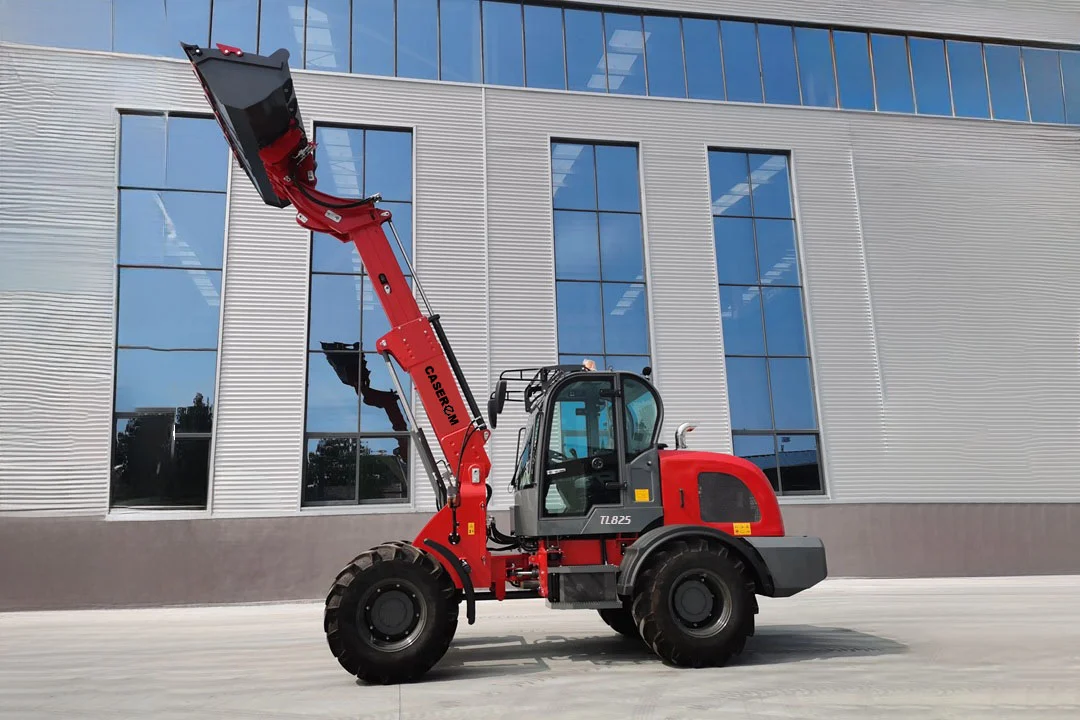

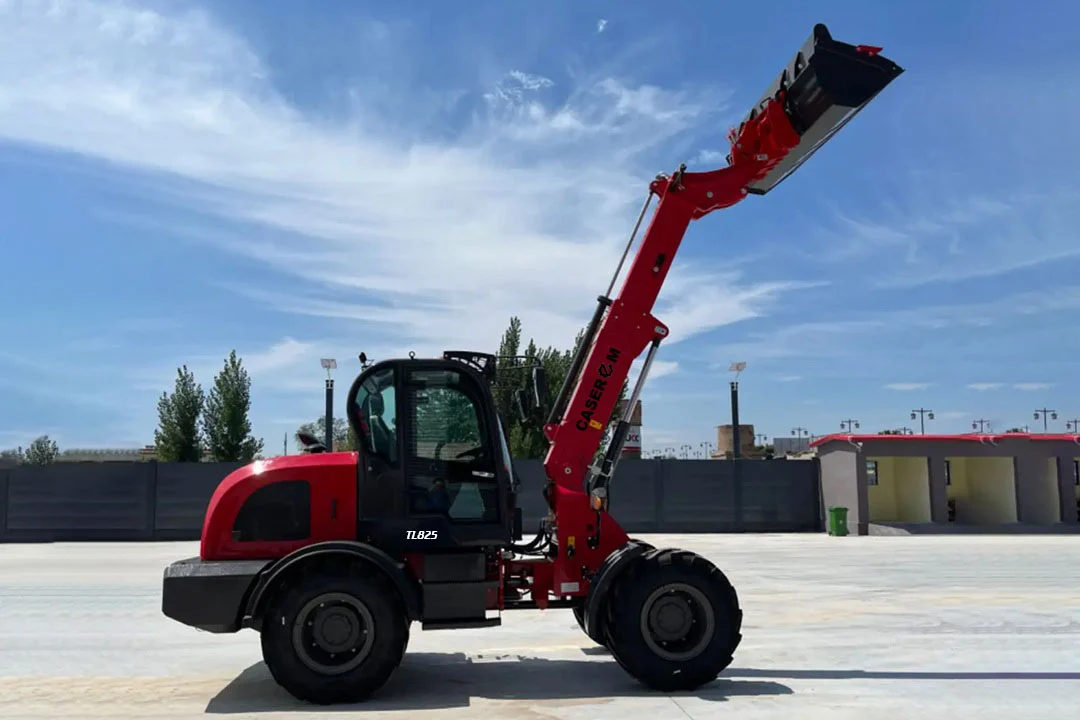

1. Telescopic boom arm, with Articulated Frames.
2. Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.

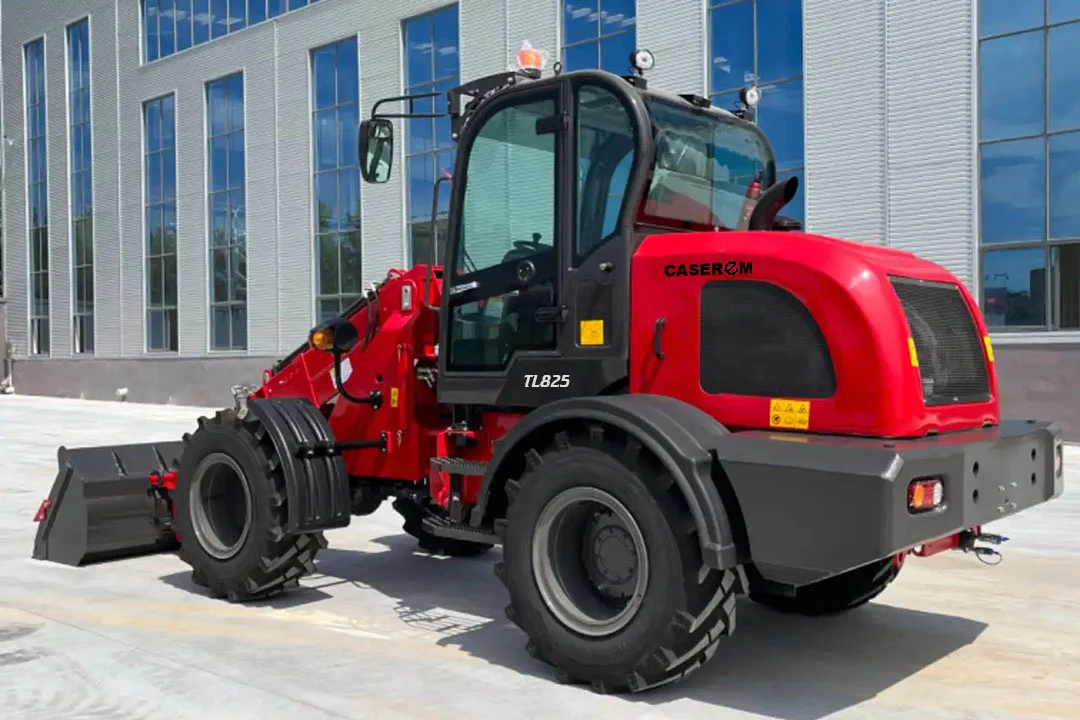

3. New Cabin design.
4. Axles with Disk brake, and Differential Gear Function
5. New Designed Cabin Interior View, with Joystick Control, makes the loading system easier to operate, Adjustable steering wheel.
6. Driving System: 4 X 4 Wheel Drive
7. LED Lights.
8. Quality Hydraulic pump, valves, and oil hoses.
9. Backup Camera, providing better and safer operating feature, and digital dashboard.
10. Widely Opened Rear Engine Hood, providing ease of engine maintenance, and Different Engine Options can choose from.
MAIN SPECS
LOADING CAPACITY: 2500KG
SELF WEIGHT: 5400KG
ENGINE POWER: 75KW (100hp)
1) Telescopic boom arm, with Articulated Frames. arm can extend longer, and shrink.
2) Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.
3) New Cabin design.
4) Axles with Disk brake, and Differential Gear Function
5) New Designed Cabin Interior View, with Joystick Control, makes the loading system easier to operate, Adjustable steering wheel.
6) Driving System: 4 X 4 Wheel Drive
7) LED Lights, much brighter and much longer life time, than the regular halogen lights.
8) Quality Hydraulic pump, valves, and oil hoses, makes the owner not warrying about the hydraulic system.

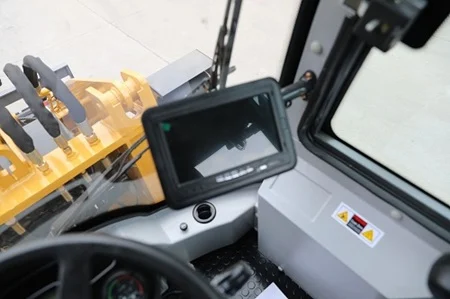

9) Backup Camera, providing better and safer operating feature, and digital dashboard.
10) Widely Opened Rear Engine Hood, providing ease of engine maintenance, and Different Engine Options can choose from.

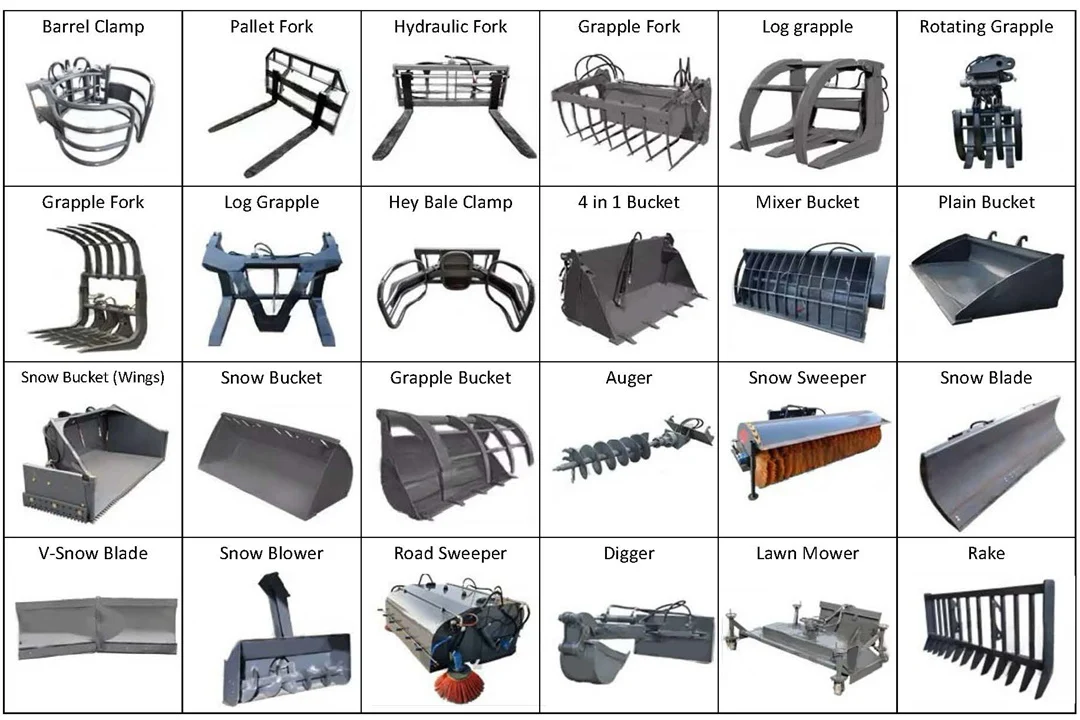

11) Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| Telescopic Loader TL825 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 2500kg |
| Overall Weight | 5400kg | |
| Bucket capacity | 1.2 cbm | |
| Bucket width | 2100mm | |
| L x W x H | 5755 x 2100 x 2730mm | |
| Dumping Height: | 3850mm | |
| Max Tractive Force | 37.75kn | |
| Wheelbase | 2300mm | |
| Track Base | 1500mm | |
| Standard Engine | Make & Model: | YUNNEI 75KW (100hp) |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 75kw (100hp) @2200rpm | |
| Engine Option #1 | Make & Model: | Dongfeng Cummins 4BT3.9-C100 |
| Engine type: | 4 Cylinder Turbo Diesel 3.9L Engine | |
| Rated Power: | 75kw(100HP) @ 2400rpm | |
| Engine Option #2 | Make & Model: | CUMMINS EPA TIER 4 |
| Engine type: | 4 Cylinder Turbo Diesel Engine | |
| Rated Power: | 55kw(74hp) @ 2500rpm | |
| Transmission system | Type | Full Hydraulic Power Shift |
| Gear Numbers: | 4 Forward; 4 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2500 (rpm) | |
| Operating Specifications | Drive Means: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 4640mm | |
| Time of raise: | 4.8sec. | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Service Brake: | Air over Hydraulic Disk Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 16/70-20 | |
