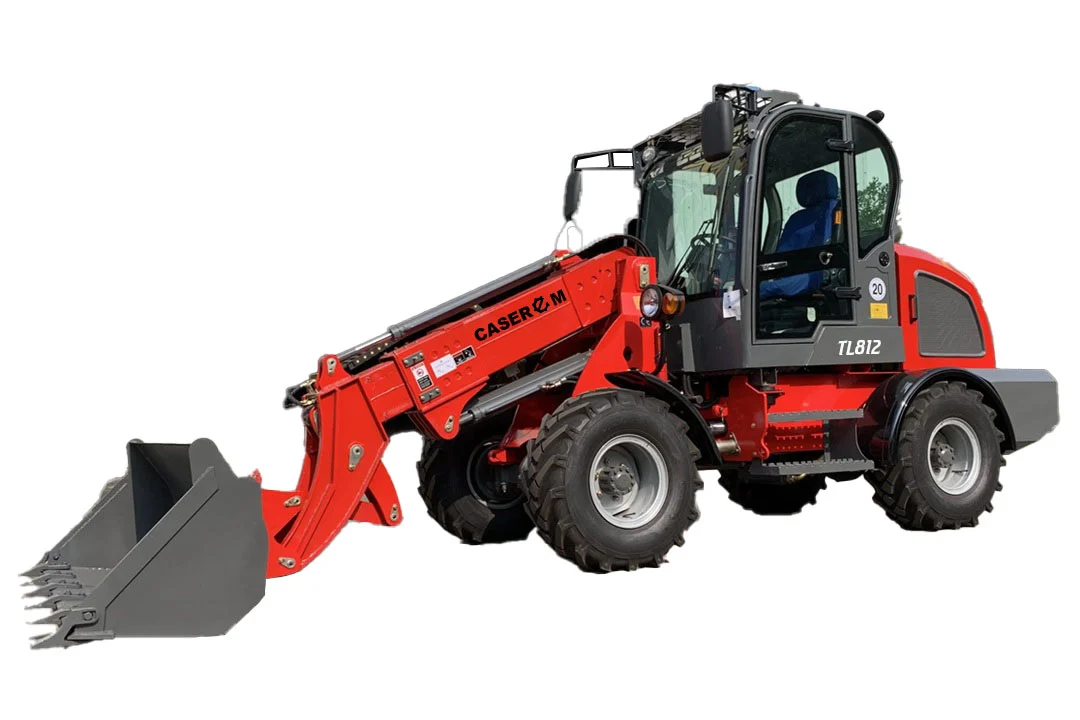

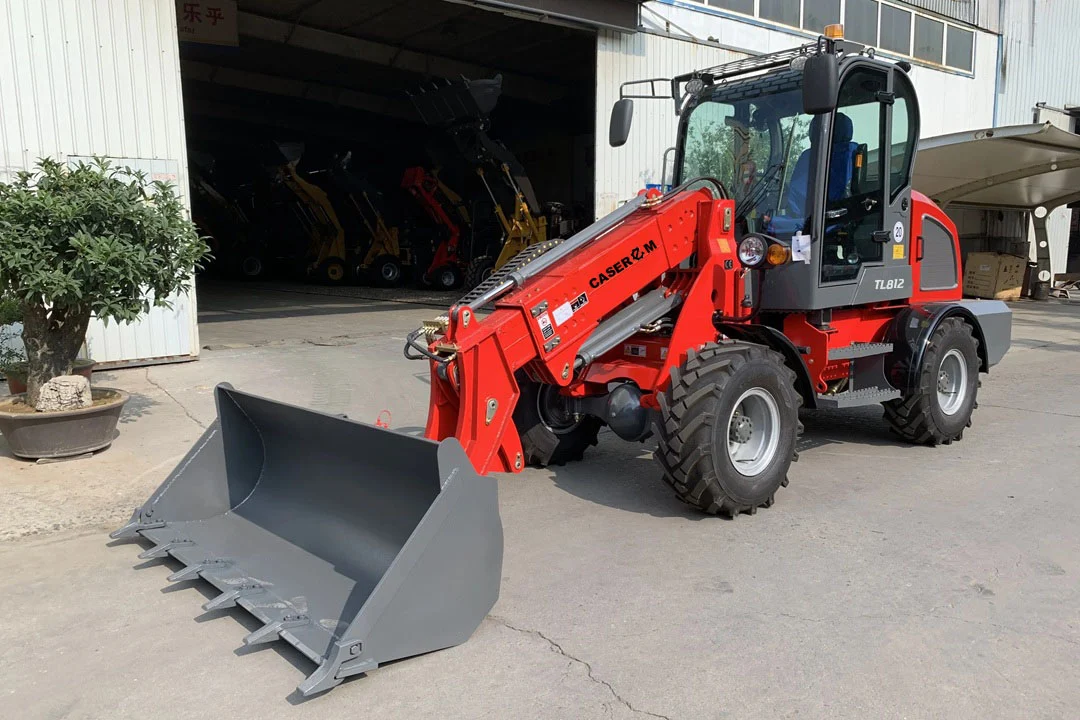

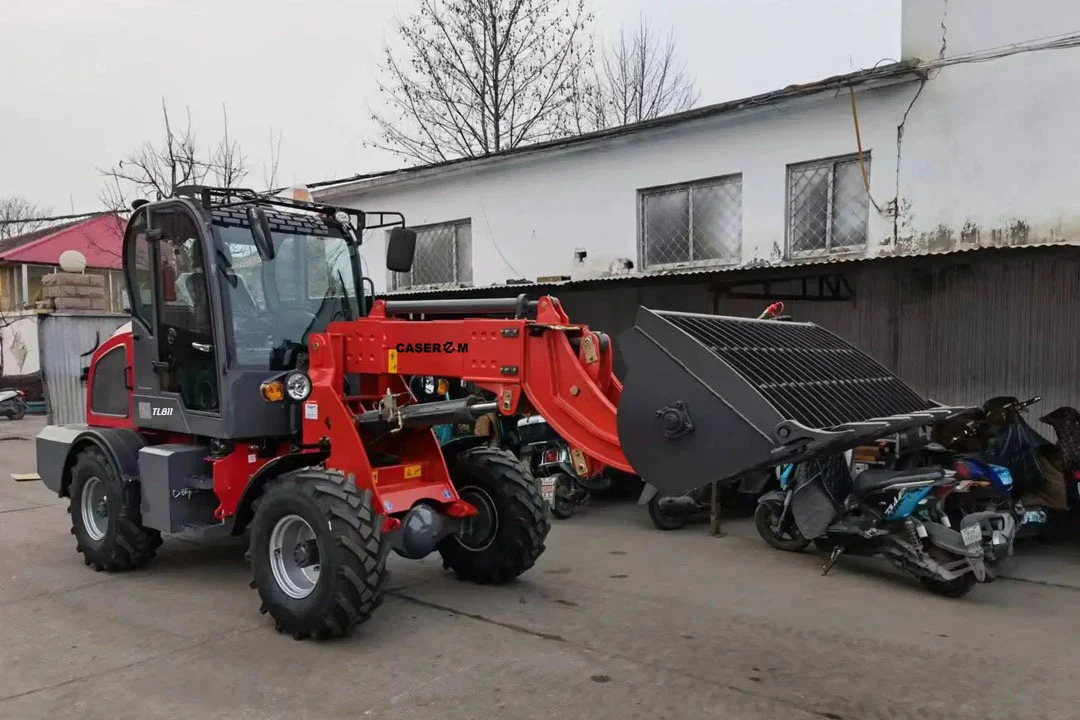

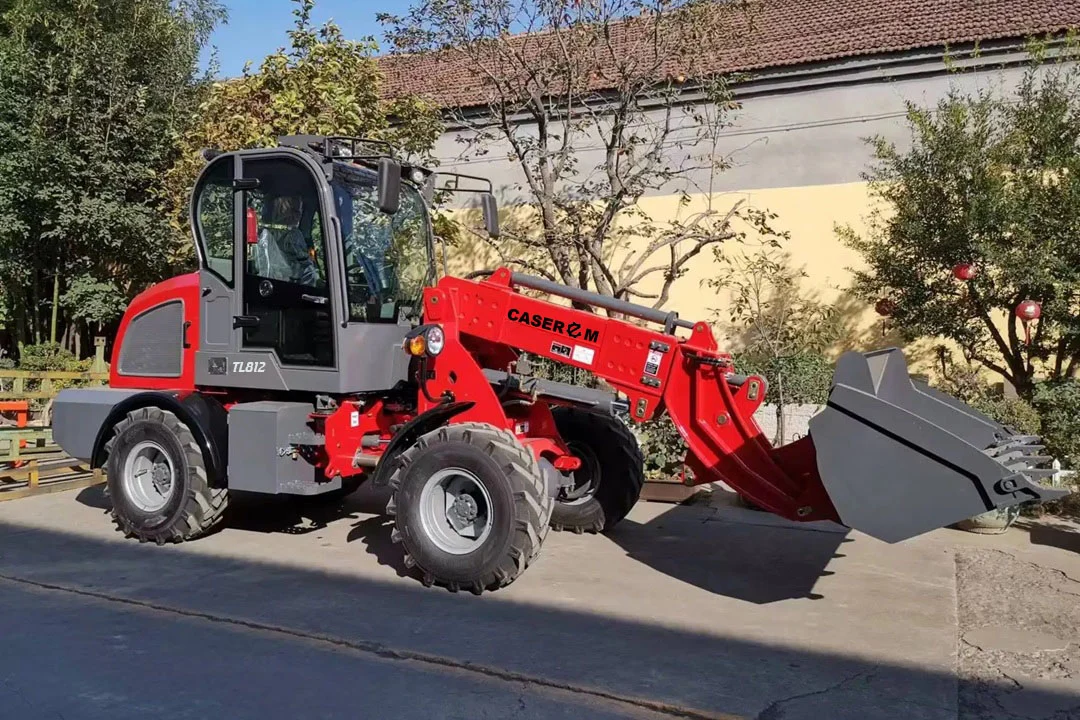

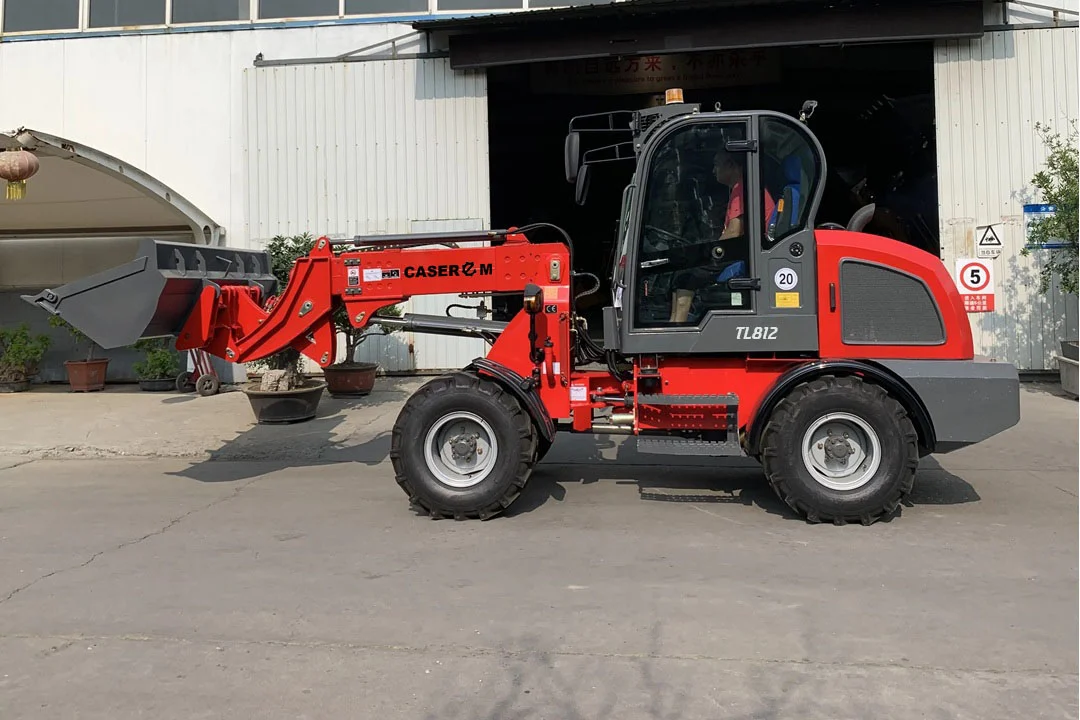

Telescopic Loader TL812
CASEREM TL812 is a 1.2 ton loading capacity Telescopic Wheel Loader, with the following features:

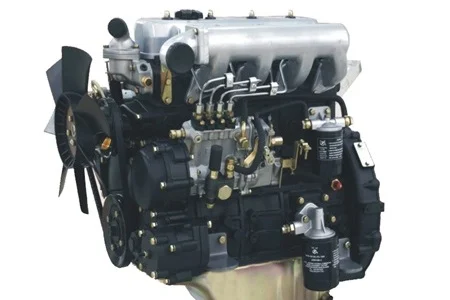

1. Engine: Xinchai 498, 36.8kW(50hp)
2. Fully hydraulic power shift Transmission, and Torque Convertor.
3. Axle with drum brakes, and Differential Gear Function.
4. Electric Gear Control on Joystick

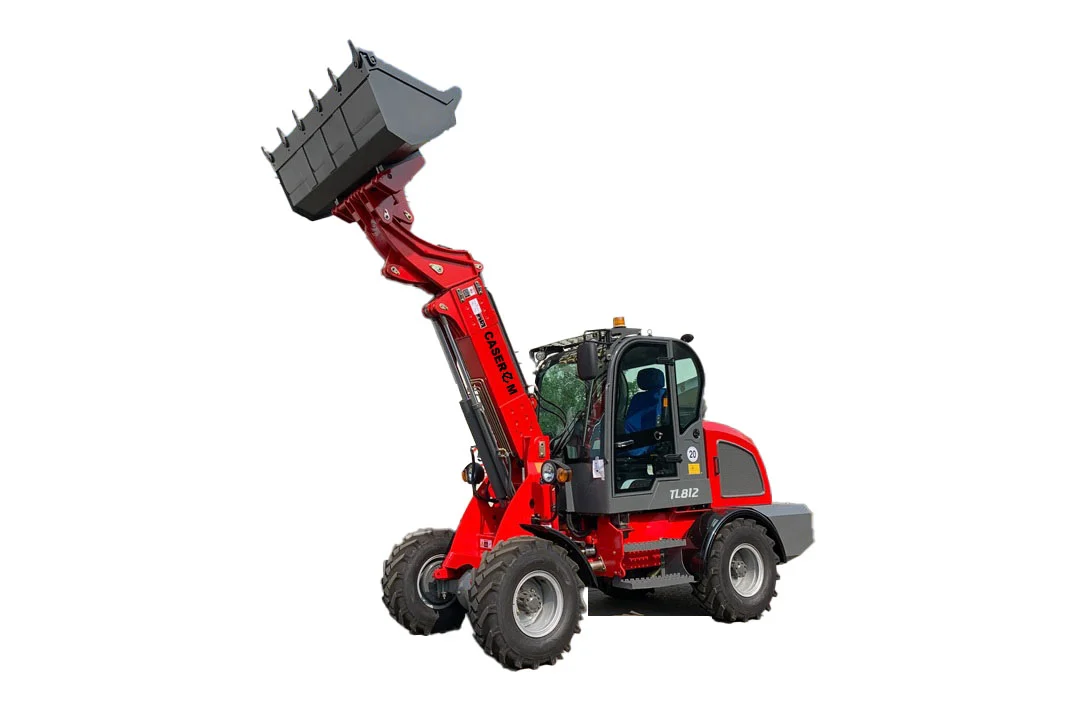

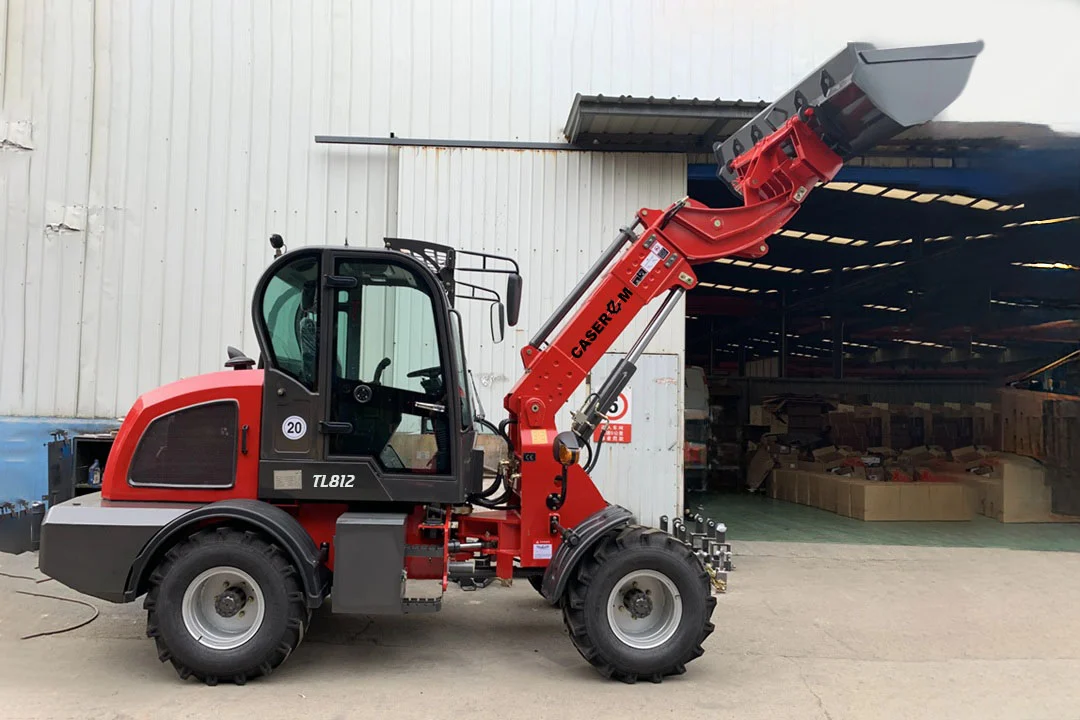

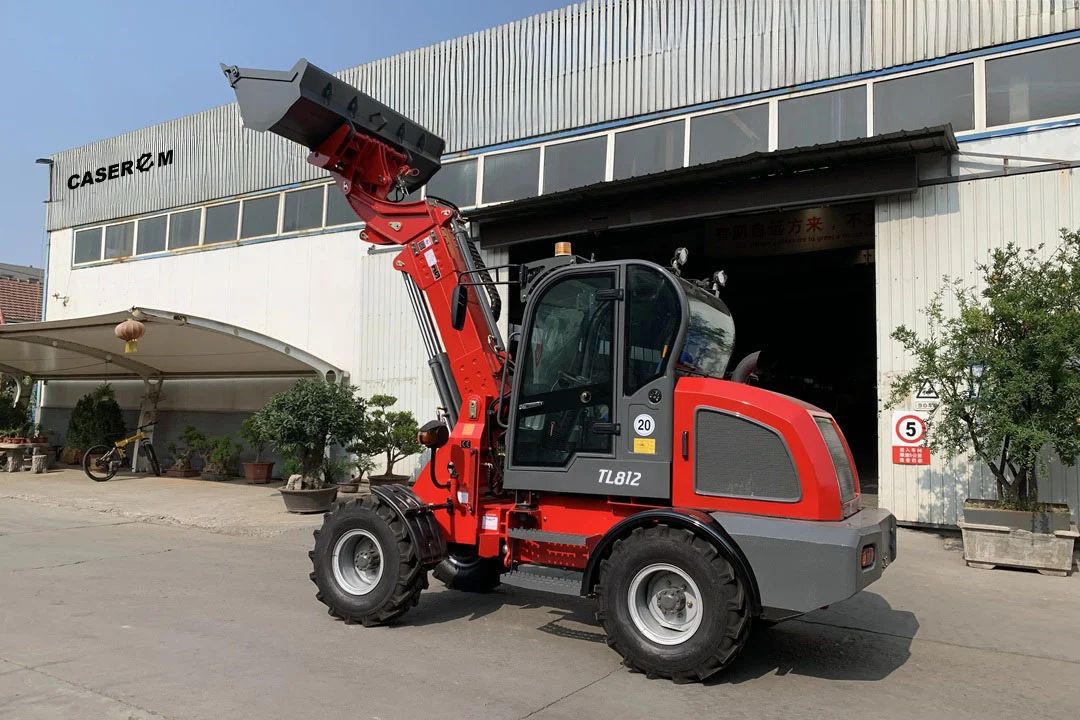

5. Telescopic boom arm, with modern, and up-to-date type of Articulated Frame Design.
6. LED Lights.
7. Quality Hydraulic pump, valves, and oil hoses.
8. Backup Camera.
9. Different Engine Options can choose from.
10. Fully openable engine hood.
11. Better painting, using the latest powder painting technology.
12. A wide range of Attachments available
MAIN SPECS
LOADING CAPACITY: 1200KG
SELF WEIGHT: 3900KG
ENGINE: 36.8KW (50hp)
1. Engine: Xinchai 498, 36.8kW(50hp)
2. Fully hydraulic power shift Transmission, and Torque Convertor.
3. Axle with drum brakes, and Differential Gear Function.
4. Electric Gear Control on Joystick: handy for operator.
5. Telescopic boom arm, with modern, and up-to-date type of Articulated Frame Design.
6. LED Lights.
7. Quality Hydraulic pump, valves, and oil hoses.
8. Backup Camera.
9. Different Engine Options can choose from.
10. Fully openable engine hood.
11. Better painting, using the latest powder painting technology.
12) Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| Telescopic Loader TL812 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 1200kg |
| Overall Weight | 3900kg | |
| Bucket capacity | 0.6 cbm | |
| Bucket width | 1750mm | |
| L x W x H | 5476 x 1750 x 2530mm | |
| Lifting Height: | 5030mm | |
| Dumping Height | 4208mm | |
| Standard Engine | Make & Model: | Xinchai 498 Euro3 |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 36.8kW (50hp) @2400rpm | |
| Transmission system | Type | Full Hydraulic Power Shift |
| Gear Numbers: | 2 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2200 (rpm) | |
| Operating Specifications | Drive Train: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 4805mm | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Service Brake: | Hydraulic Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 20.5/70 - 16 | |
