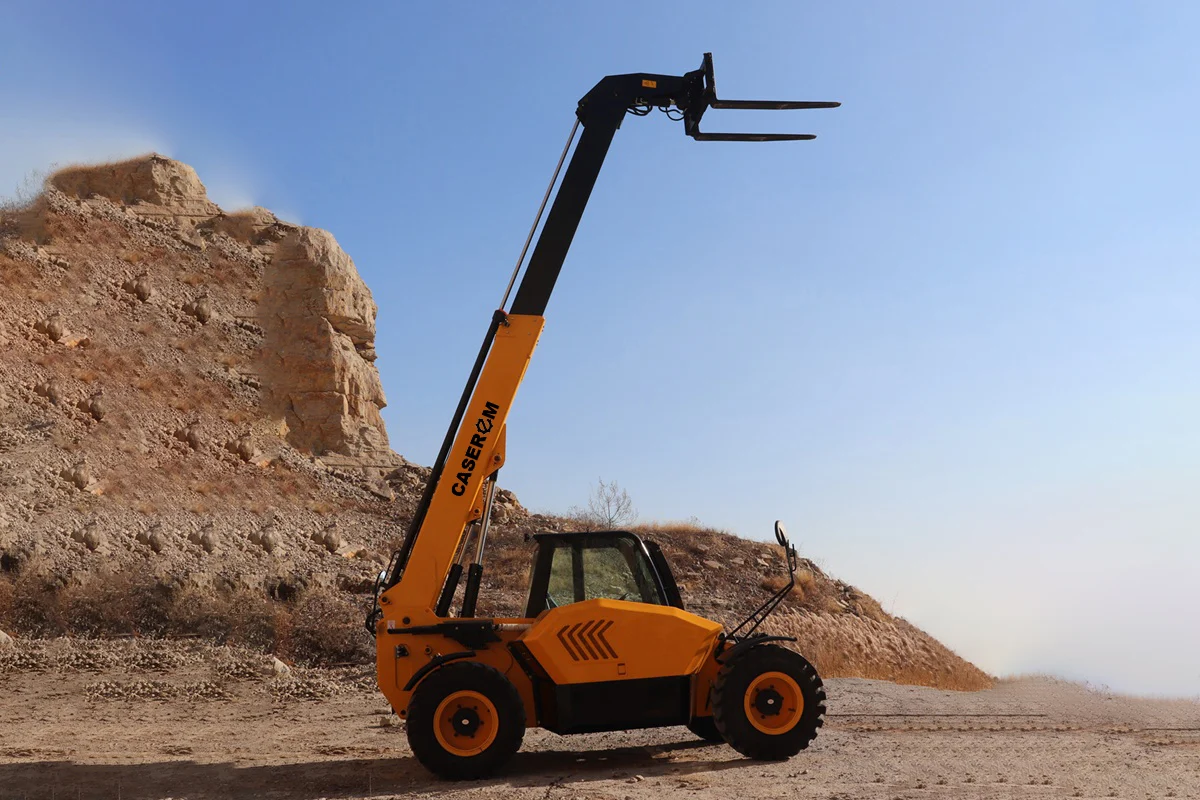

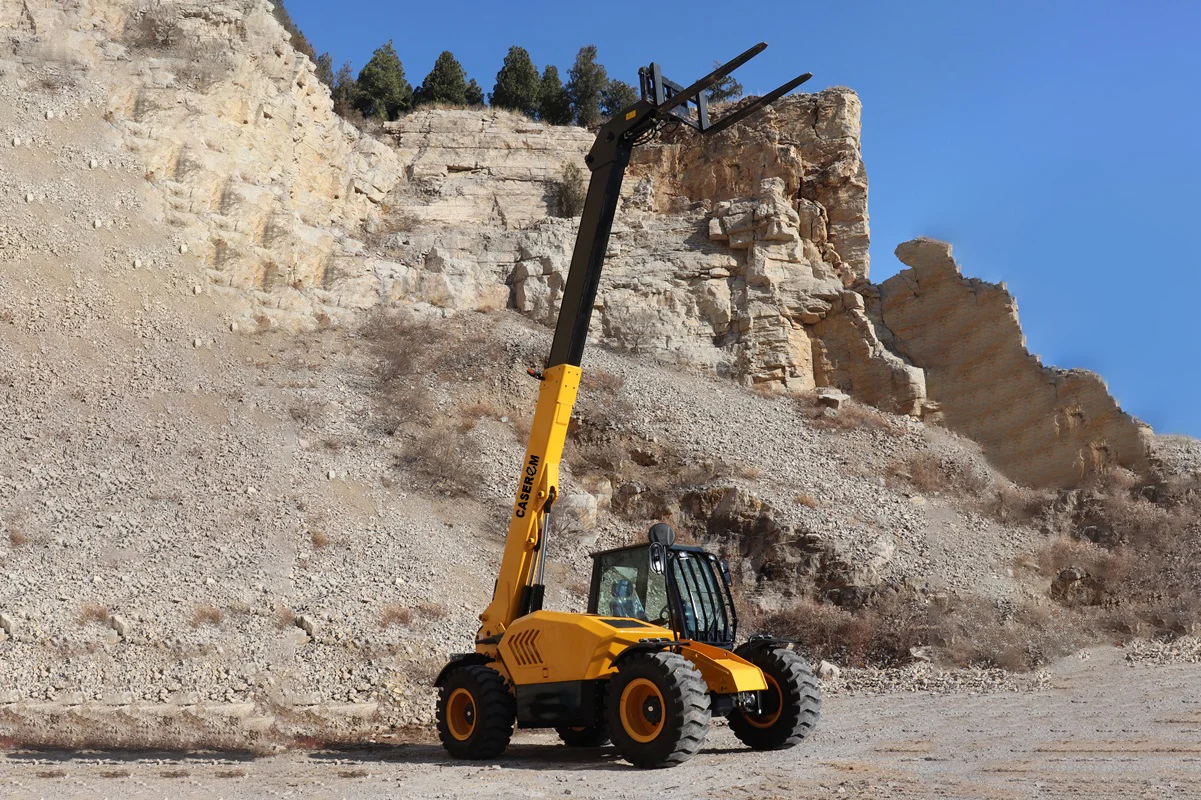

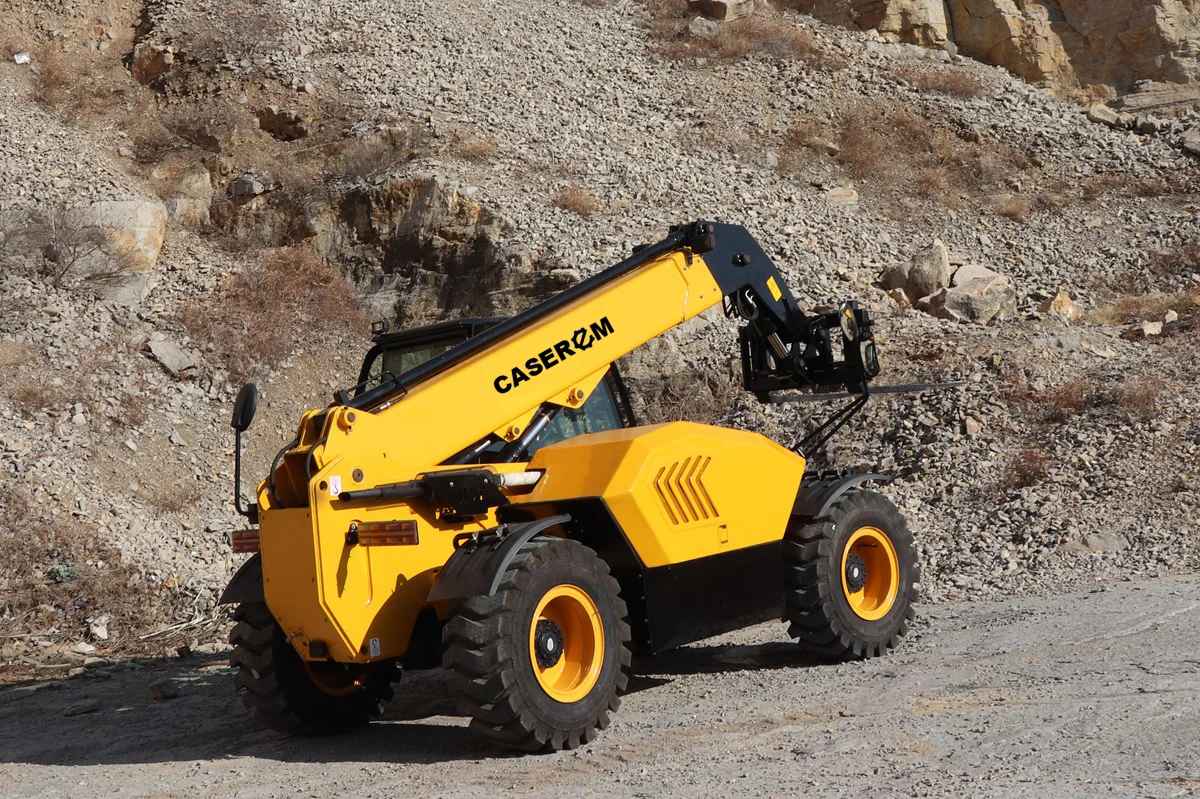

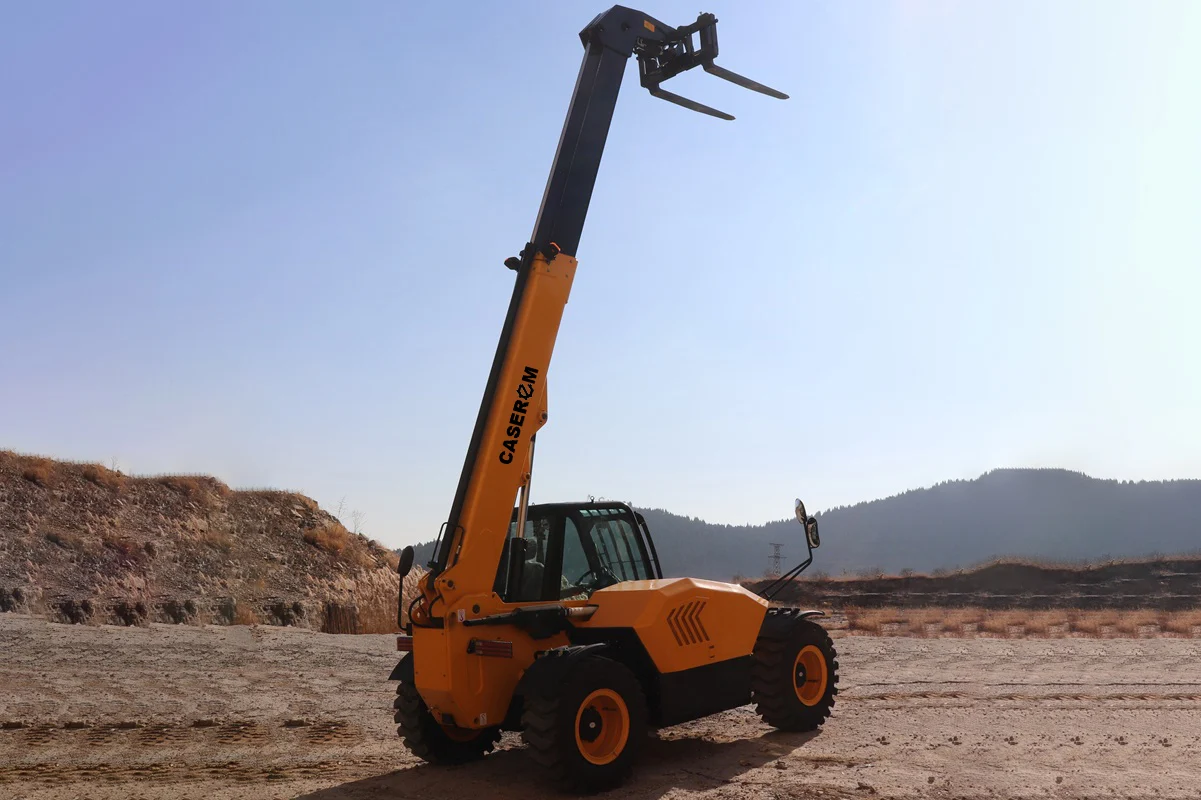

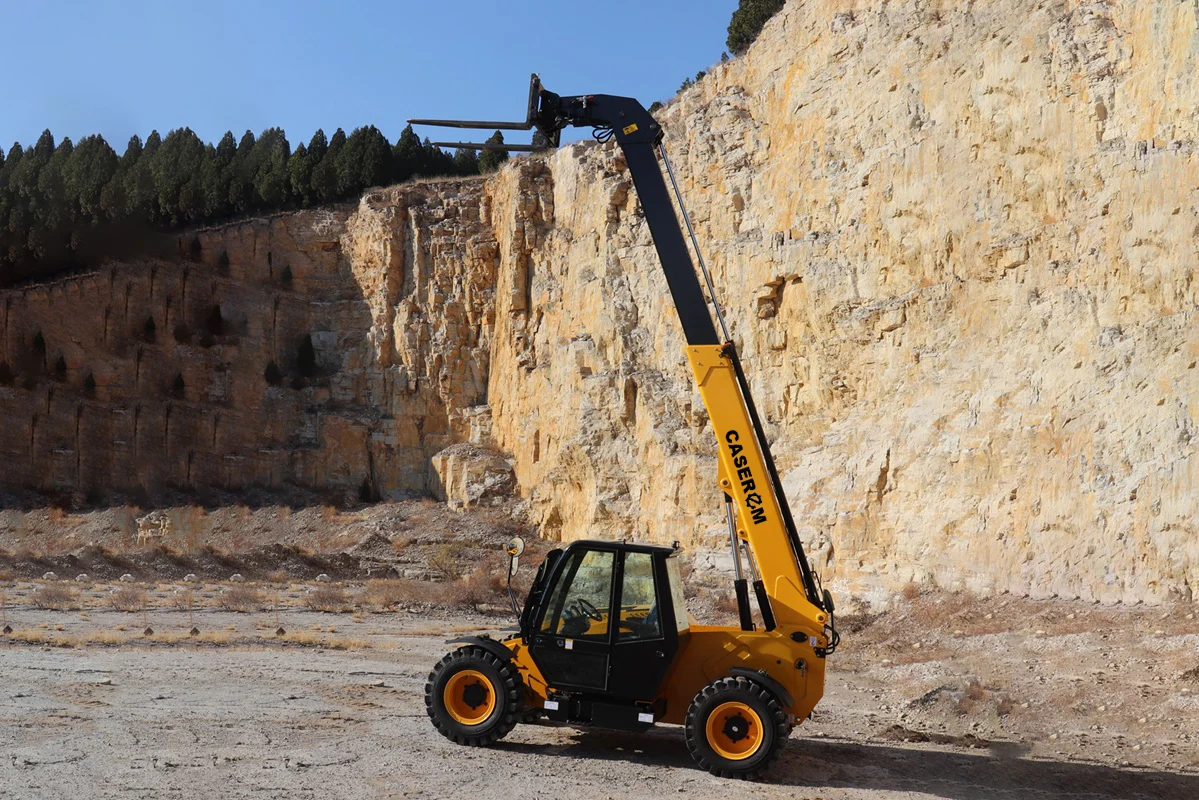

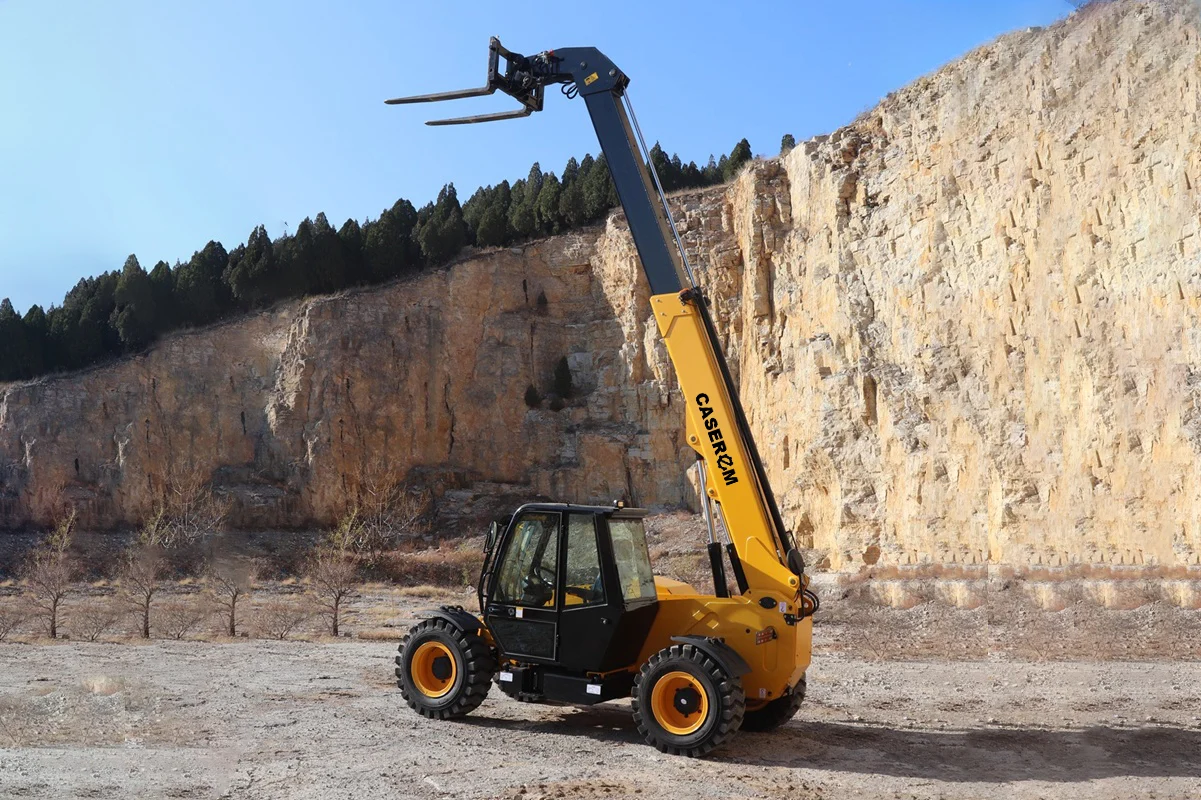

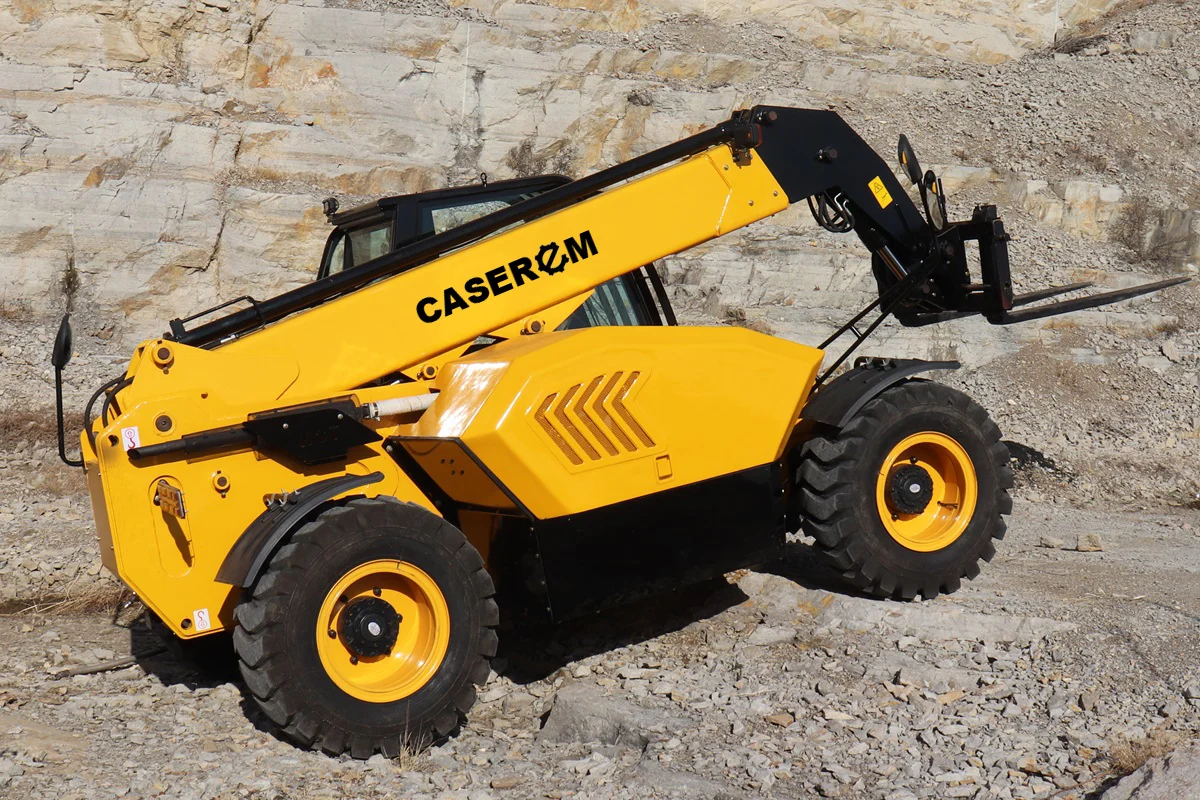

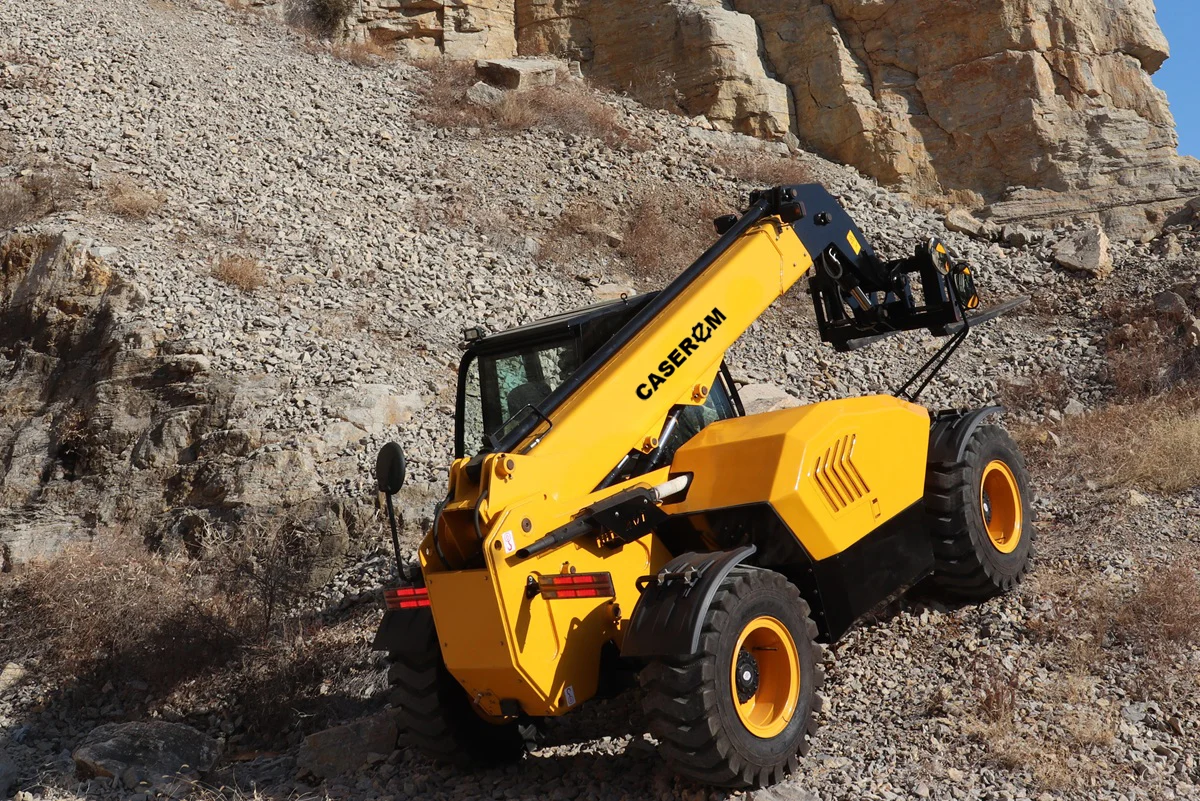

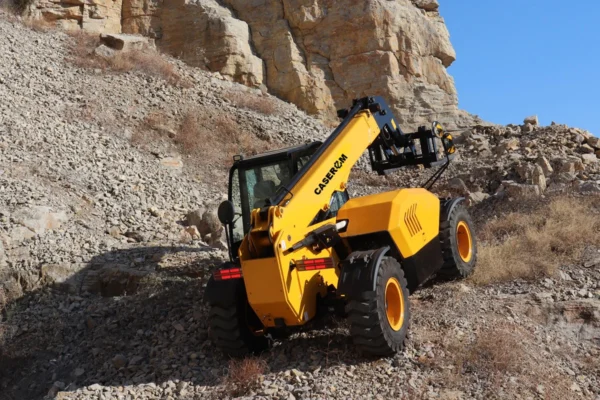

TELEHANDLER THD30
CASEREM THD30 is a Telehandler of Loading Capacity of 3 Ton, with the following features:
1. Max Lifting Height: 7000mm
2. Three steering methods, Front wheel / Four wheel / Crab Steering.
3. ROPS (Roll-Over Protective Structures).
4. Drive Train: 4 x 4.

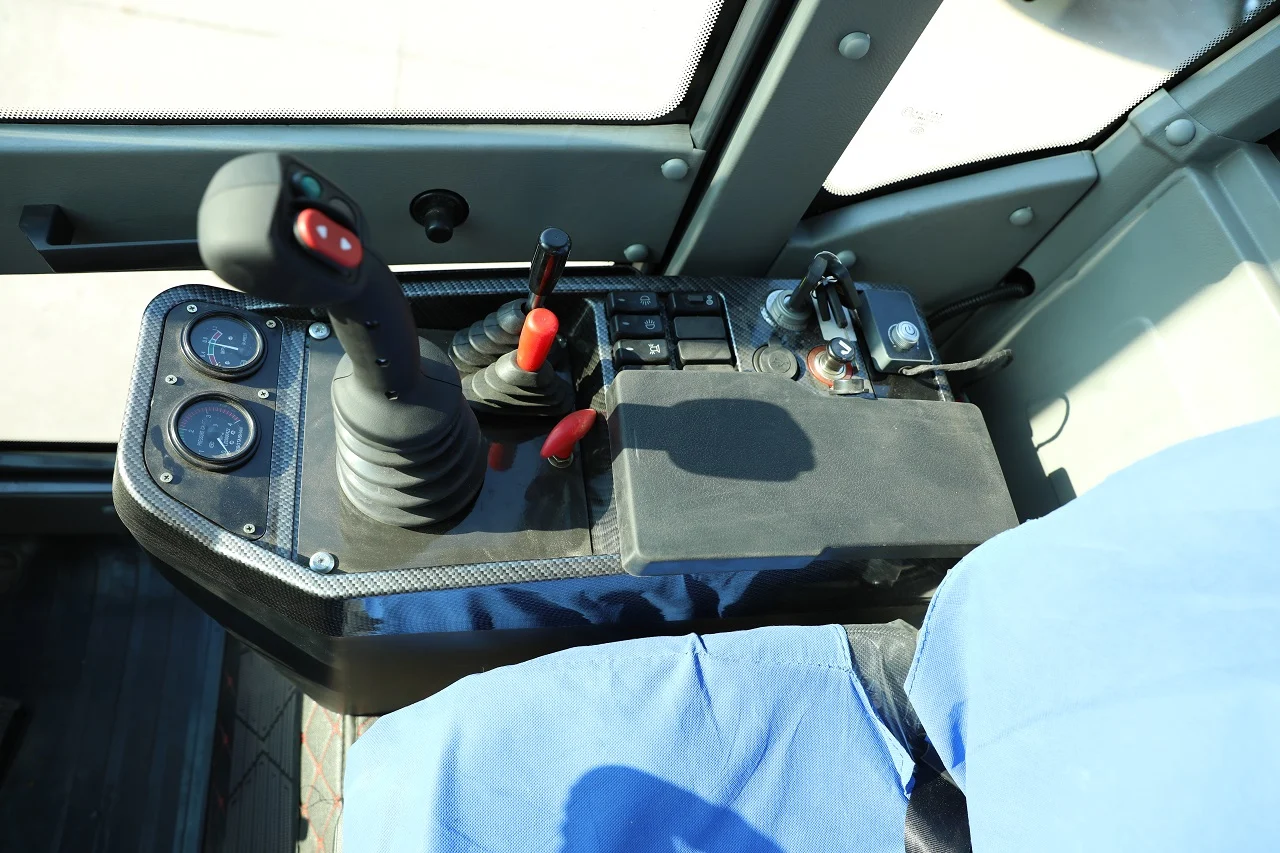

5. Joystick Control.

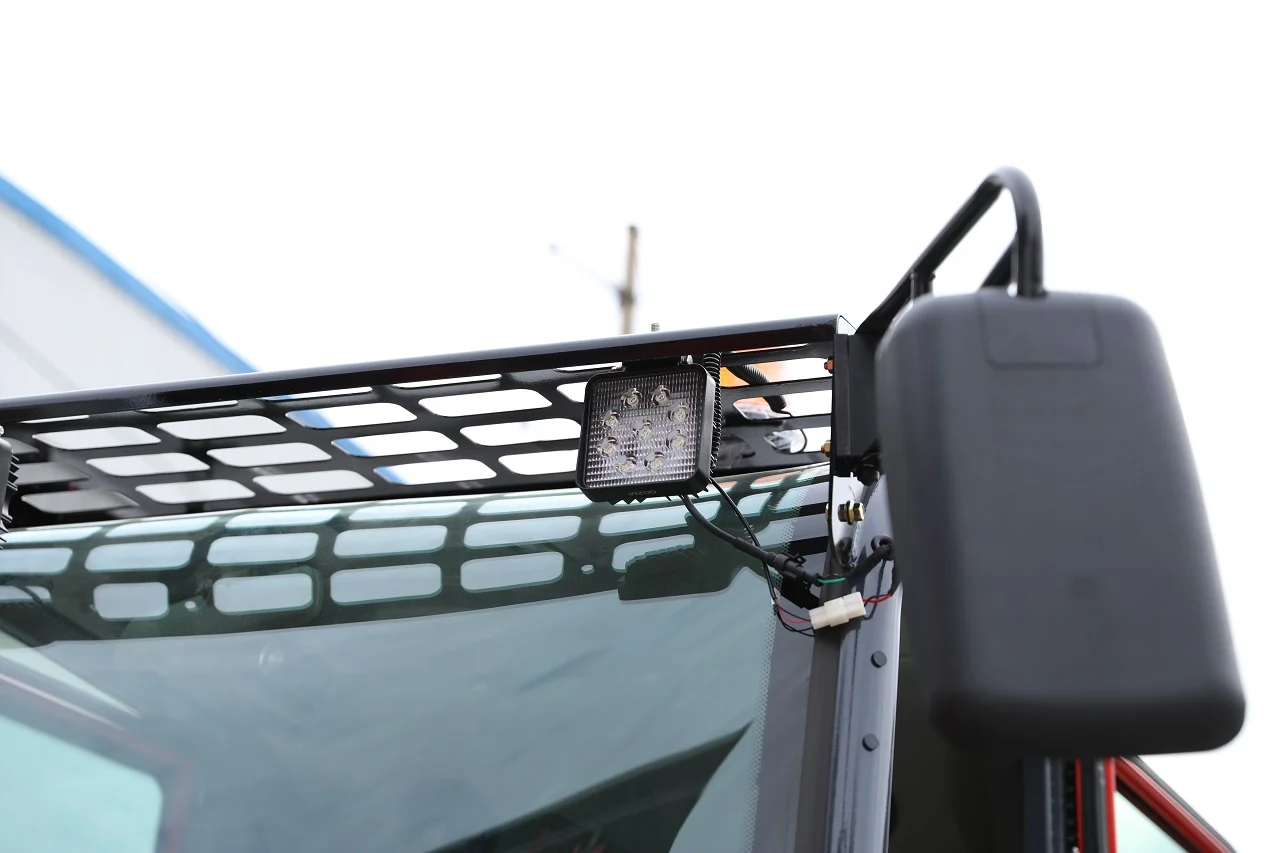

6. LED Lights.
7. Cabin with Heater and AC
8. Extra hydraulic hose.
9. Better Seat.
10. Different engine options can choose frome.
MAIN SPECS
Loading Capacity: 3000kgs.
Max Lift Height: 7000mm.
Engine: YN 75kw(100hp).
1. Max Lift Height 7000mm
2. Three steering methods, Front wheel / Four wheel / Crab Steering.
3. ROPS (Roll-Over Protective Structures).
4. Drive Train: 4 x 4.
5. Joystick Control.
6. LED Lights.
7. Cabin with Heater and AC
8. Extra Hydraulic Hose.
9. Better Seat.
10. Different Engine options can choose fromeat with Arm Rest.
11. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| Telehandler CASEREM THD30 | ||
|---|---|---|
| Main Specs | L x W x H | 5870 X 2150 X 2300mm |
| Overall Weight | 7500kg | |
| Rated Lifting Capacity | 3000kg | |
| Max Lifting Height | 7000mm | |
| Standard Forks Length | 1220mm | |
| Engine | Make & Model: | Yunnei YN 75kw (100hp) |
| Engine Type | Water-cooled, 4 Cylinder Turbo Diesel Engine | |
| Rated Power: | 75kw@2200rpm (100hp) | |
| Transmission System | Type | Full Hydraulic Power Shift |
| Gear Numbers | 2 Forward, 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated Input Speed | 2200rpm | |
| Operating Specs | ||
| Drive Train | 4 x 4 Wheel Drive | |
| Steering System | ||
| Front wheel | ||
| Four wheel | ||
| Crab Steering. | ||
| Min Turning Radius | 5600mm | |
| Max Speed | 30km/h | |
| Brake System | Service Brake | Air over Hydraulic Disk Brakes |
| 262mm | Hand Operated | |
| Tires | 16/70-20 | |
