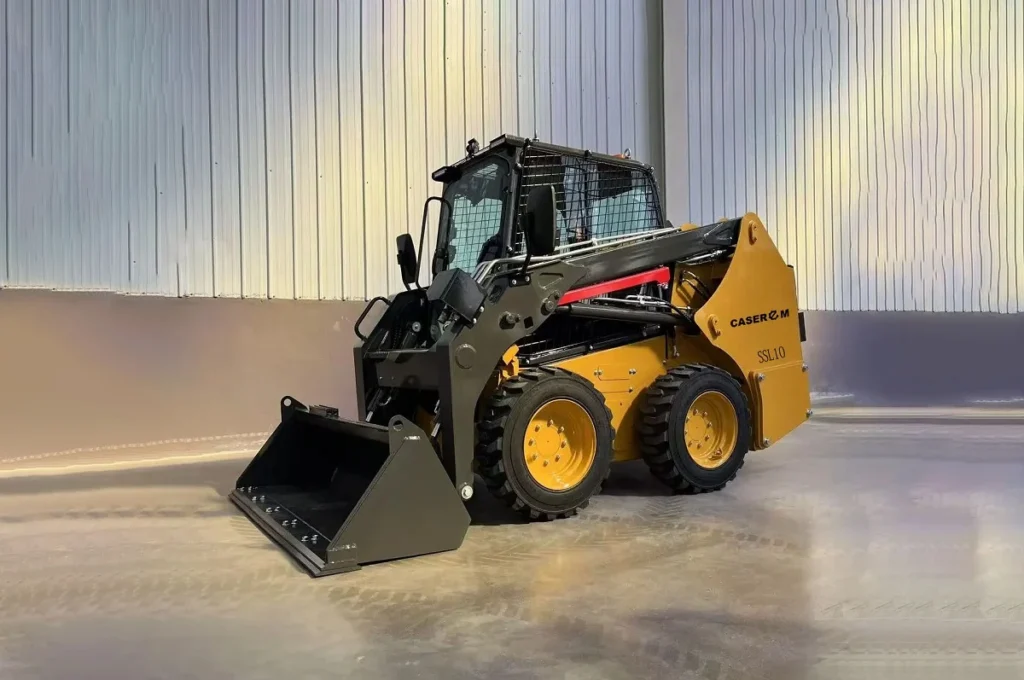

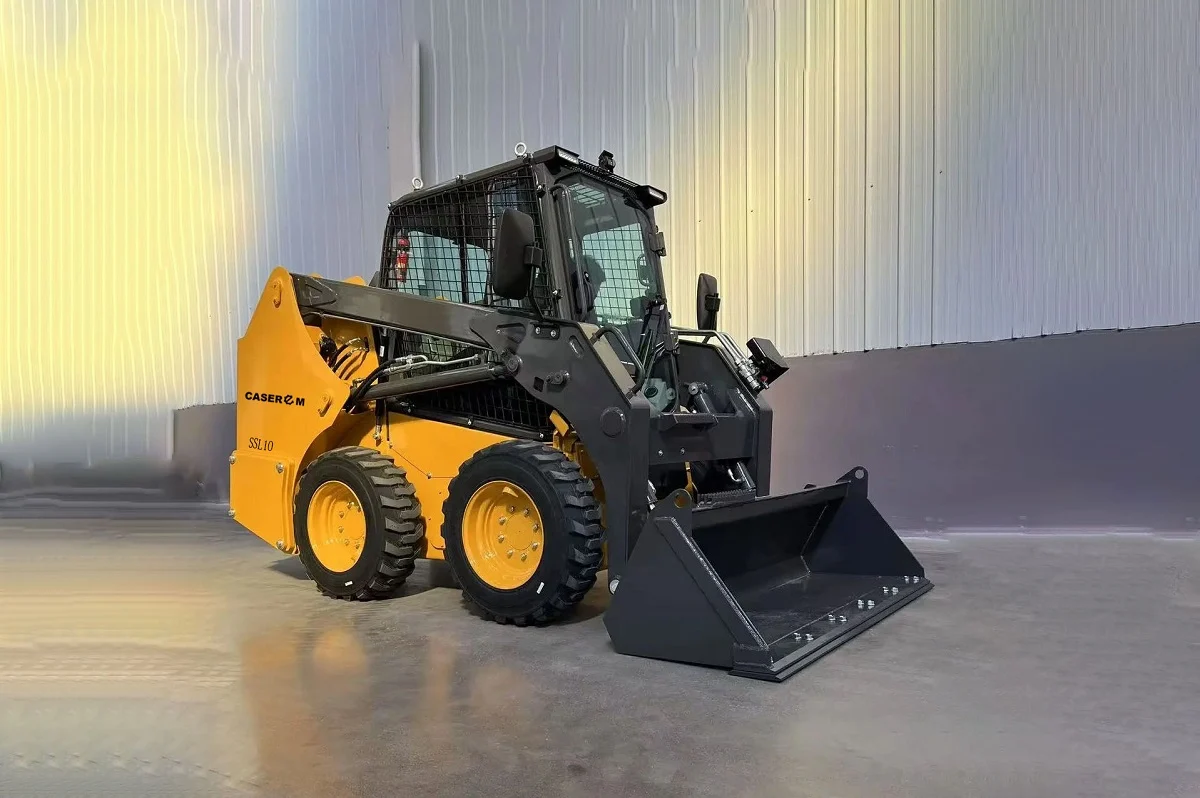

Skid Steer CASEREM SSL10
CASEREM SSL10 is 1.0 ton loading capacity Skid Steer Loader, with the following features:
1) Compact Size
2) Easy Maneuverability
3) High Power-to-Weight Ratio.
4) Ease of Maintenance
5) Cost-Effective
6) Time and Labor Saving
7) Versatility
MAIN SPECS
LOADING CAPACITY: 1000KG
SELF WEIGHT: 3140KG
ENGINE POWER: 37KW (50hp)
1) Compact Size
CASEREM SSL10 Skid steers can be fitted with various attachments (buckets, augers, trenchers, pallet forks, sweepers, etc.), making them suitable for tasks such as digging, lifting, grading, and demolition.
2) Easy Maneuverability
CASEREM SSL10, with the unique steering system, that allows the machine to turn within its own footprint (zero-radius turning), offering superior control and precision in confined areas.
3) High Power-to-Weight Ratio.
CASEREM SSL10 skid steer offer excellent lifting and pushing power, making them capable of handling heavy materials with ease.

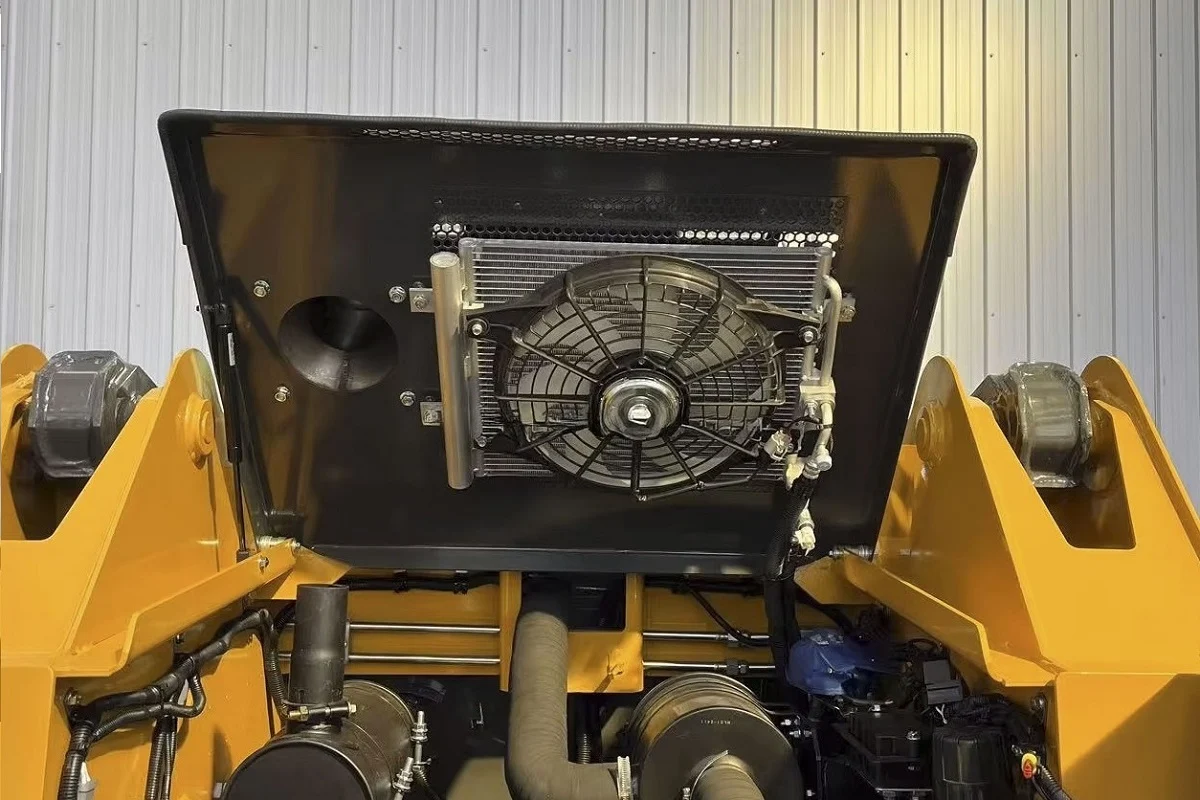

4) Ease of Maintenance
CASEREM SSL10 is designed for easy servicing, with accessible engine compartments and simplified maintenance procedures.
5) Cost-Effective
SSL10 Skid Steer with lower initial cost and high utility across different jobs make SSL10 a budget-friendly investment for small to medium-sized operations.
6) Time and Labor Saving
With quick attachment changes and multi-functional capabilities, SSL10 skid steer can replace several manual tasks, improving overall project efficiency.
7) Versatility
SSL10 Skid Steer can be fitted with various attachments (buckets, augers, trenchers, pallet forks, sweepers, etc.), making them suitable for tasks such as digging, lifting, grading, and demolition.
SPECIFICATIONS
| SKID STEER CASEREM SSL10 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 1000kg |
| Overall Weight | 3140kg | |
| Bucket capacity | 0.45 cbm | |
| Bucket width | 1800mm | |
| L x W x H | 3500 x 1800 x 2000mm | |
| Dumping Height: | 2475mm | |
| Min. Turning Radius | 1213mm | |
| Wheelbase | 1078mm | |
| Brake Out Force | 24kn | |
| Standard Engine | Make & Model: | Xinchai 490BPG |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 36.70KW (50hp) @2400rpm | |
| Transmission system | Brand | PWG (Italy) |
| Max Travel Speed | 14km/h | |
| Max Torque | 2290Nm | |
| Rated input speed: | 2400 (rpm) | |
| Hydraulic System | Brand: | PWG (Italy) |
| Standard Auxiliary Flow | 84.8 Liters/min | |
| Hydraulic Pressure | 21Mpa | |
| Hydraulic cycle time | < 10sec. | |
| Tank Capacity | Diesle Tank: | 78L |
| Hydraulic Tank | 45L | |
| Tire Size | 10/16.5 | |
