Wheel Loader 925

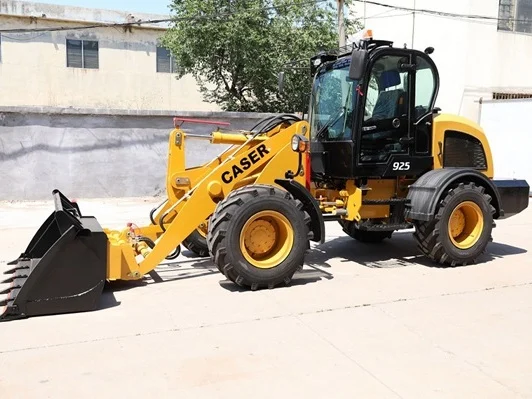

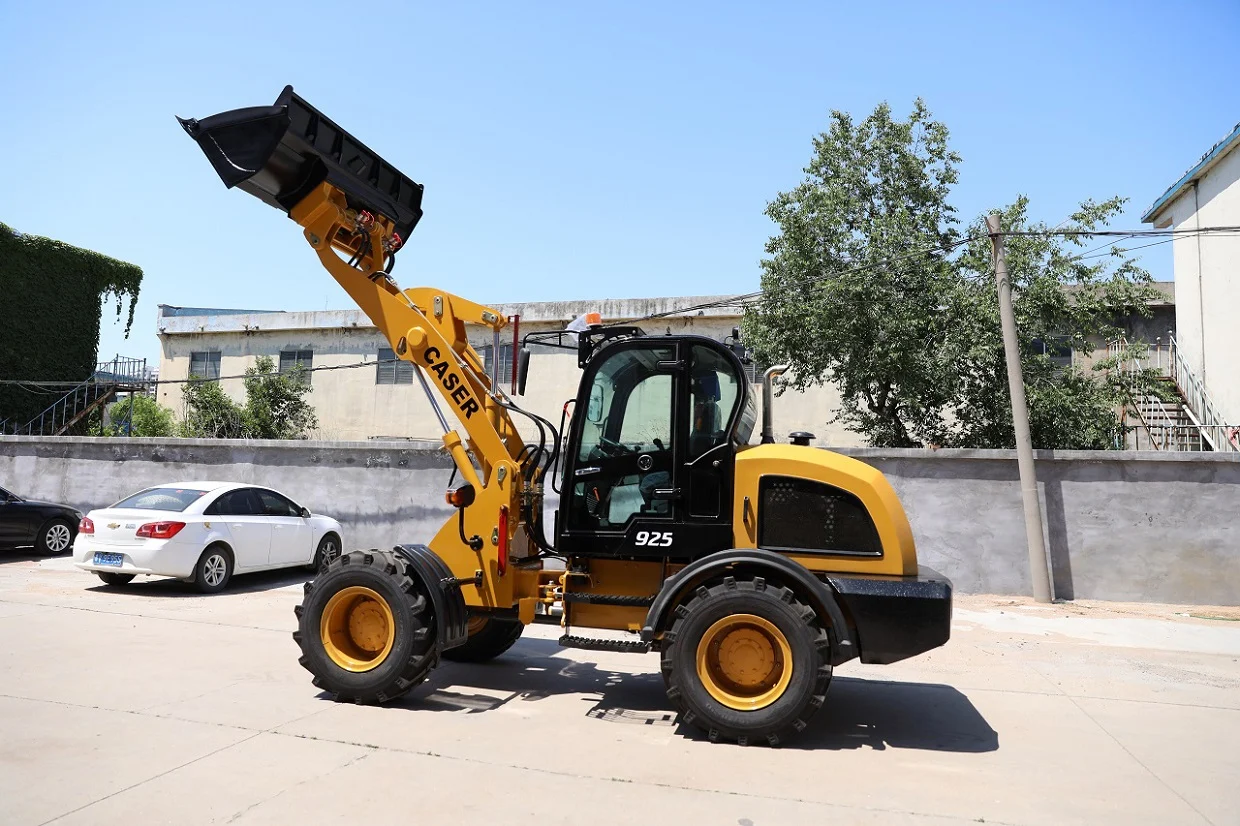

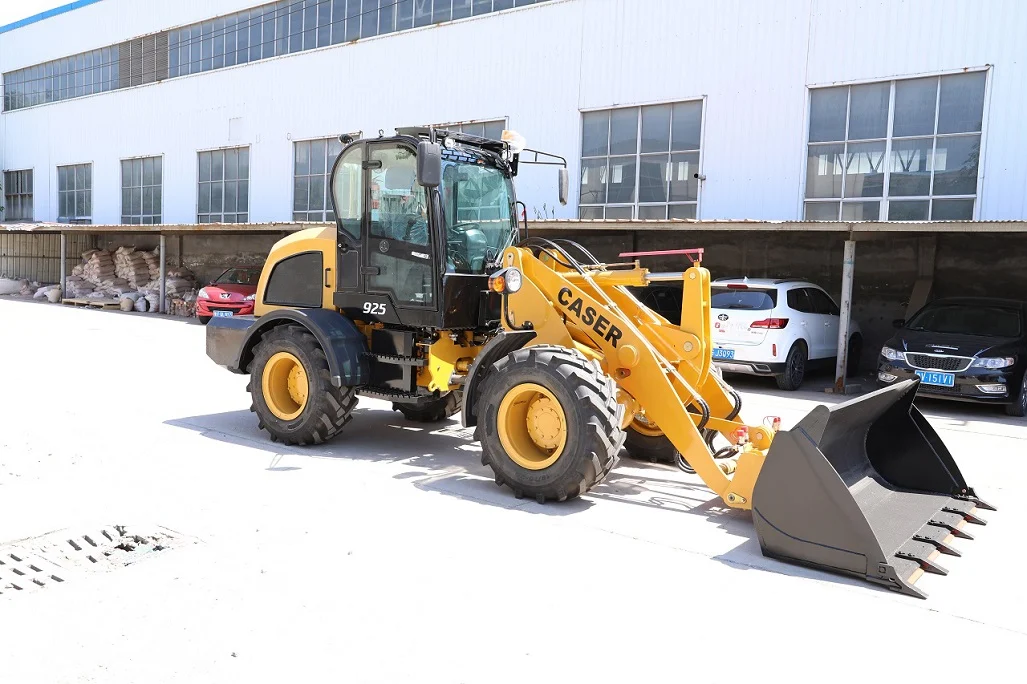

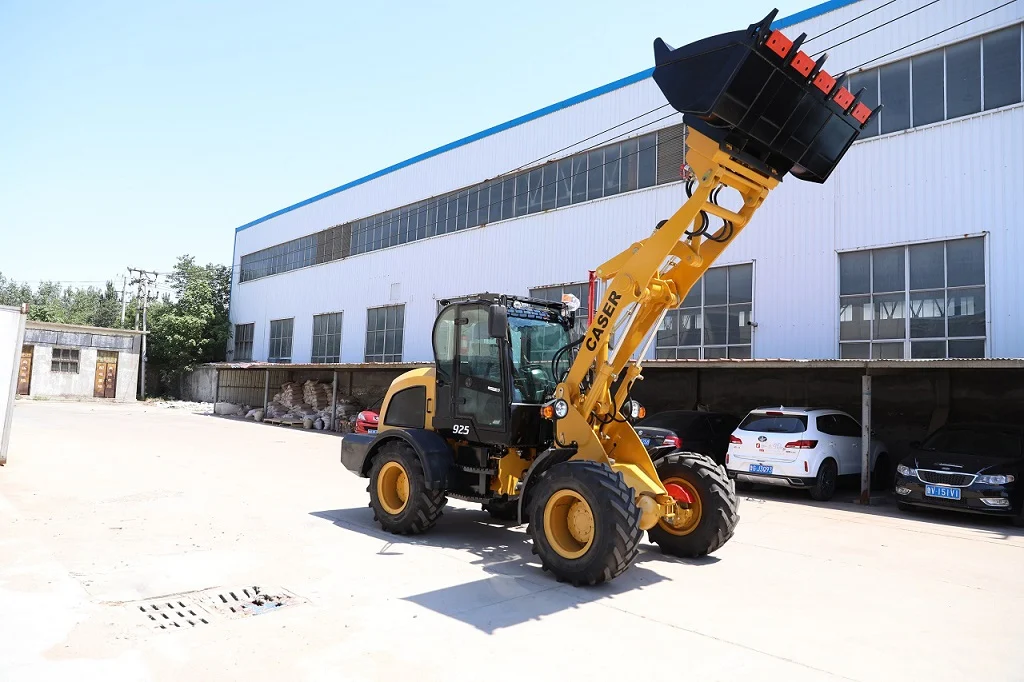

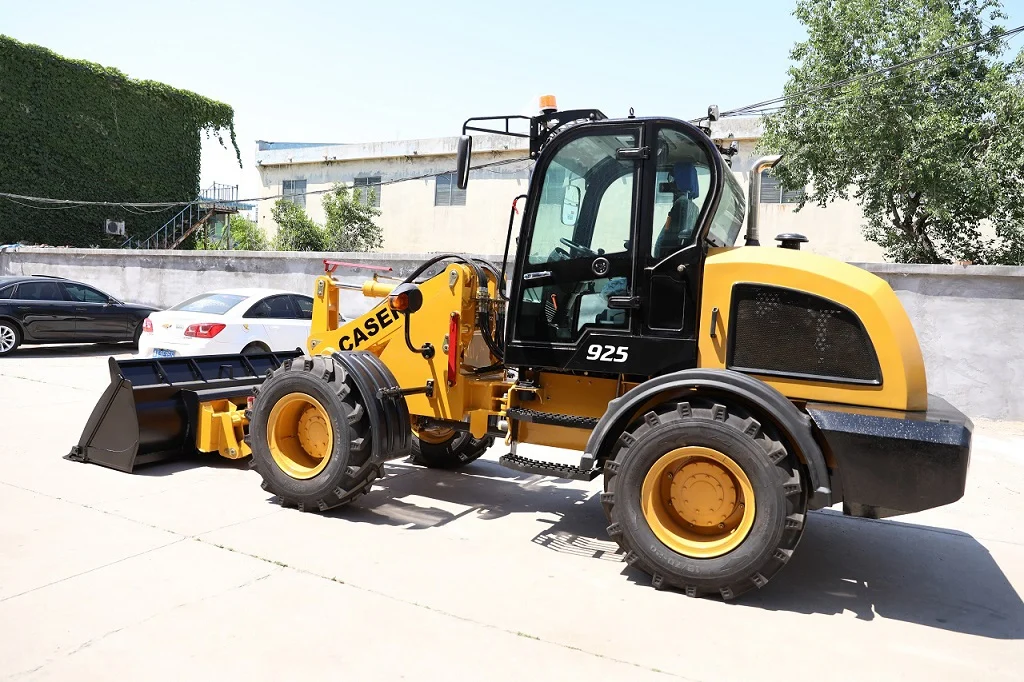

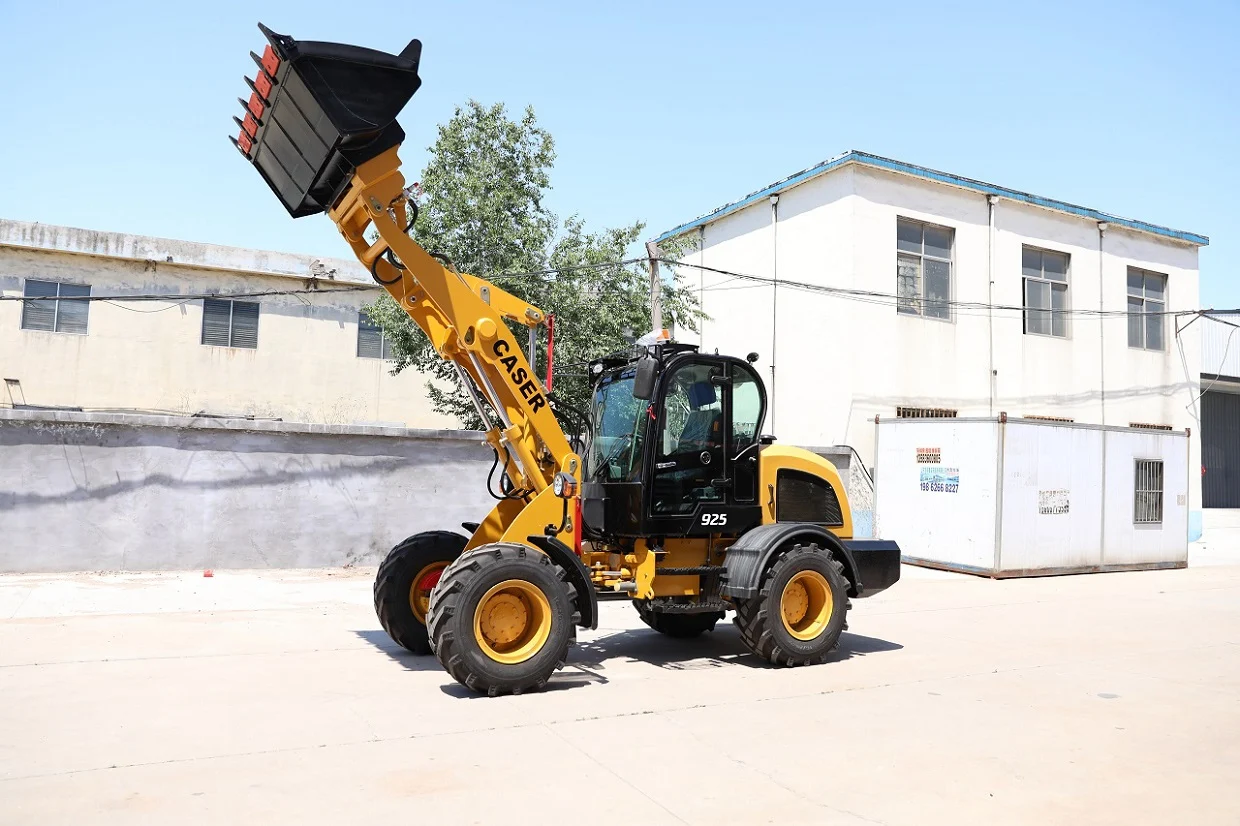

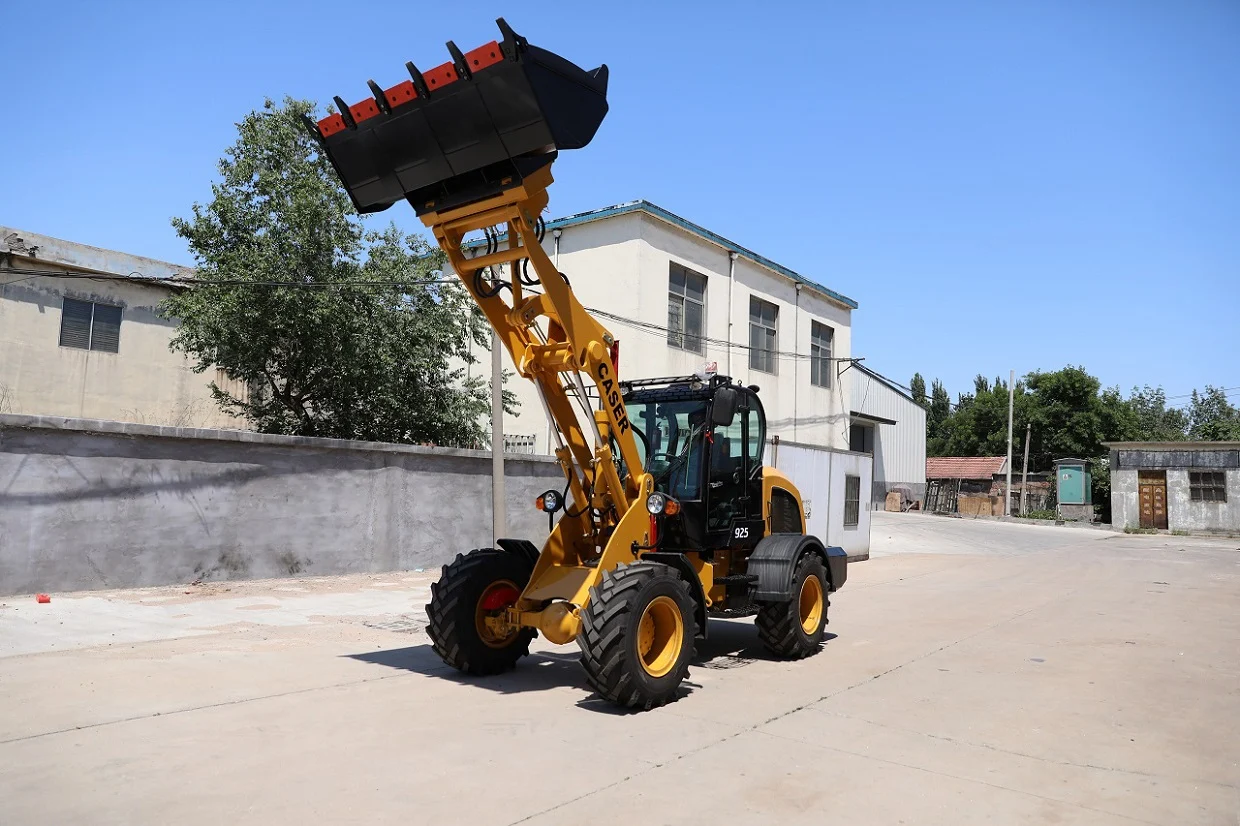

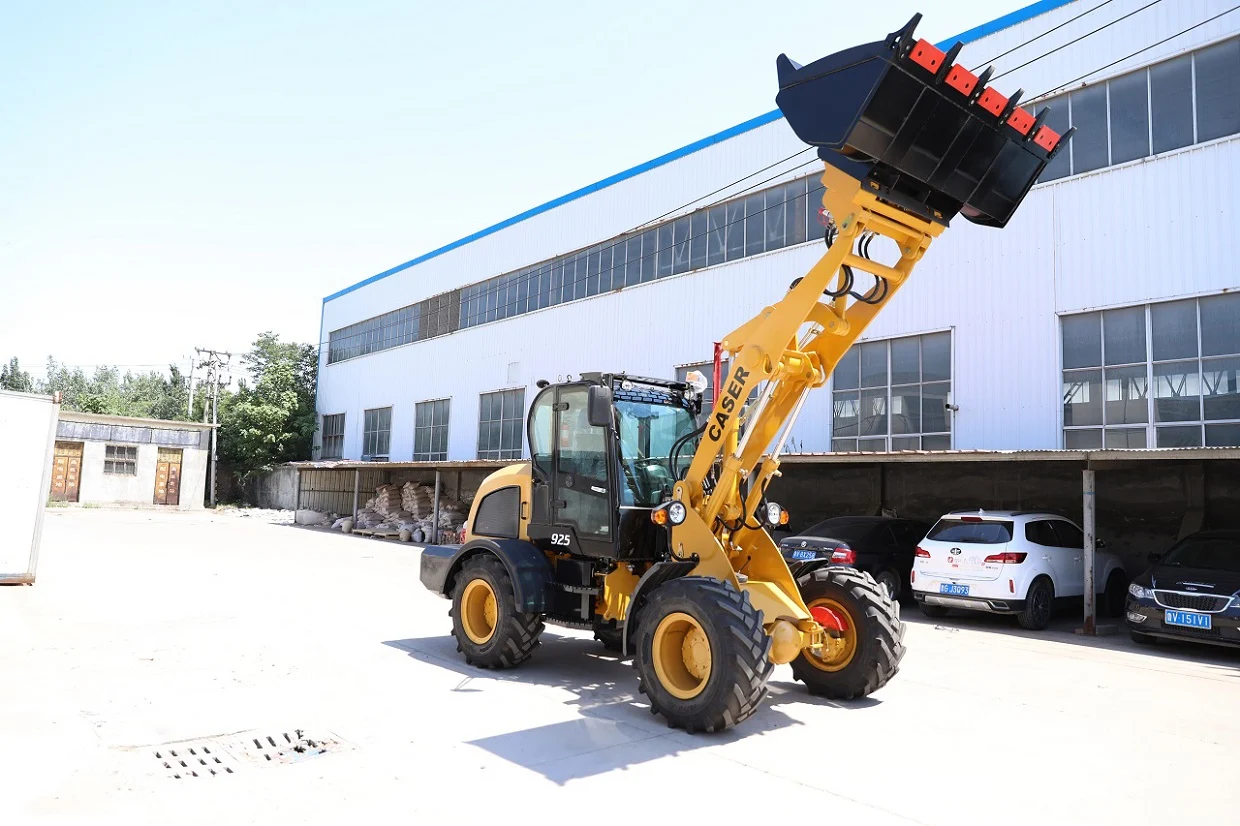

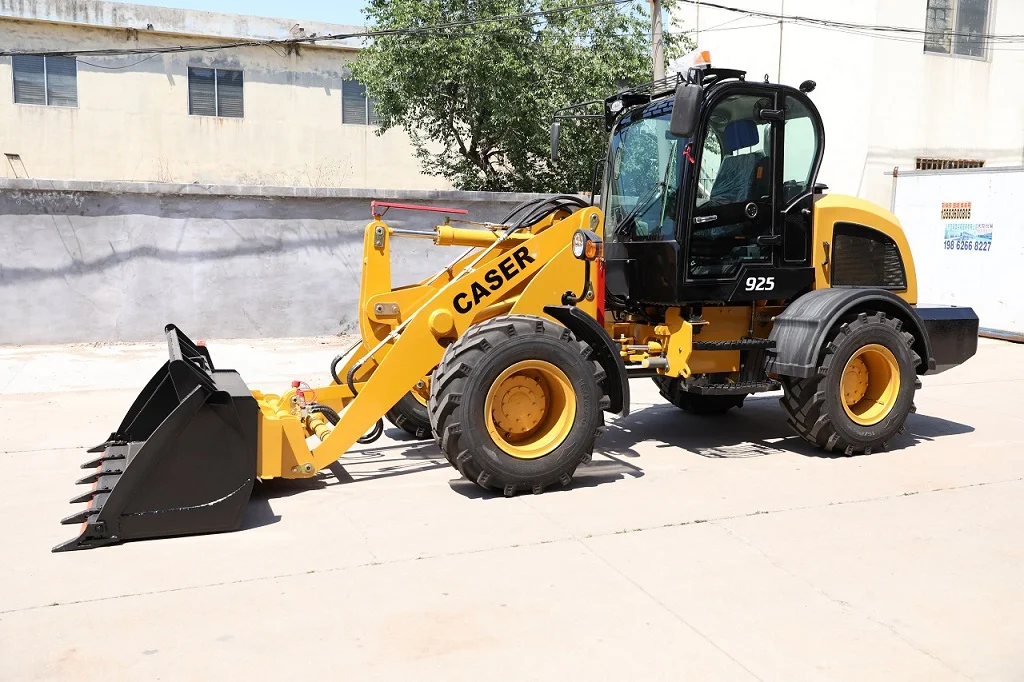

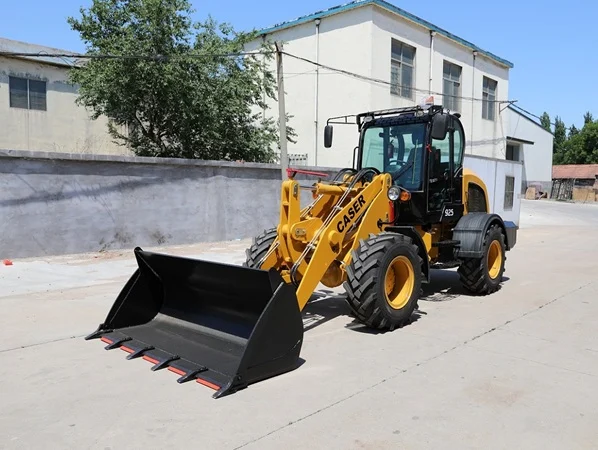

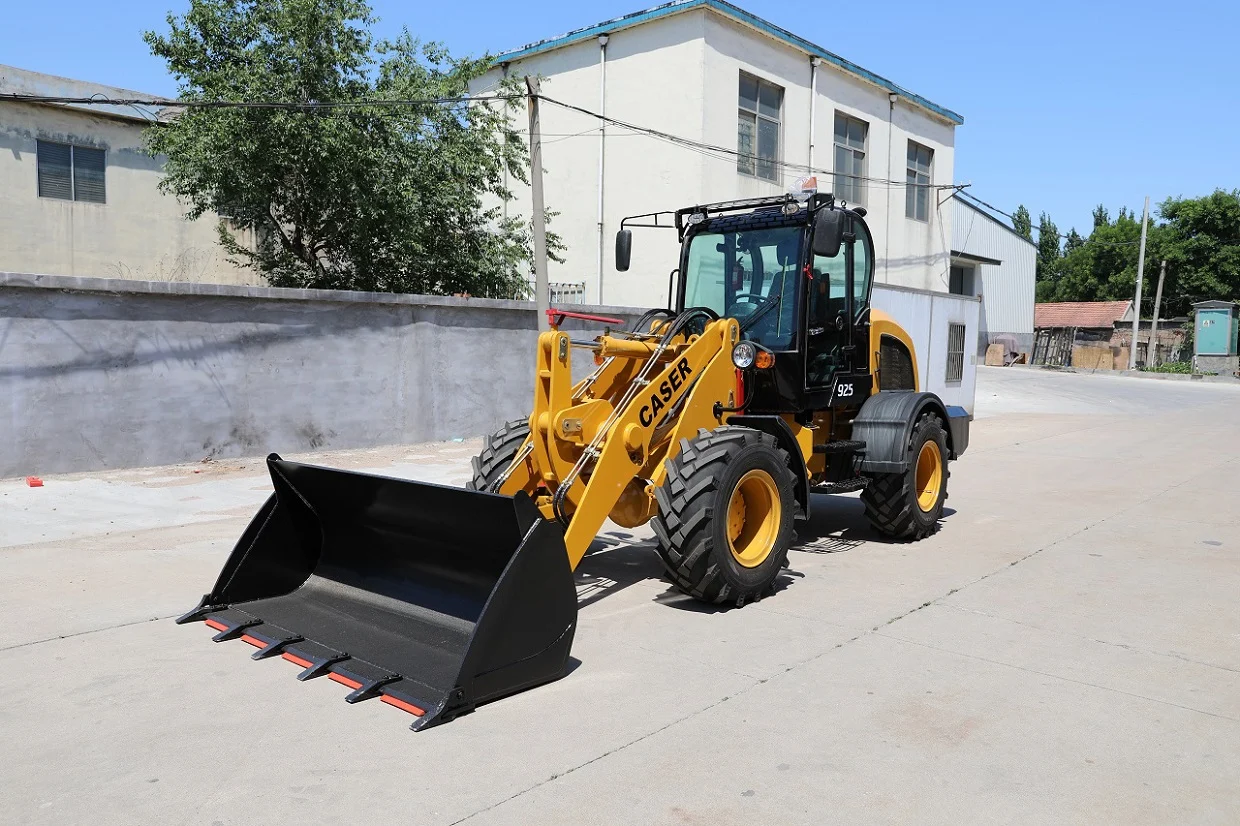

CASER 925 Wheel Loader is a 2.5 ton loading capacity wheel loader, with the following features:
- Articulated Frames, makes the loader a stronger and a better working machine2
- Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.
- New Cabin design.
- Axles with Disk brake, and Differential Gear Function
- Joystick Control, makes the loading system easier to operate.
- 4 X 4 Wheel Drive
- LED Lights, much brighter and much longer life time, than the regular halogen lights.
- Quality Hydraulic pump, valves, and oil hoses, makes the owner not warrying about the hydraulic system.
- Backup Camera, is a good safety feature to have.
- Different Engine Options can choose from.
MAIN SPECS
LOADING CAPACITY: 2500KG
SELF WEIGHT: 5400KG
ENGINE POWER: 70KW (95hp)

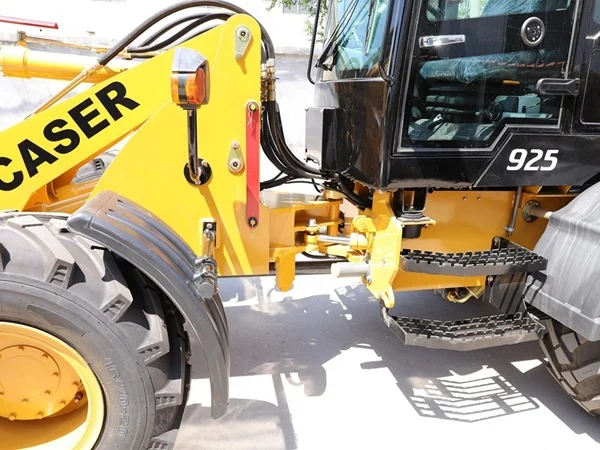

1) Articulated Frames, makes the loader a stronger and a better working machine
2) Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.
3) New Cabin design.
4) Axles with Disk brake, and Differential Gear Function

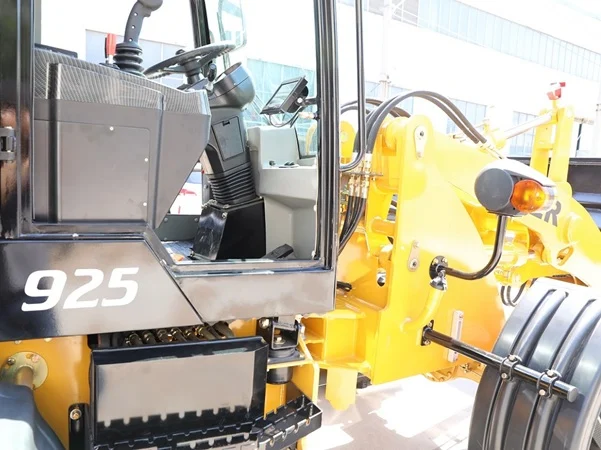

5) New Designed Cabin Interior View, with Joystick Control, makes the loading system easier to operate, Adjustable steering wheel.
6) 4 X 4 Wheel Drive

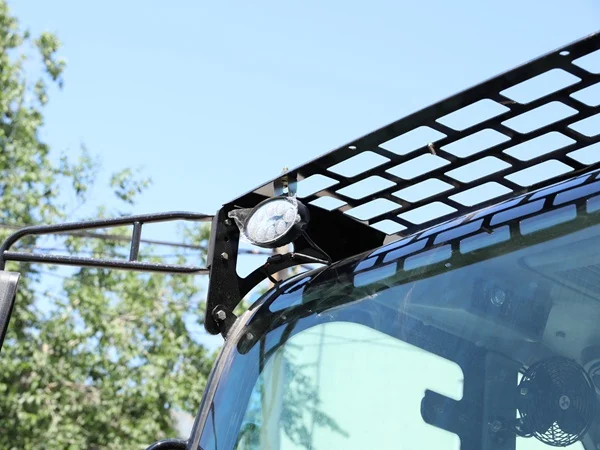

7) LED Lights, much brighter and much longer life time, than the regular halogen lights.
8) Quality Hydraulic pump, valves, and oil hoses, makes the owner not warrying about the hydraulic system.

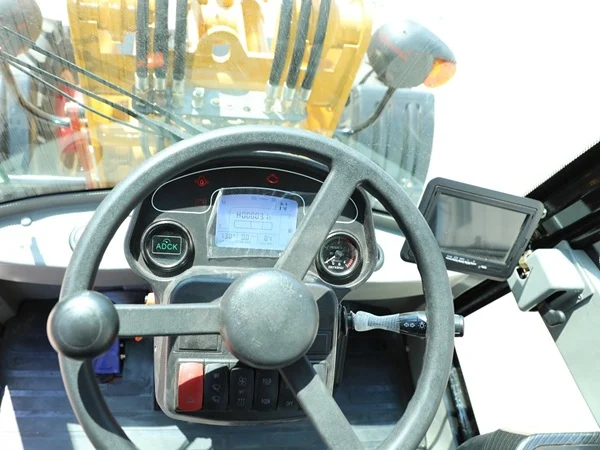

9) Backup Camera, providing better and safer operating feature, and digital dashboard.

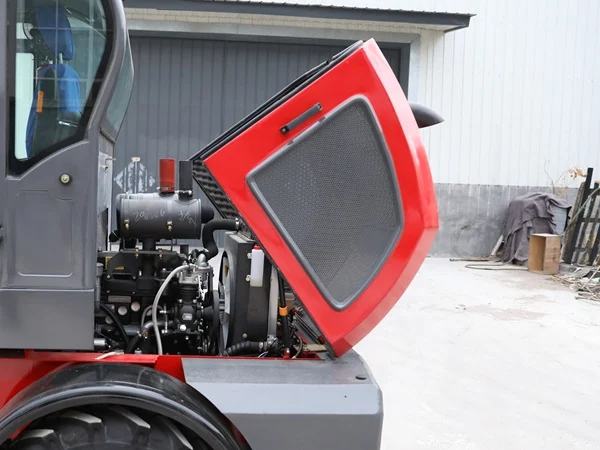

10) Widely Opened Rear Engine Hood, providing ease of engine maintenance, and Different Engine Options can choose from.
11) Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| WHEEL LOADER CASER 925 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 2500kg |
| Overall Weight | 5400kg | |
| Bucket capacity | 1.2 cbm | |
| Bucket width | 2100mm | |
| L x W x H | 6000 x 2100 x 2580mm | |
| Dumping Height: | 2800mm | |
| Max Tractive Force | 37.75kn | |
| Wheelbase | 2300mm | |
| Track Base | 1500mm | |
| Standard Engine | Make & Model: | CHANGCHAI 4G33 / 70KW (95hp) |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 70kw (95hp) @2400rpm | |
| Engine Option #1 | Make & Model: | Dongfeng Cummins 4BT3.9-C100 |
| Engine type: | 4 Cylinder Turbo Diesel 3.9L Engine | |
| Rated Power: | 75kw(100HP) @ 2400rpm | |
| Engine Option #2 | Make & Model: | KOHLER EPA Tier 4 Final |
| Engine type: | 4 Cylinder Turbo Diesel Engine | |
| Rated Power: | 55kw(74hp) @ 2500rpm | |
| Transmission system | Type | Full Hydraulic Power Shift |
| Gear Numbers: | 2 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2500 (rpm) | |
| Operating Specifications | Drive Means: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 4640mm | |
| Time of raise: | 4.8sec. | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Service Brake: | Air over Hydraulic Disk Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 16/70-20 | |
