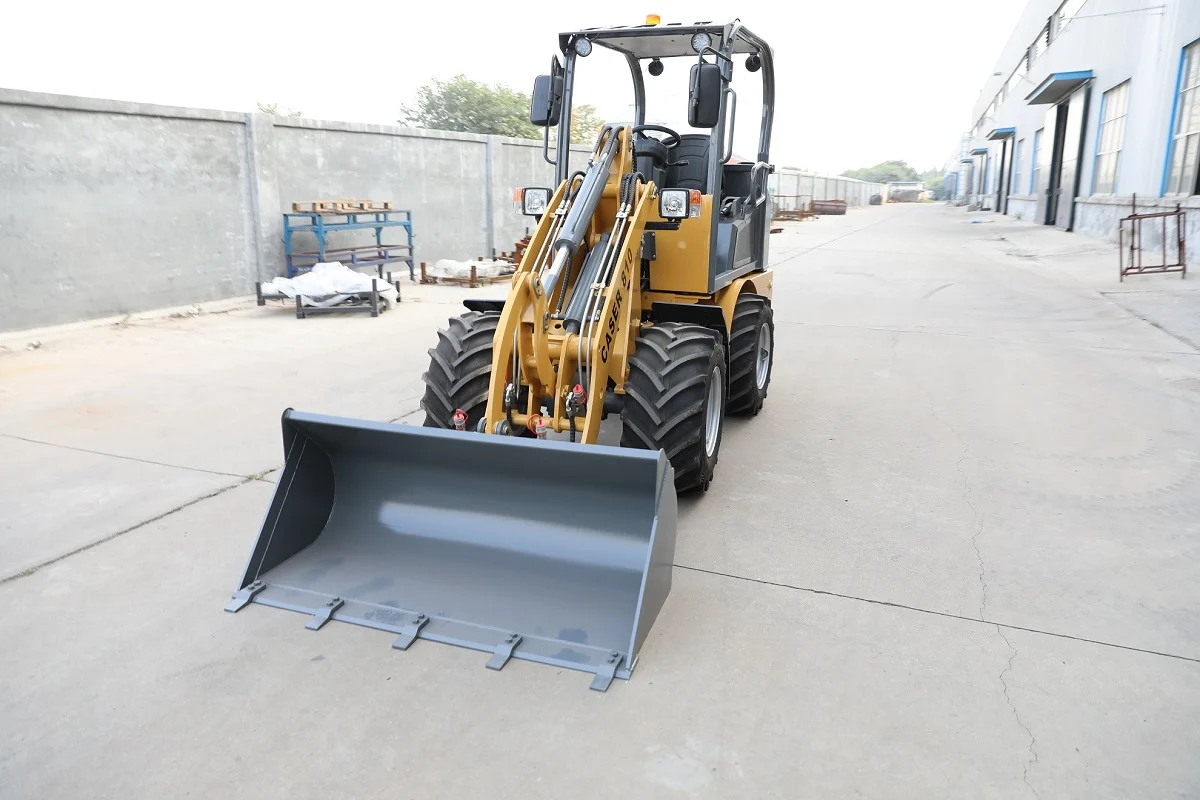

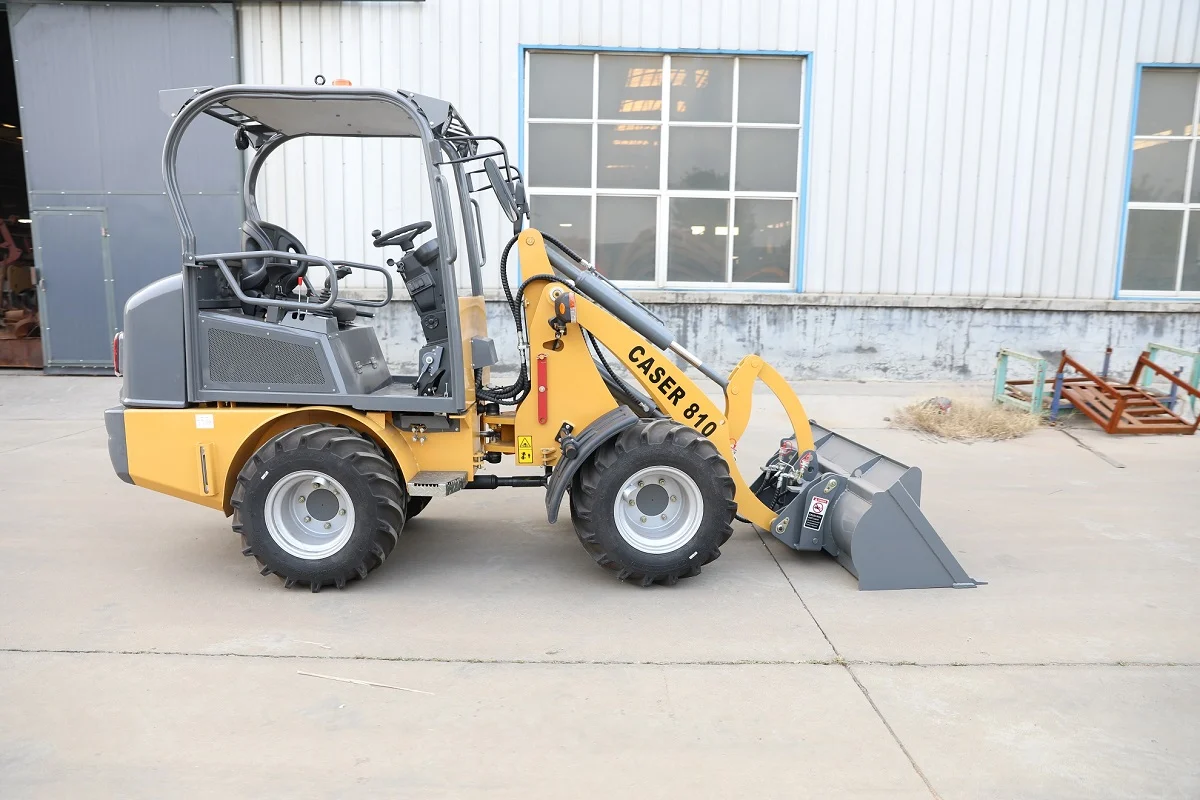

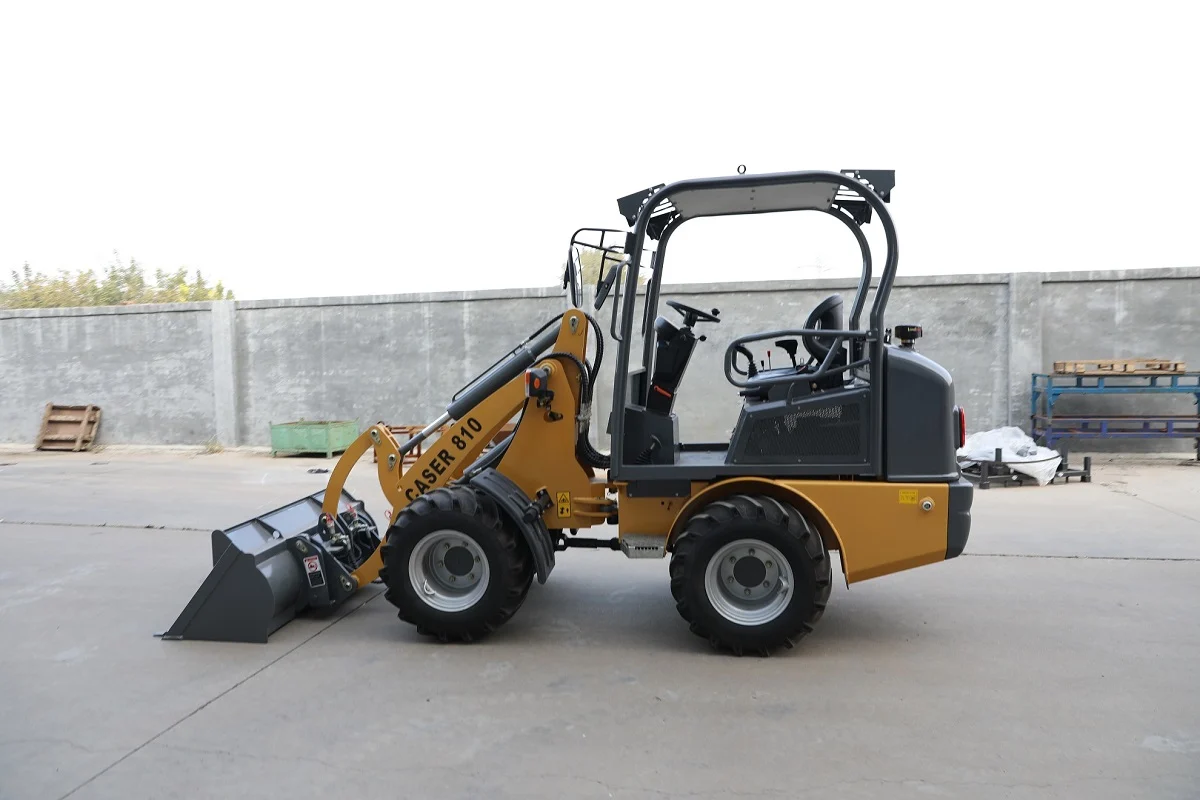

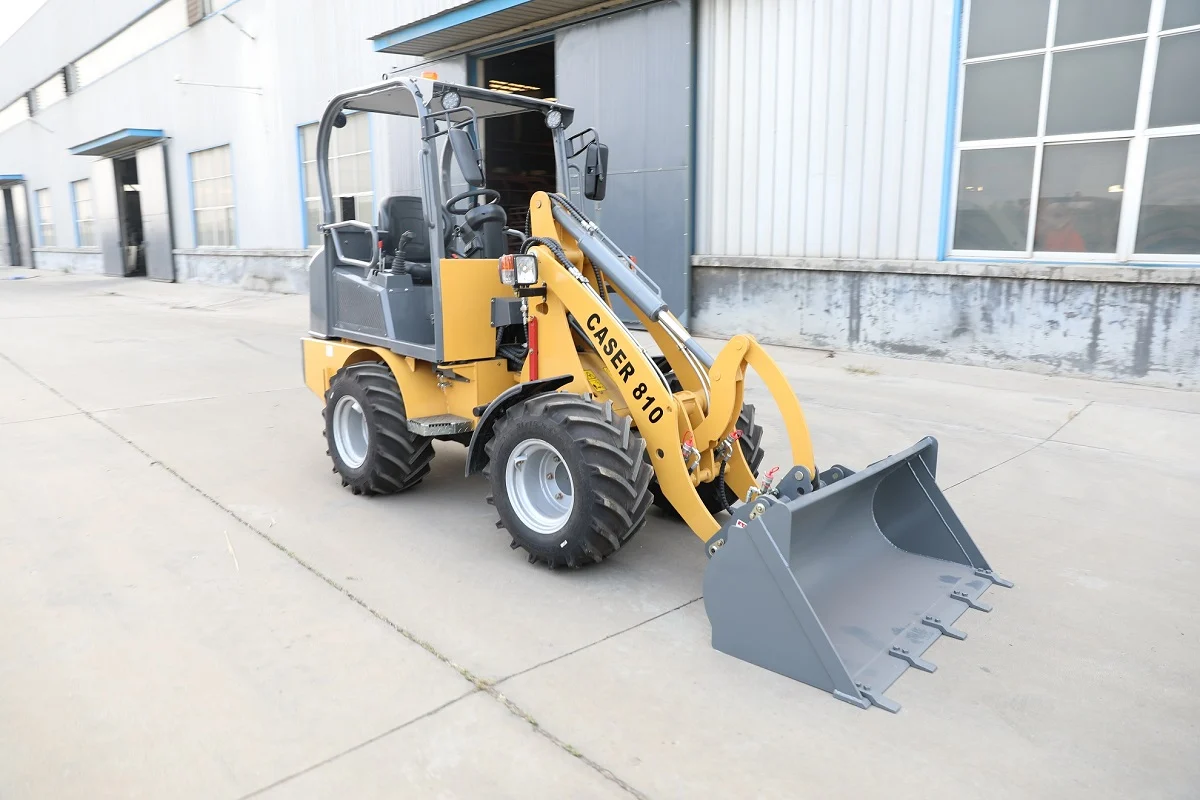

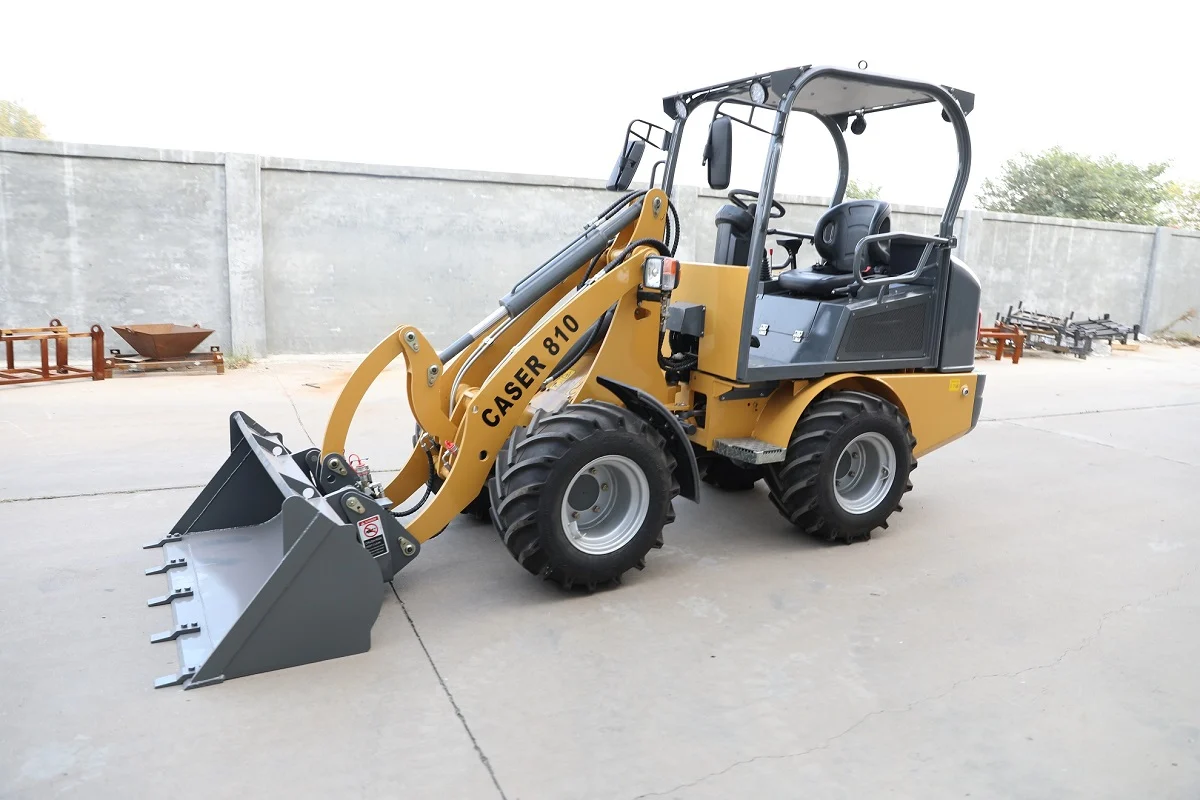

Wheel Loader 810
CASER 810 Wheel Loader is a 1 ton loading capacity wheel loader, with the following features:
1. Engine: Kubota 18.2kW, Euro V and EPA4
2. Drive Train: Italian hydrostatic transmission system, Reliable and work efficient.
3. Min Turning Radius 2805mm, with narrow design: Short Turning Radius, makes the loader perfectly working in small areas.
4. Electric Gear Control on Joystick: handy for operator.
5. Modern, and up-to-date type of Articulated Frame Design.
6. Better painting, using the latest powder painting technology.

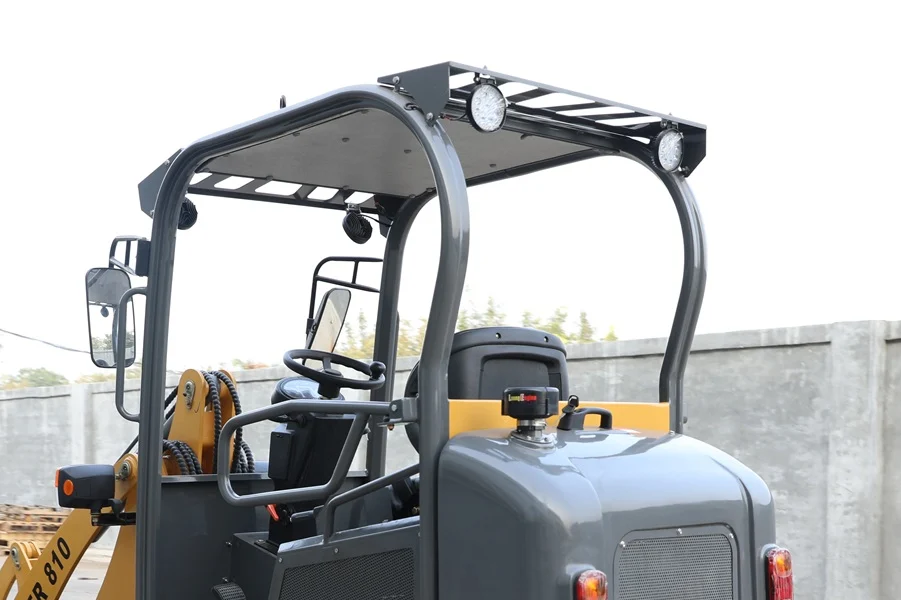

7. LED lights.
8. Easy and fully openable engine hood.

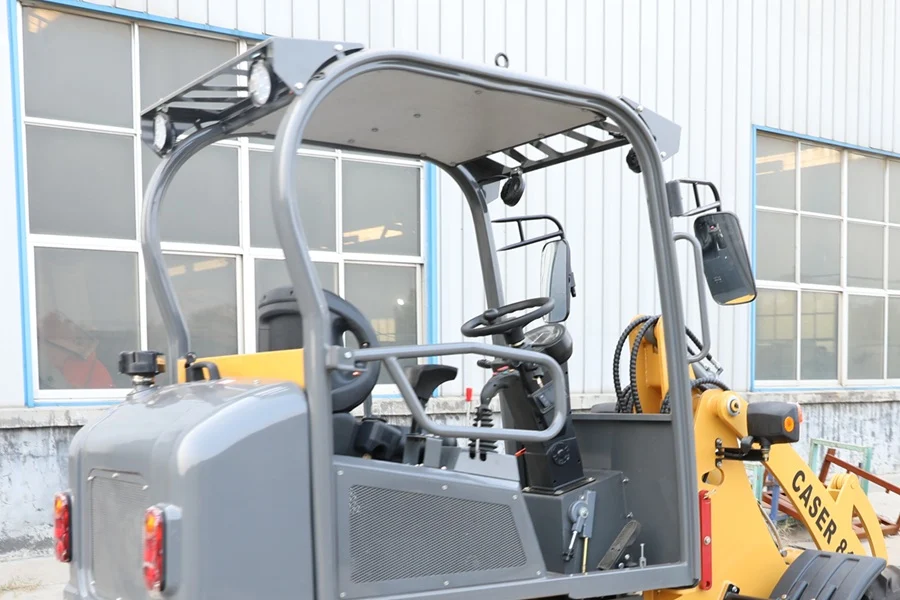

9. ROPS protection Canopy
10. A wide range of Attachments available: makes a single machine into a multiple usage machine
MAIN SPECS
LOADING CAPACITY: 1000KG
SELF WEIGHT: 2300KG
ENGINE POWER: 18.2kW (25hp)
1. Engine: Kubota 18.2kW, Euro V and EPA4
2. Drive Train: Italian hydrostatic transmission system, Reliable and work efficient.
3. Min Turning Radius 2805mm, with narrow design: Short Turning Radius, makes the loader perfectly working in small areas.
4. Electric Gear Control on Joystick: handy for operator.
5. Modern, and up-to-date type of Articulated Frame Design.
6. Better painting, using the latest powder painting technology.
7. LED lights.
8. Easy and fully openable engine hood.
9. ROPS protection Canopy
10. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| WHEEL LOADER CASER 810 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 1000kg |
| Overall Weight | 2300kg | |
| Bucket capacity | 0.6 cbm | |
| Bucket width | 1500mm | |
| L x W x H | 4036 x 1446 x 2260mm | |
| Dumping Height: | 1980mm | |
| Wheelbase | 1100mm | |
| Standard Engine | Make & Model: | Kubota, 18.2kW@2200rpm (25hp) Euro 5, EPA4 |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 18.2kW@2200rpm (25hp) | |
| Transmission system | Type | Italy Hydro-Static Driving System |
| Gear Numbers: | 2 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2200 (rpm) | |
| Operating Specifications | Drive Train: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 2805mm | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Service Brake: | Hydraulic Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 31 x 15.5 - 15 | |
