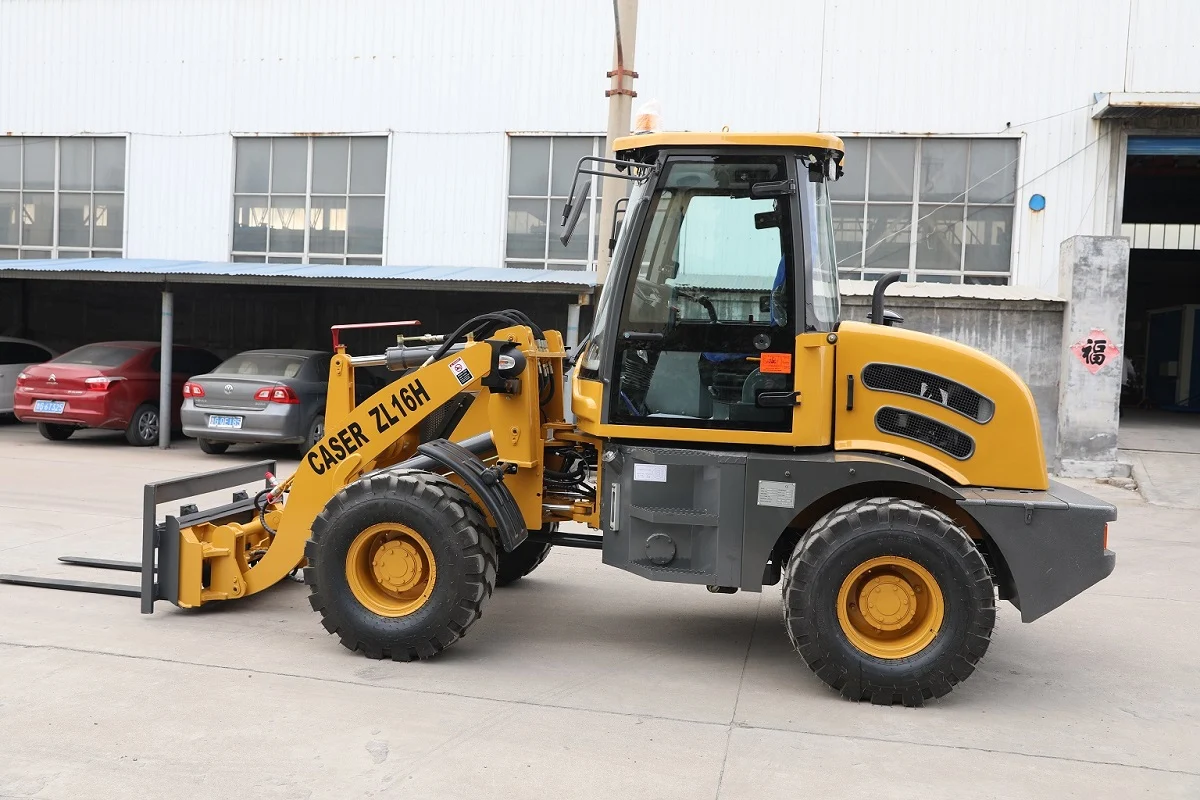

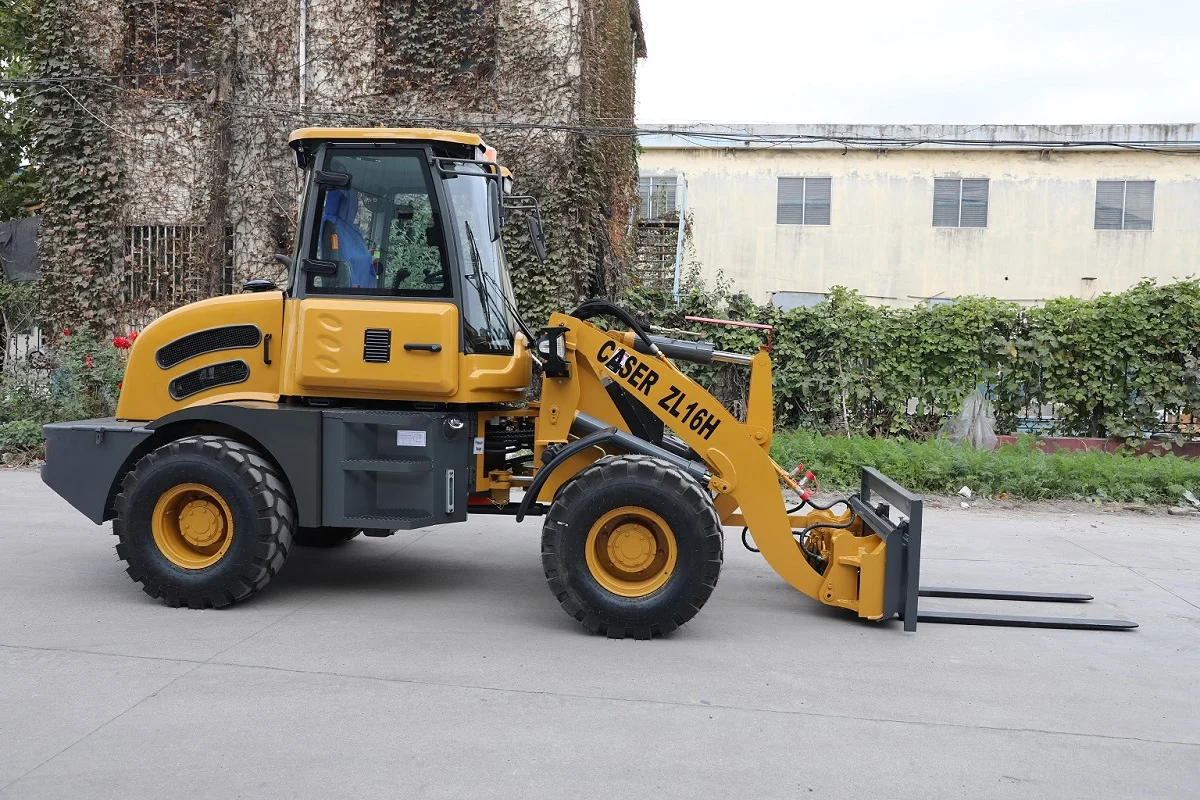

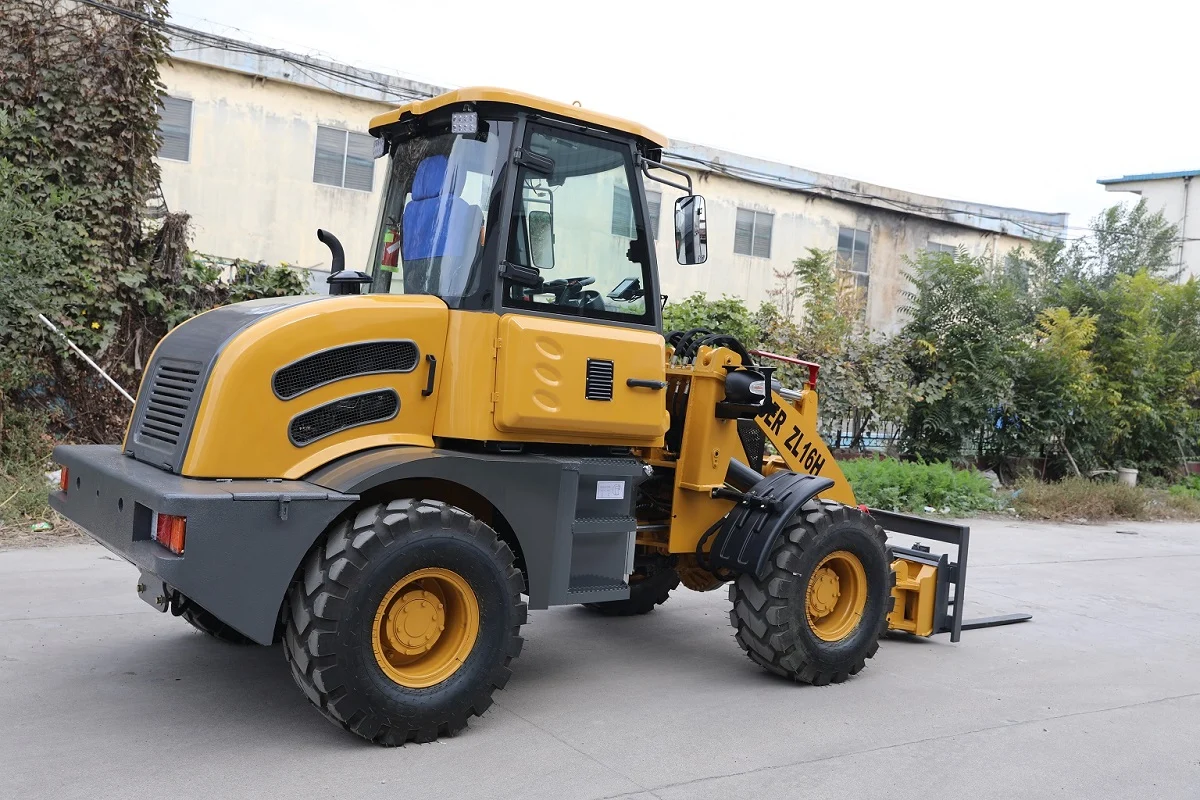

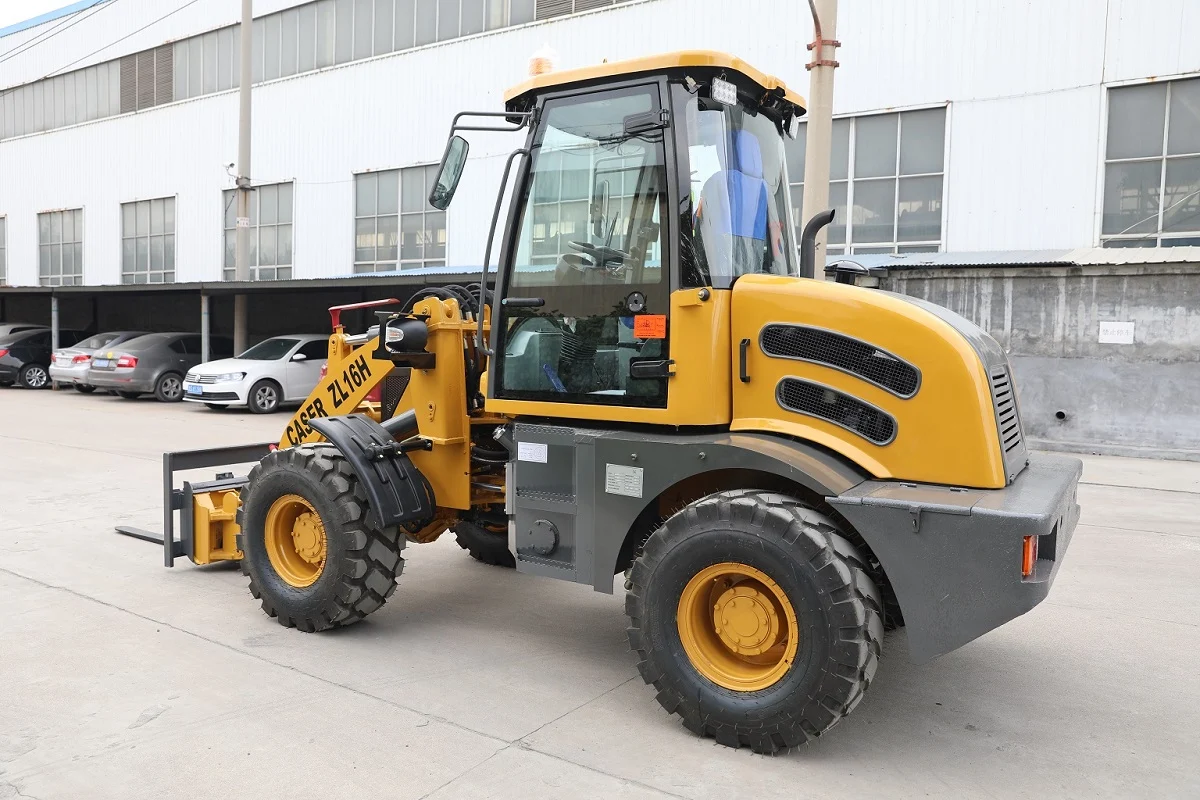

Wheel Loader ZL16H
1.6 TON LOADING CAPACITY WHEEL LOADER:
1. Articulated Frames.
2. Fully hydraulic power shift Transmission, and Torque Convertor.
3. Axle with Disk brakes, and Differential Gear Function.
4. Joystick Control.
5. 4 X 4 Wheel Drive.
6. LED Lights.
7. Digital Dashboard, Operator can monitoring main parts data.
8. Backup Camera.
9. Different Engine Options can choose from.
10. Fully openable engine hood.
11. Complete Cabin with Heater.
MAIN SPECS
LOADING CAPACITY: 1600KG
SELF WEIGHT: 3900KG
ENGINE POWER: 36.8kW (50hp)
1. Articulated Frames, makes the loader a stronger and a better working machine.
2. Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.

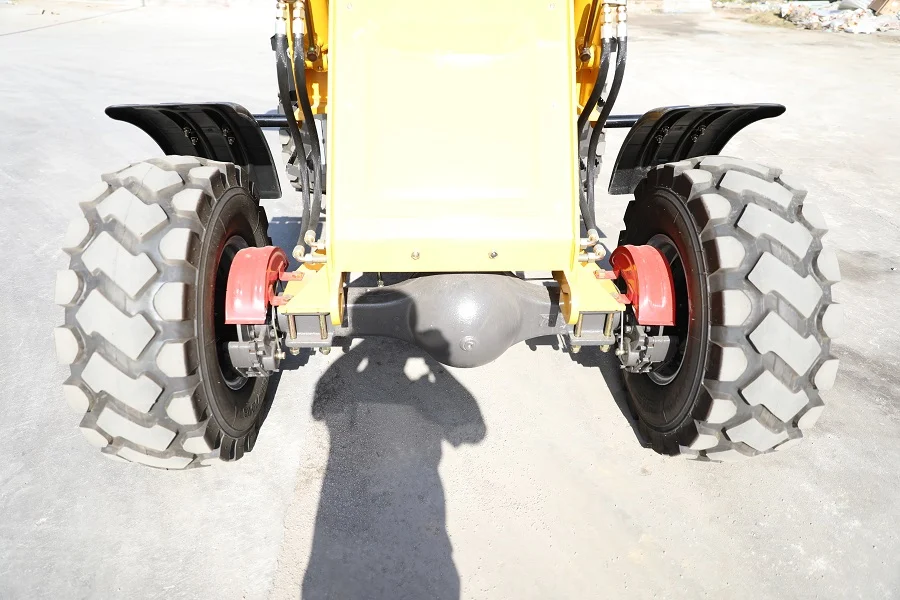

3. Axle with Disk brakes, and Differential Gear Function.

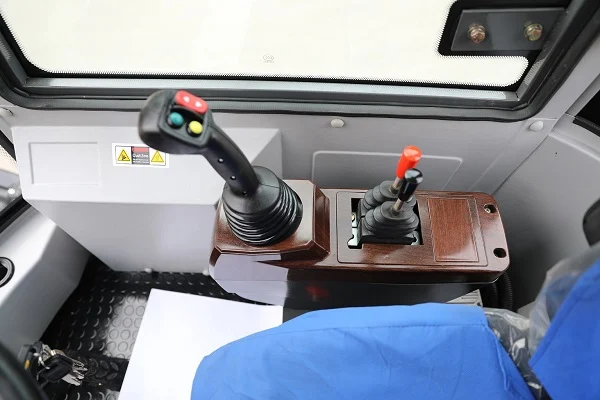

4. Joystick Control, makes the loading system easier to operate.
5. 4 X 4 Wheel Drive
6. LED Lights, much brighter and much longer life time, than the regular halogen lights.
7. Digital Dashboard, Operator can monitoring main parts data.

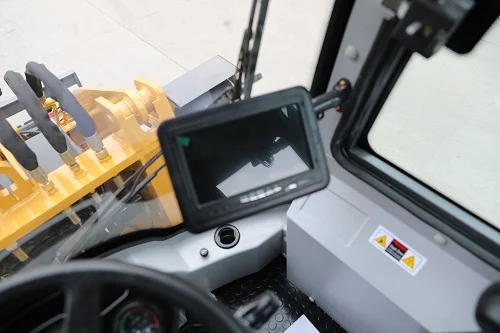

8. Backup Camera, is a good safety feature to have.
9. Different Engine Options can choose from (Standard is Xinchai498, Euro 3) and optional of YN Euro 5, or Kohler EPA 4 engine.
10. Fully openable engine hood. Makes maintenance much easier.
11. Complete Cabin with Heater.

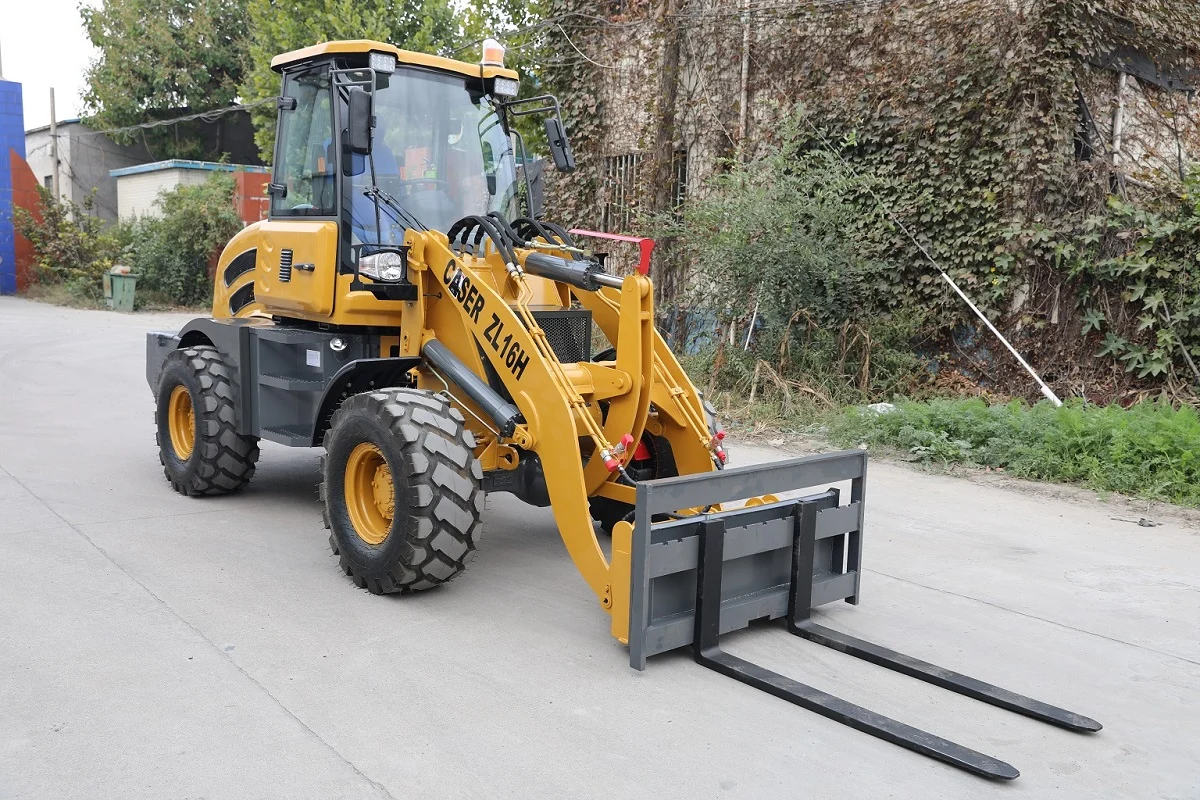

12. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| WHEEL LOADER CASER ZL16H | ||
|---|---|---|
| Overall Dimensions | Rated Load | 1600kg |
| Overall Weight | 3900kg | |
| Bucket capacity | 0.86 cbm | |
| Bucket width | 1950mm | |
| L x W x H | 4850x 1830 x 2450mm | |
| Dumping Height: | 2180mm | |
| Wheelbase | 2040mm | |
| Standard Engine | Make & Model: | Xinchai 498 |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 36.8kW@2400rpm (50hp) | |
| Transmission system | Type | FULL HYDRAULIC |
| Gear Numbers: | 2 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2200 (rpm) | |
| Operating Specifications | Drive Train: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 3890mm | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Service Brake: | Hydraulic Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 20.5/70-16 | |
