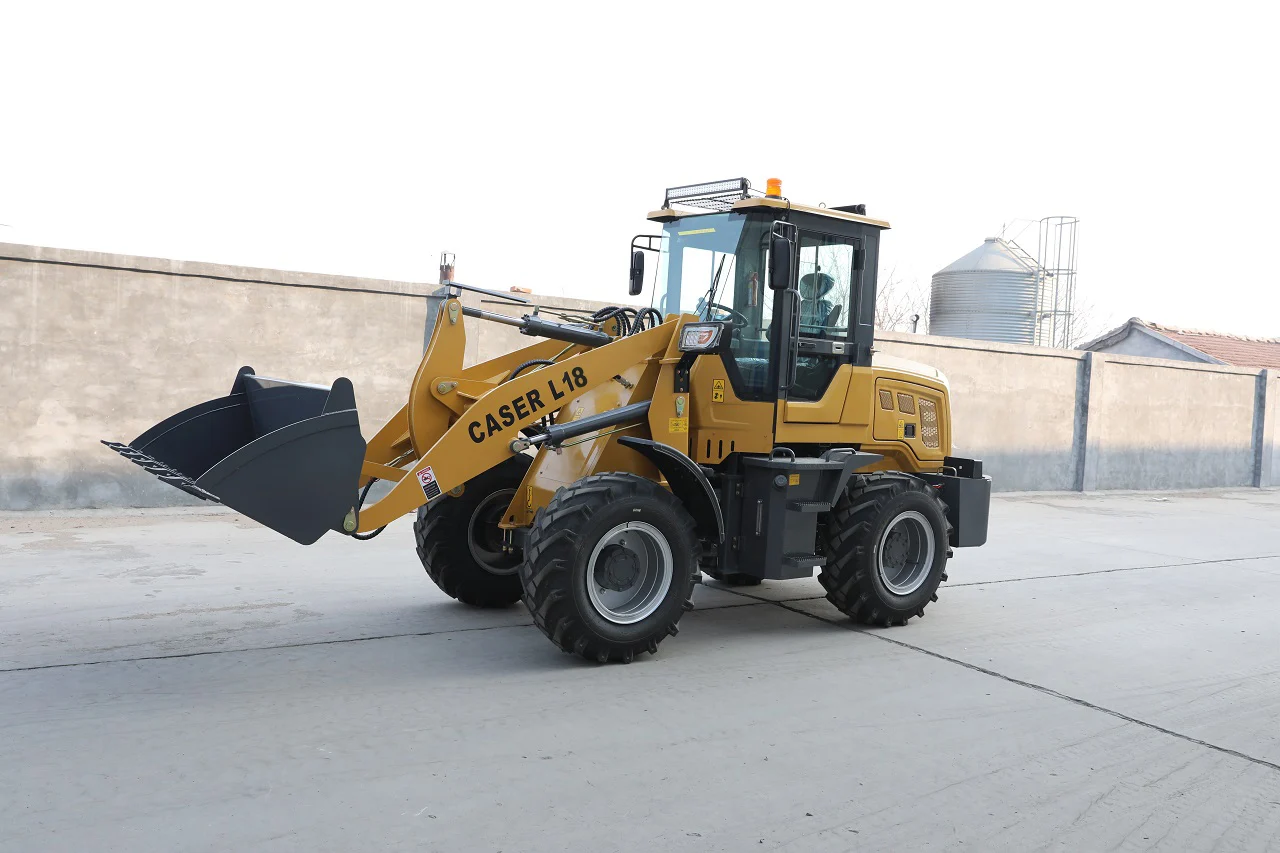

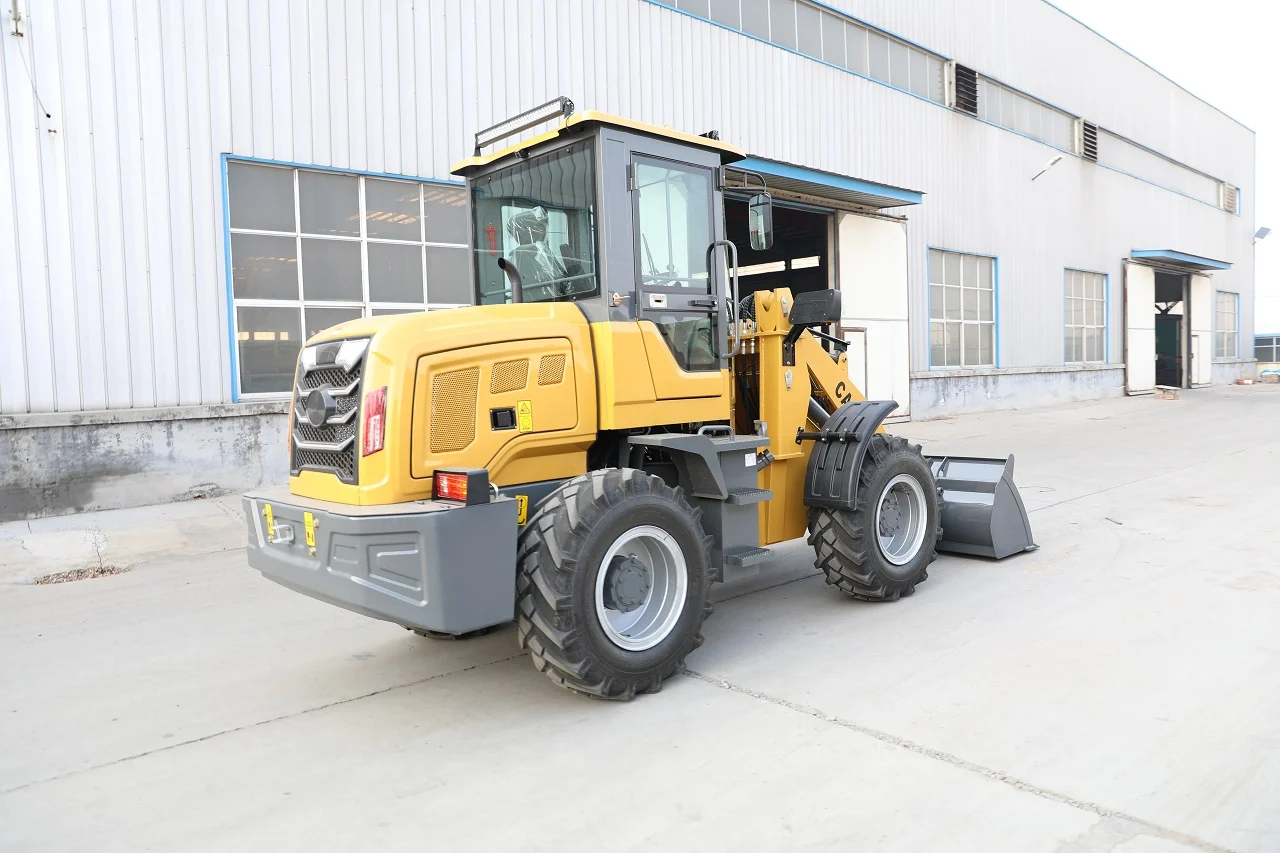

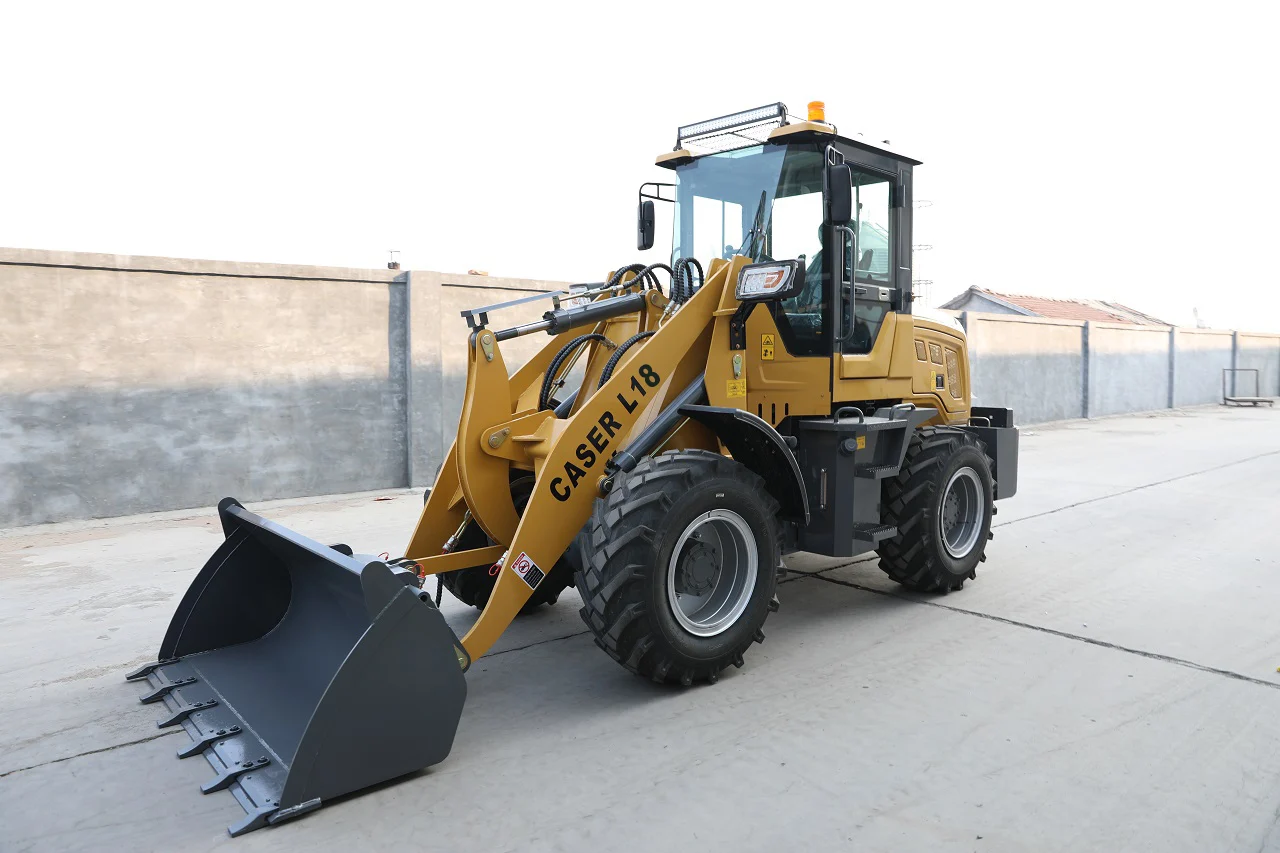

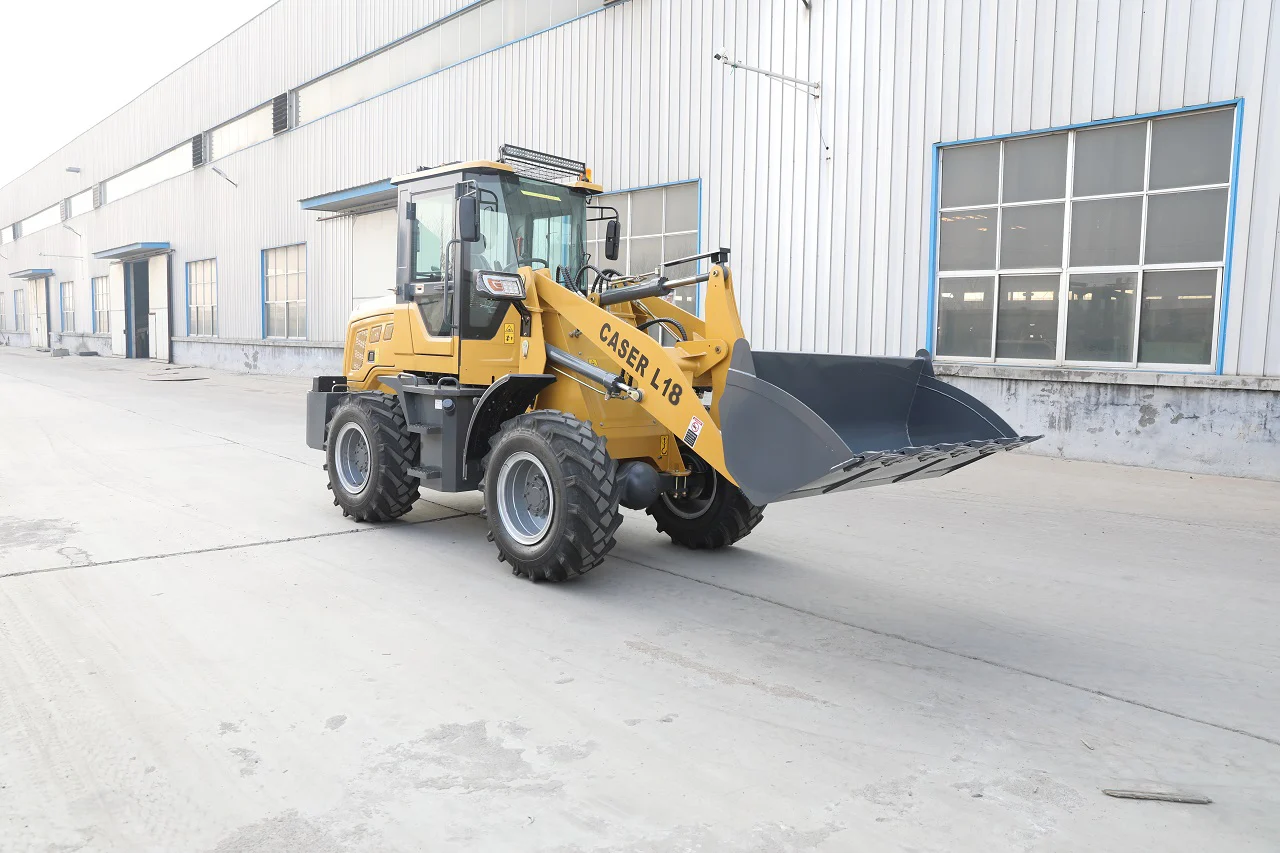

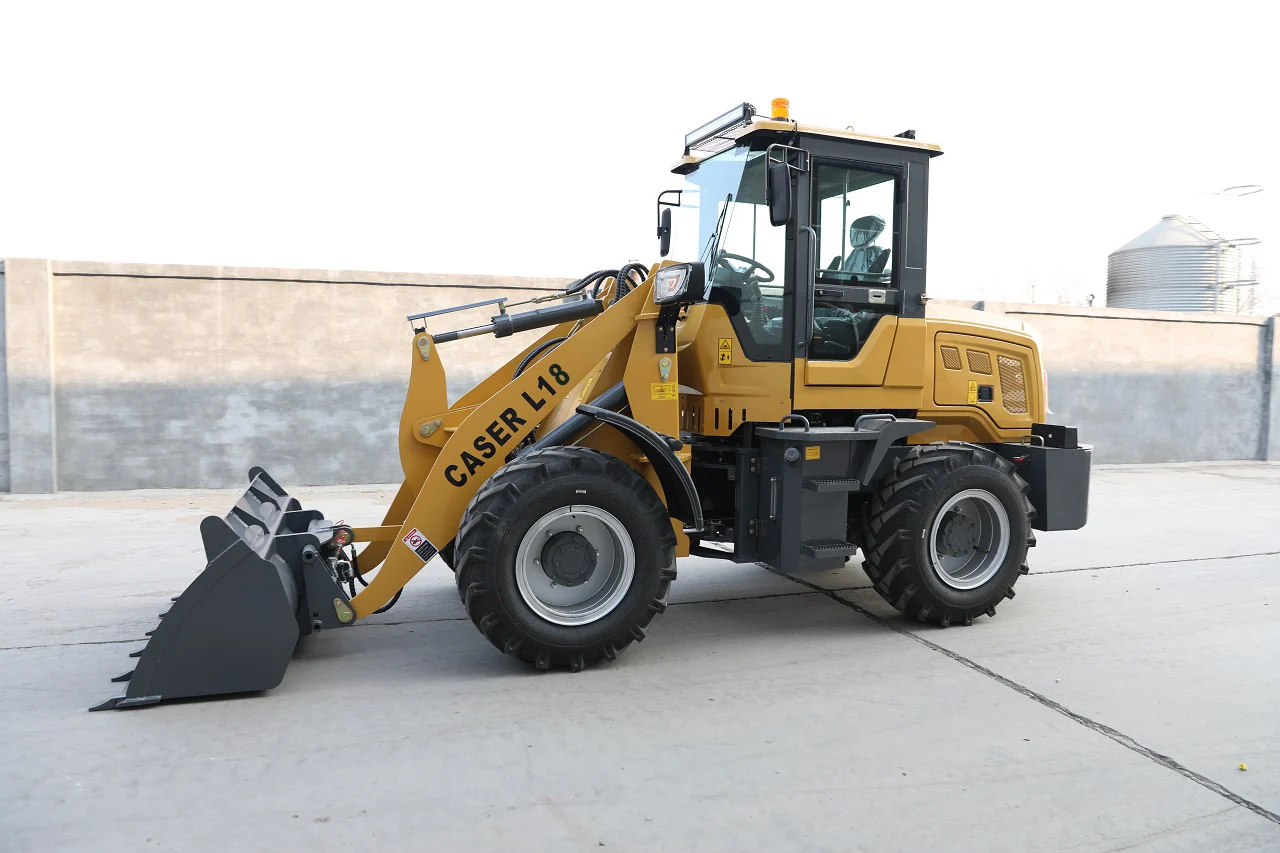

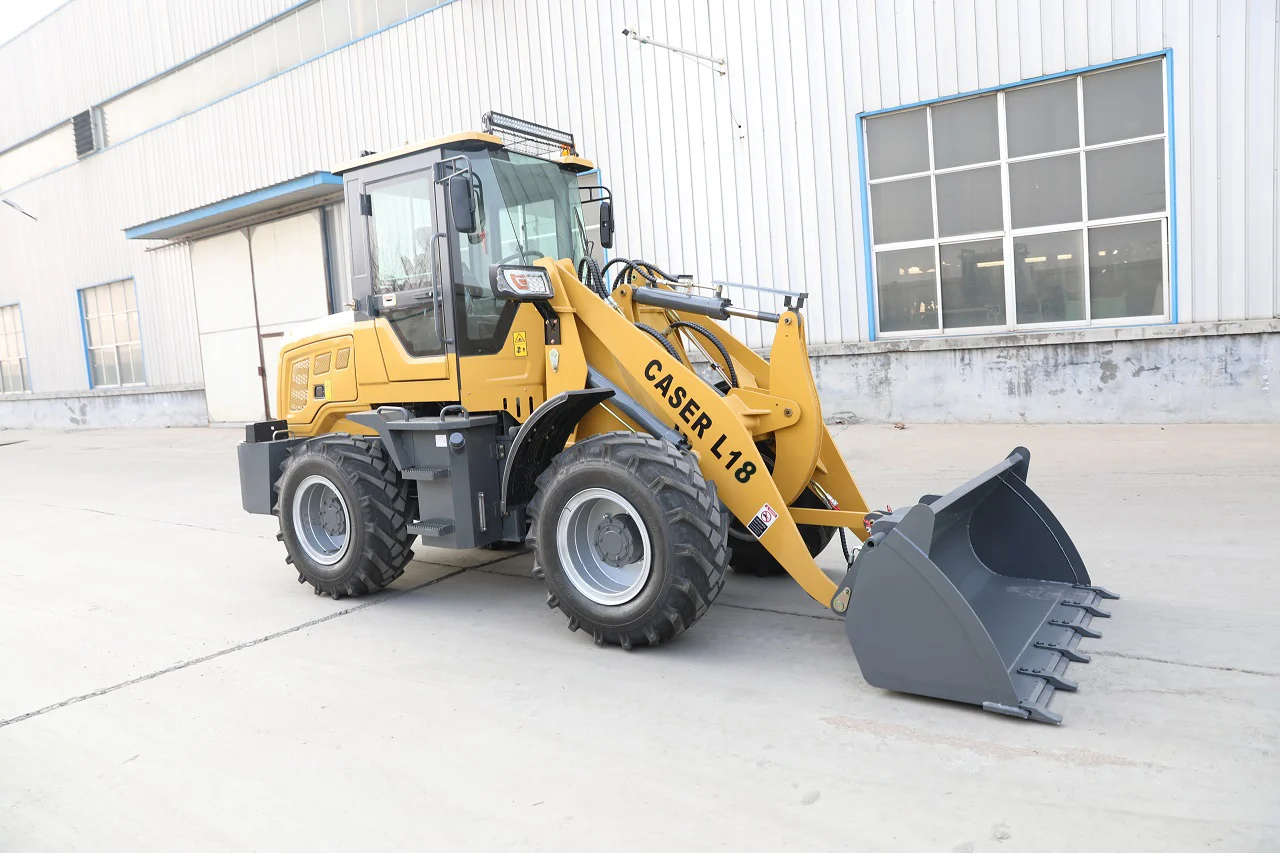

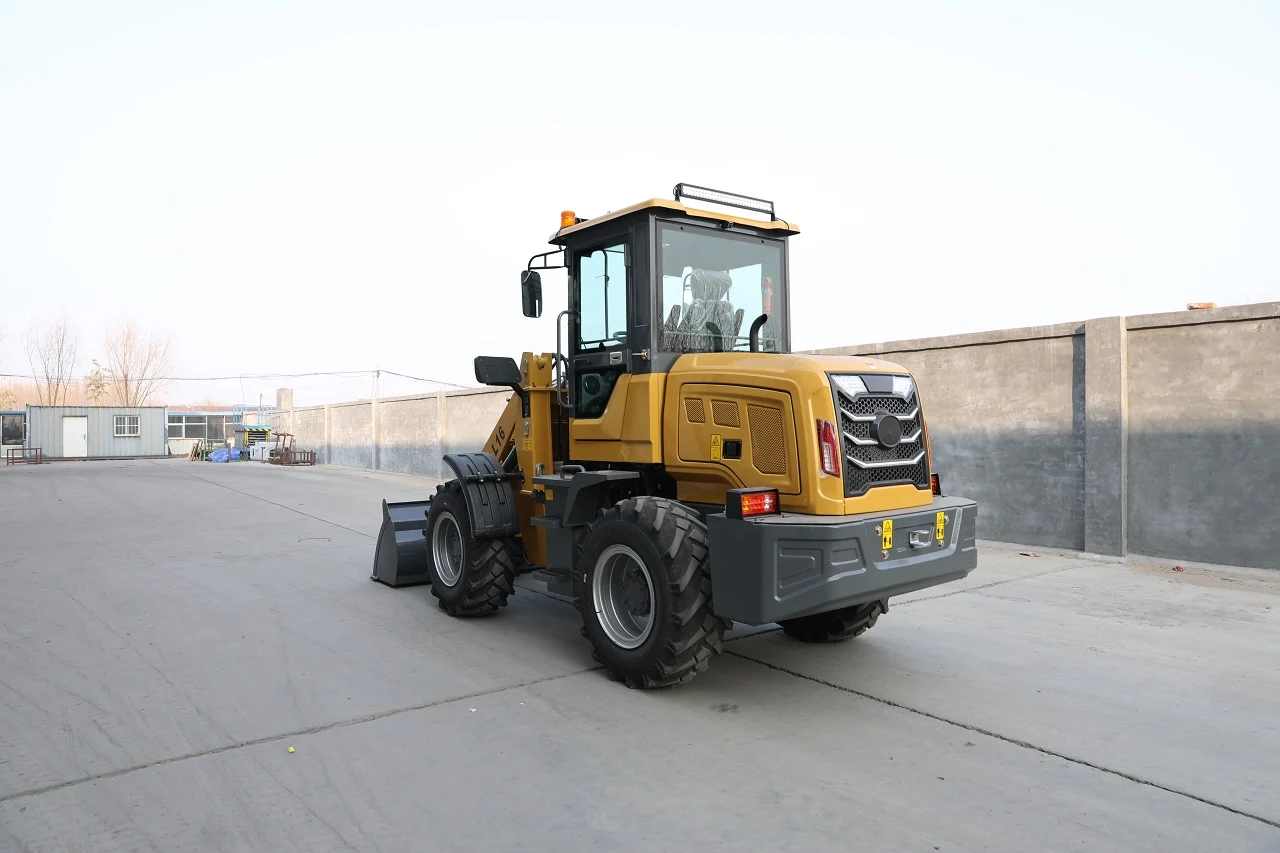

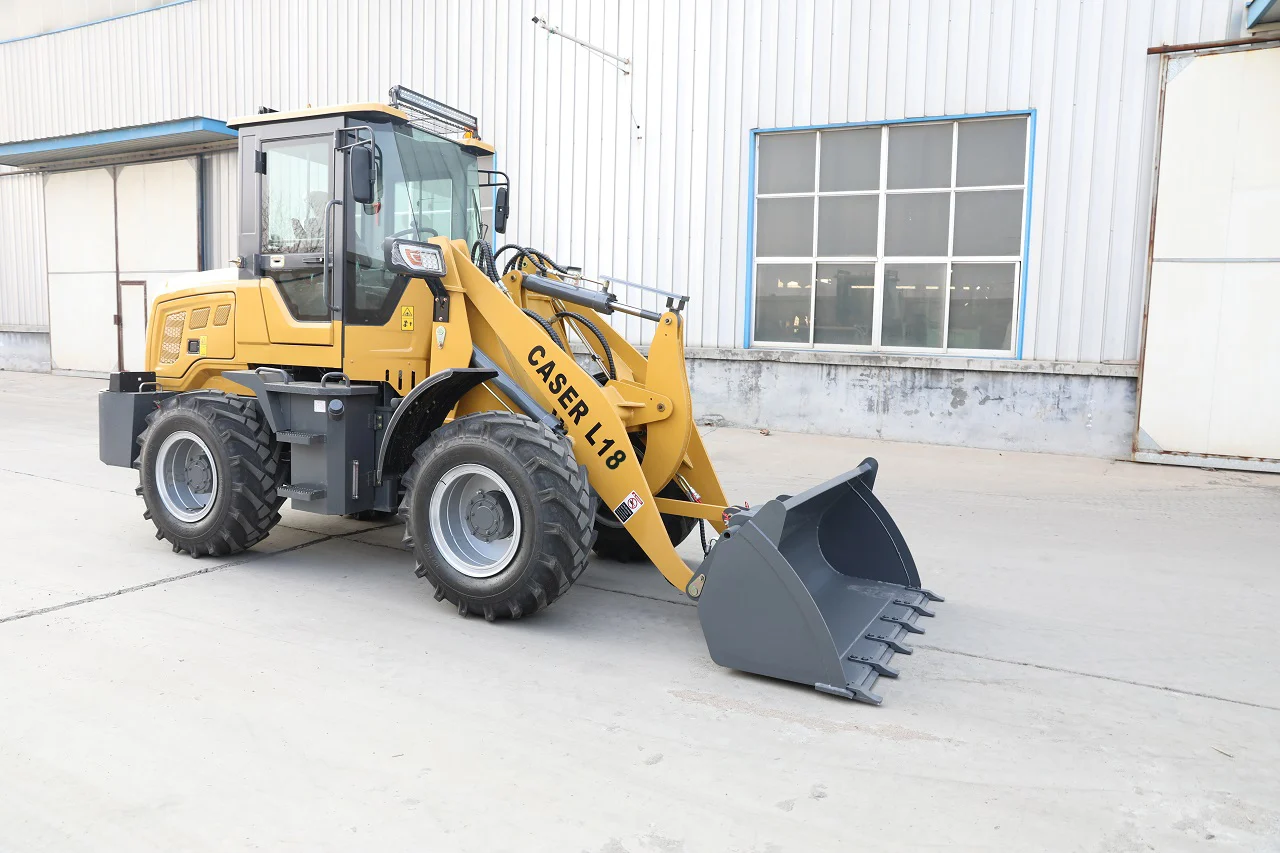

Wheel Loader L18
1.8 TON LOADING CAPACITY WHEEL LOADER:
1. MAX SPEED 35km/h.
2. Fully hydraulic power shift Transmission, and Torque Convertor.
3. Axle with Disk brakes, and Differential Gear Function.
4. Joystick Control.
5. 4 X 4 Wheel Drive.
6. . Long Bar Type of LED Lights.
7. Quality Hydraulic pump, valves, and oil hoses.
8. Backup Camera.
9. Different Engine Options available.
10. Color can be customized.
11. Complete Cabin with Heater.
12. 110v or 220v engine pre-heater.
MAIN SPECS
LOADING CAPACITY: 1800KG
SELF WEIGHT: 4350KG
ENGINE POWER: 58kW (78hp)
1. MAX SPEED 35km/h
2. Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.
3. Axle with Disk brakes, and Differential Gear Function.
4. Joystick Control, makes the loading system easier to operate.
5. 4 X 4 Wheel Drive
6. Long Bar Type of LED Lights, much brighter and much longer life time, than the regular halogen lights.
7. Quality Hydraulic pump, valves, and oil hoses, makes the owner not warrying about the hydraulic system
8. Backup Camera, is a good safety feature to have.
9. Different Engine Options can choose from (Standard is Yunnei 498) and optional of YN Euro 5, Kohler EPA 4, or Cummins EPA4 engine.
10. Color can be customized.
11. Complete Cabin with Heater.
12. 110v or 220v engine pre-heater.
13. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| WHEEL LOADER CASER L18 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 1800kg |
| Overall Weight | 4350kg | |
| Bucket capacity | 0.86 cbm | |
| Bucket width | 1950mm | |
| L x W x H | 5400x 1956 x 2760mm | |
| Dumping Height: | 3100mm | |
| Wheelbase | 2040mm | |
| Standard Engine | Make & Model: | YUNEI 490T |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 58kW@2400rpm (78hp) | |
| Transmission system | Type | FULL HYDRAULIC |
| Gear Numbers: | 4 Forward; 4 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2200 (rpm) | |
| Operating Specifications | Drive Train: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 3890mm | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Service Brake: | Hydraulic Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 16/70-20 | |
