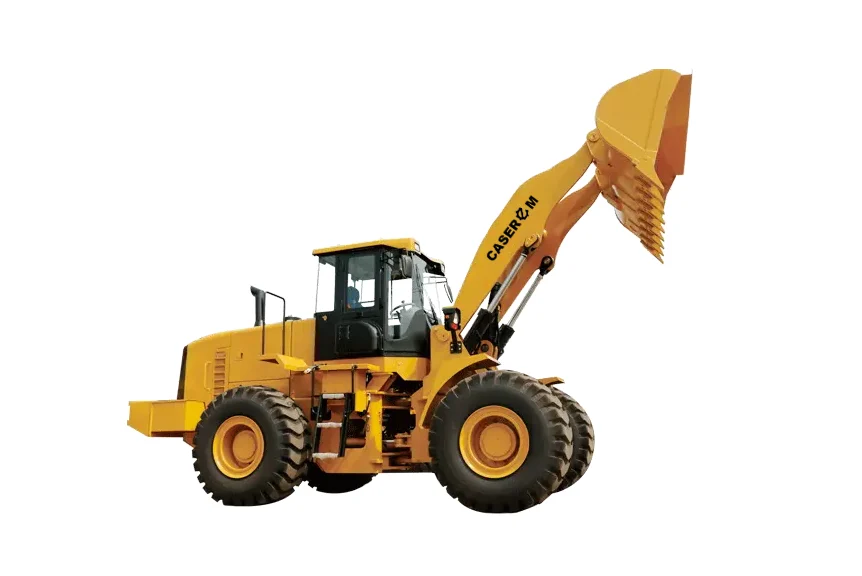

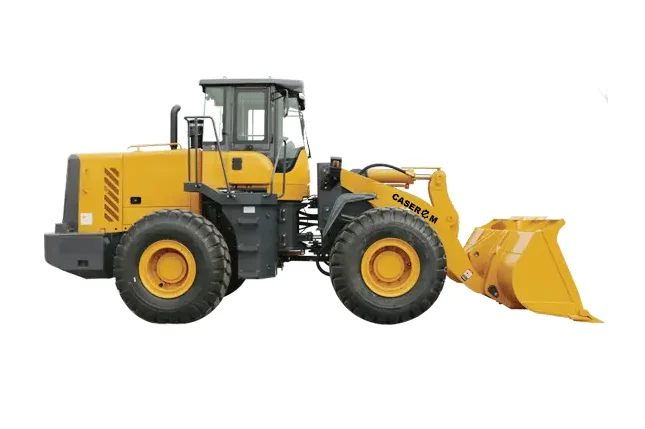

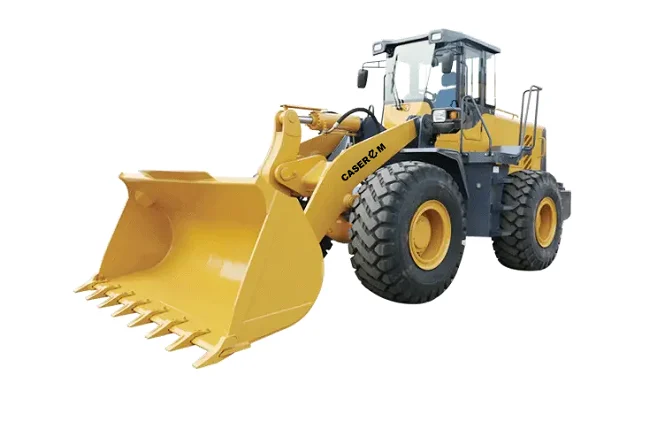

Wheel Loader 960
6.0 TON LOADING CAPACITY WHEEL LOADER:
1. Articulated Frames.
2. Fully hydraulic power shift Transmission, and Torque Convertor.
3. Axle with Disk brakes, and Differential Gear Function.
4. Joystick Control.
5. 4 X 4 Wheel Drive.
6. LED Lights.
7. Digital Dashboard, Operator can monitoring main parts data.
8. Backup Camera.
9. Different Engine Options can choose from.
10. Fully openable engine hood.
11. Complete Cabin with Heater.
MAIN SPECS
LOADING CAPACITY: 6000KG
SELF WEIGHT: 19000KG
ENGINE POWER: 175kW (236hp)
1. Articulated Frames, makes the loader a stronger and a better working machine.
2. Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.
3. Comfortable Suspension Seat.
4. Joystick Control, makes the loading system easier to operate.
5. 4 X 4 Wheel Drive
6. Better Designed Frame, and outside looking.
7. Data Dashboard, Operator can monitoring main parts data.
8. Reading Light, and Sun Visor
9. Different Engine Options can choose from (Standard is Deutz WP6G 92kw) and optional of Cummins 6BT5.9-C130 with 130hp engine.
10. Interior Fan, and AC, keeps operator cool in Summer time.
11. Complete Cabin with Heater.
12. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| WHEEL LOADER CASEREM 960 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 6000kg |
| Overall Weight | 19000kg | |
| Bucket capacity | 3.25cbm | |
| Bucket width | 3050mm | |
| L x W x H | 7920x 3050 x 3400mm | |
| Dumping Height: | 3150mm | |
| Wheelbase | 2660mm | |
| Standard Engine | Make & Model: | Weichai Steyr WD10G240E21 |
| Engine Type | Water-cooled, 6 Cylinder Turbo Diesel Engine | |
| Rated Power: | 175kW@2200rpm (236hp) | |
| Transmission system | Type | FULL HYDRAULIC |
| Gear Numbers: | 4 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2200 (rpm) | |
| Operating Specifications | Drive Train: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 6640 mm | |
| Hydraulic cycle time: | 11 Second. | |
| Brake System | Service Brake: | Air Over Hydraulic Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 26.5 - 25 | |
