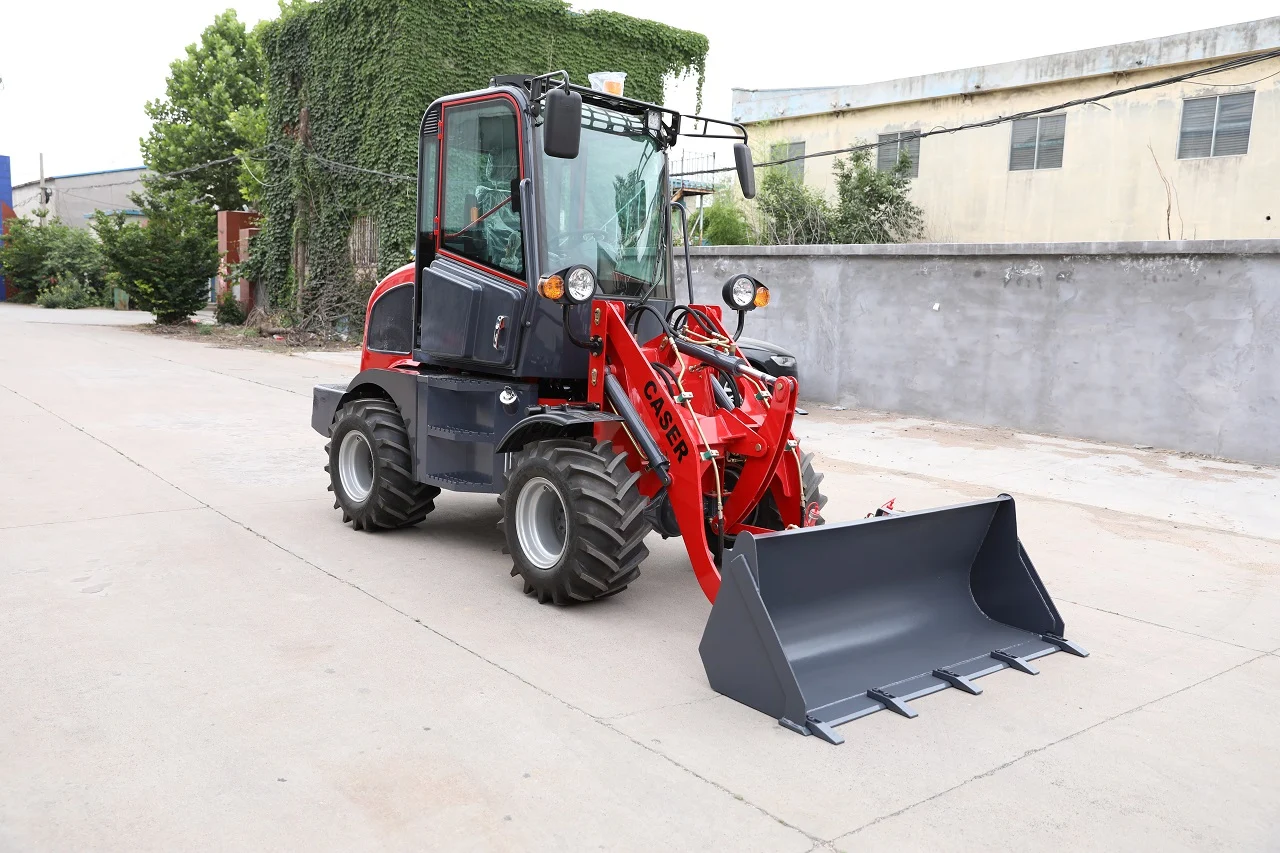

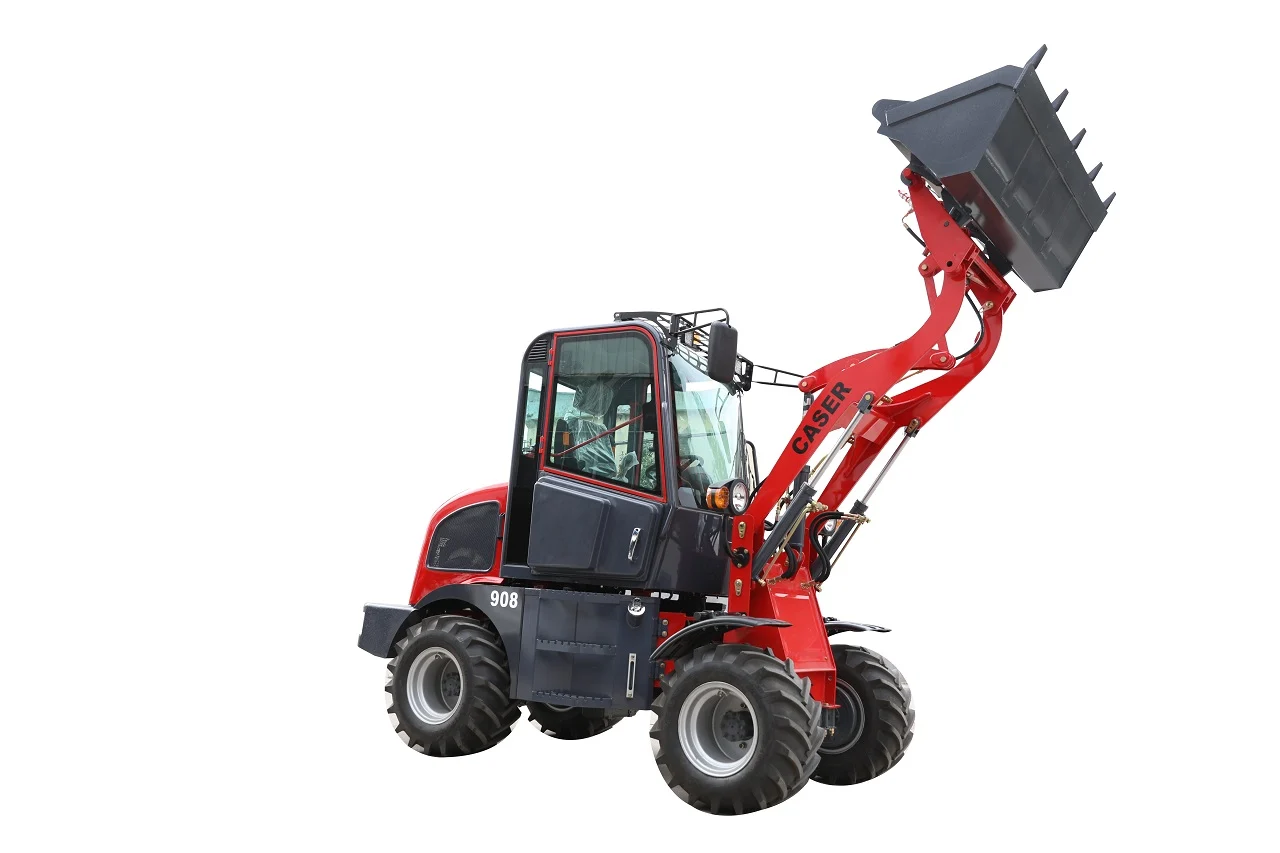

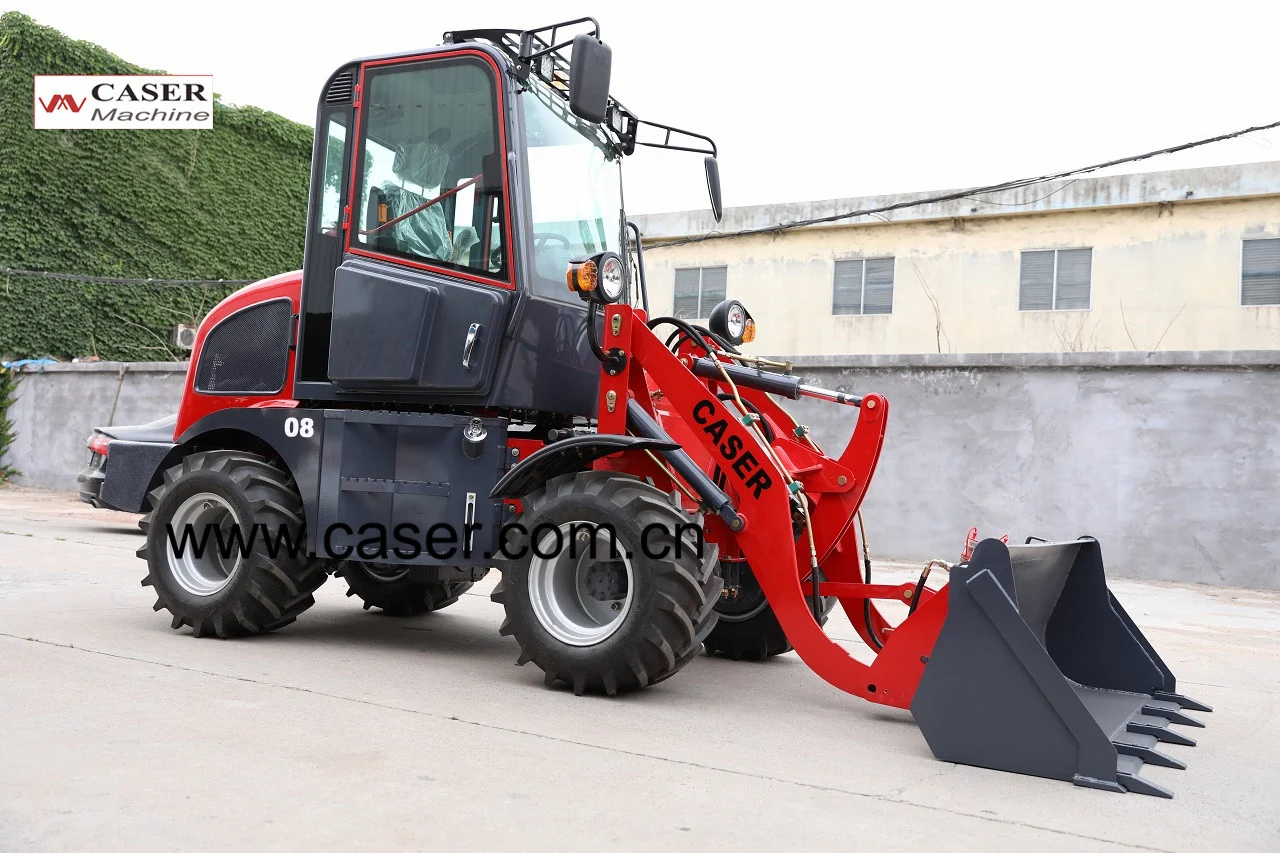

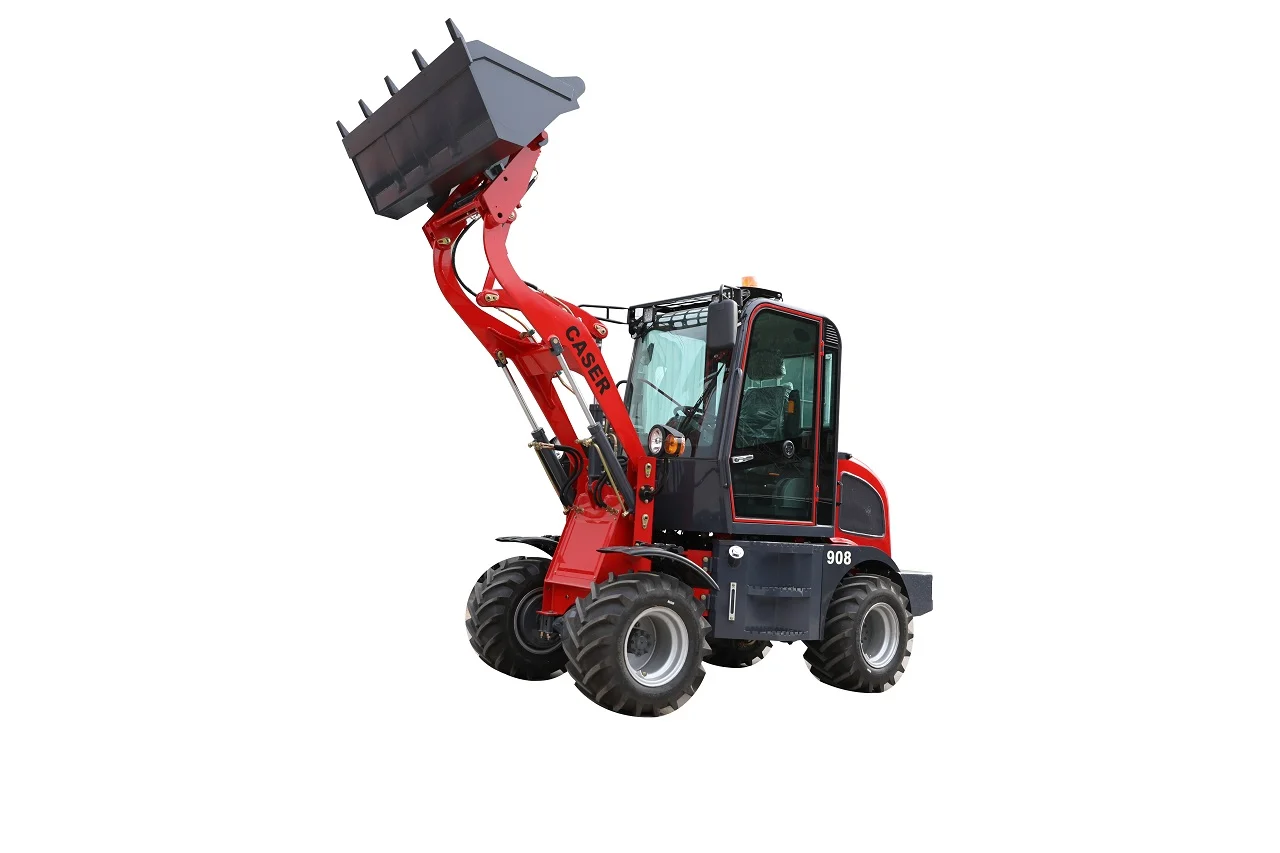

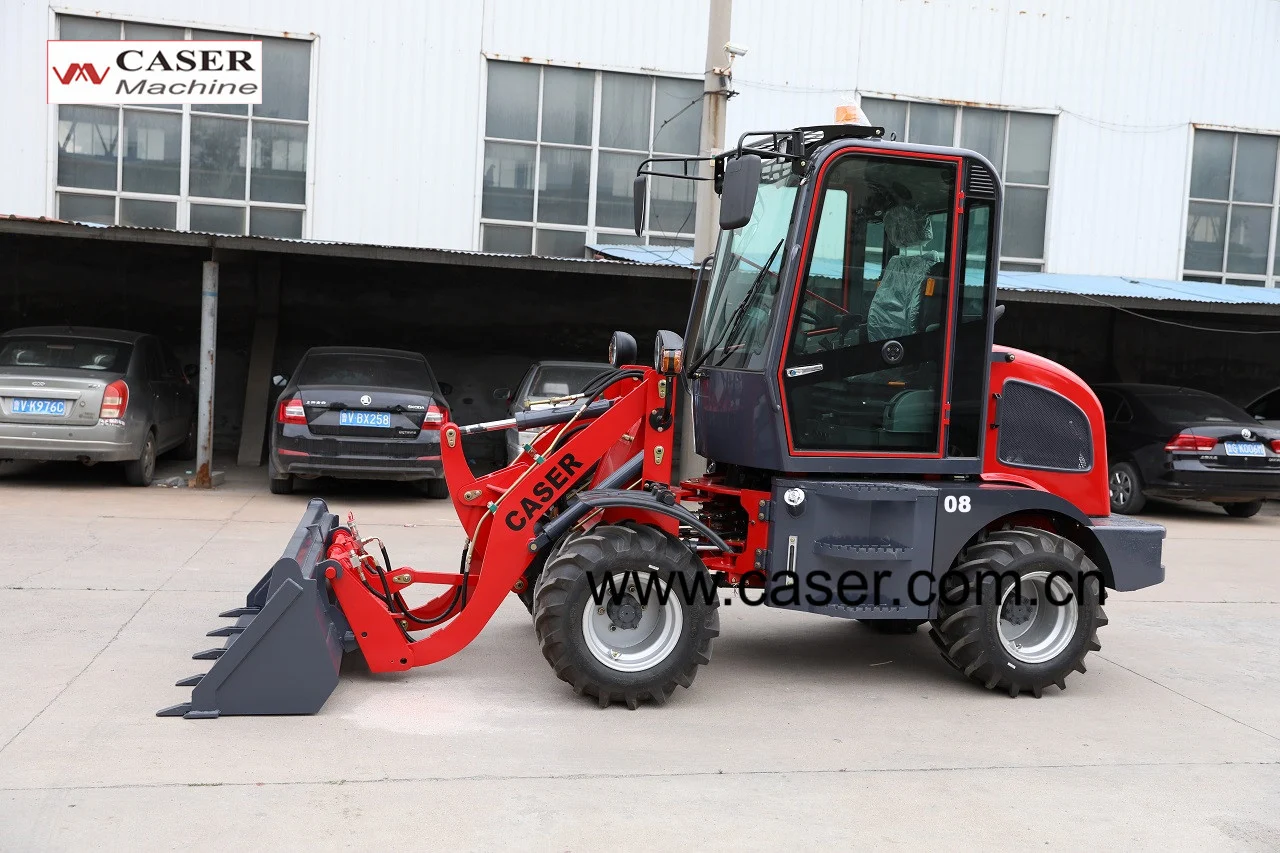

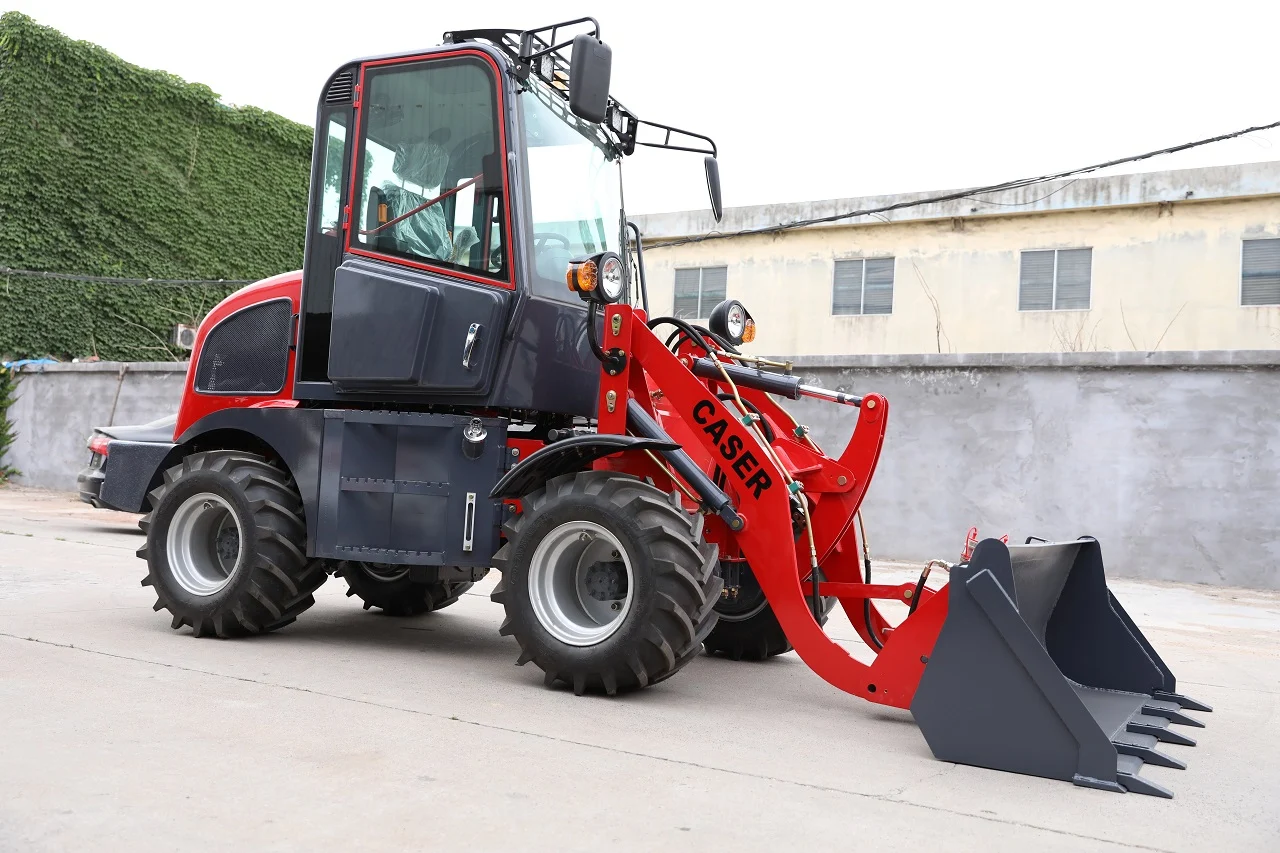

Wheel Loader 908
CASER 908 Wheel Loader is a 0.8 ton loading capacity wheel loader, with the following features:

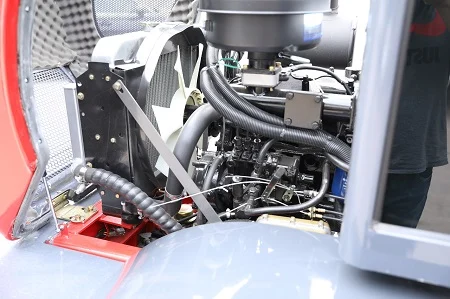

1. Engine: CHANGCHAI 390 25kW
2. Drive Train: FULL hydraulic transmission system, Reliable and work efficient.
3. Can work with narrow areas.

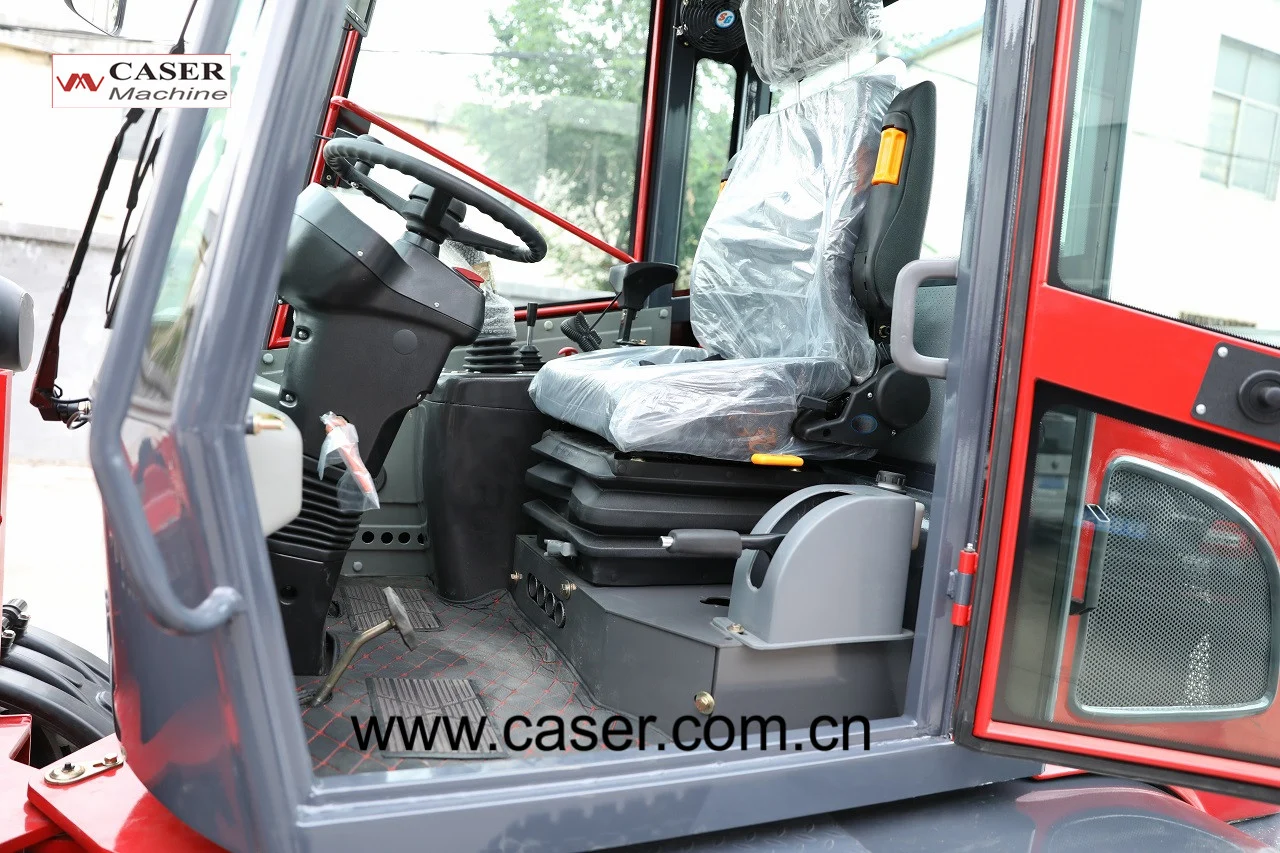

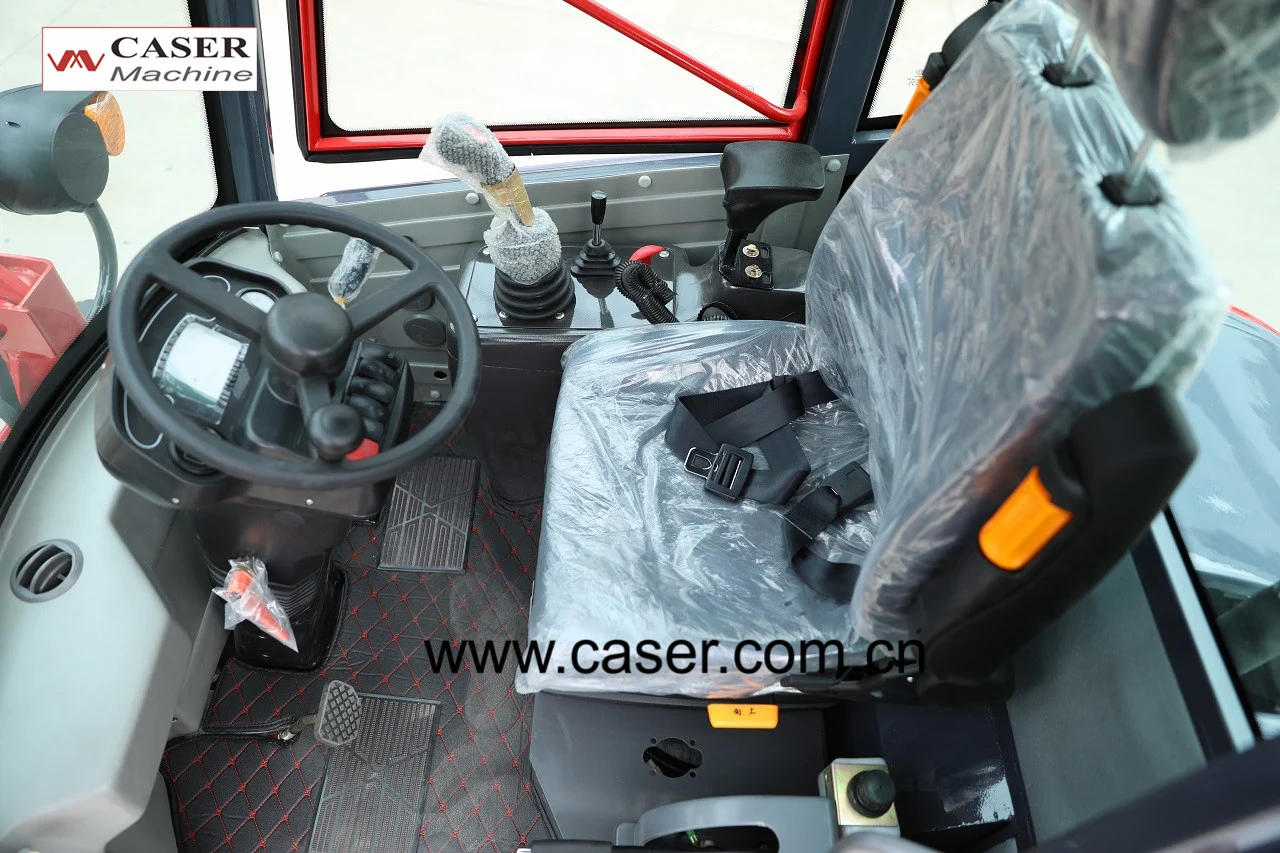

4. Electric Gear Control on Joystick: handy for operator.
5. Standard Tires of 750-16, suggested tires 31×15-15 wider tires fits better.
6. Better painting, using the latest powder painting technology.
7. LED lights.

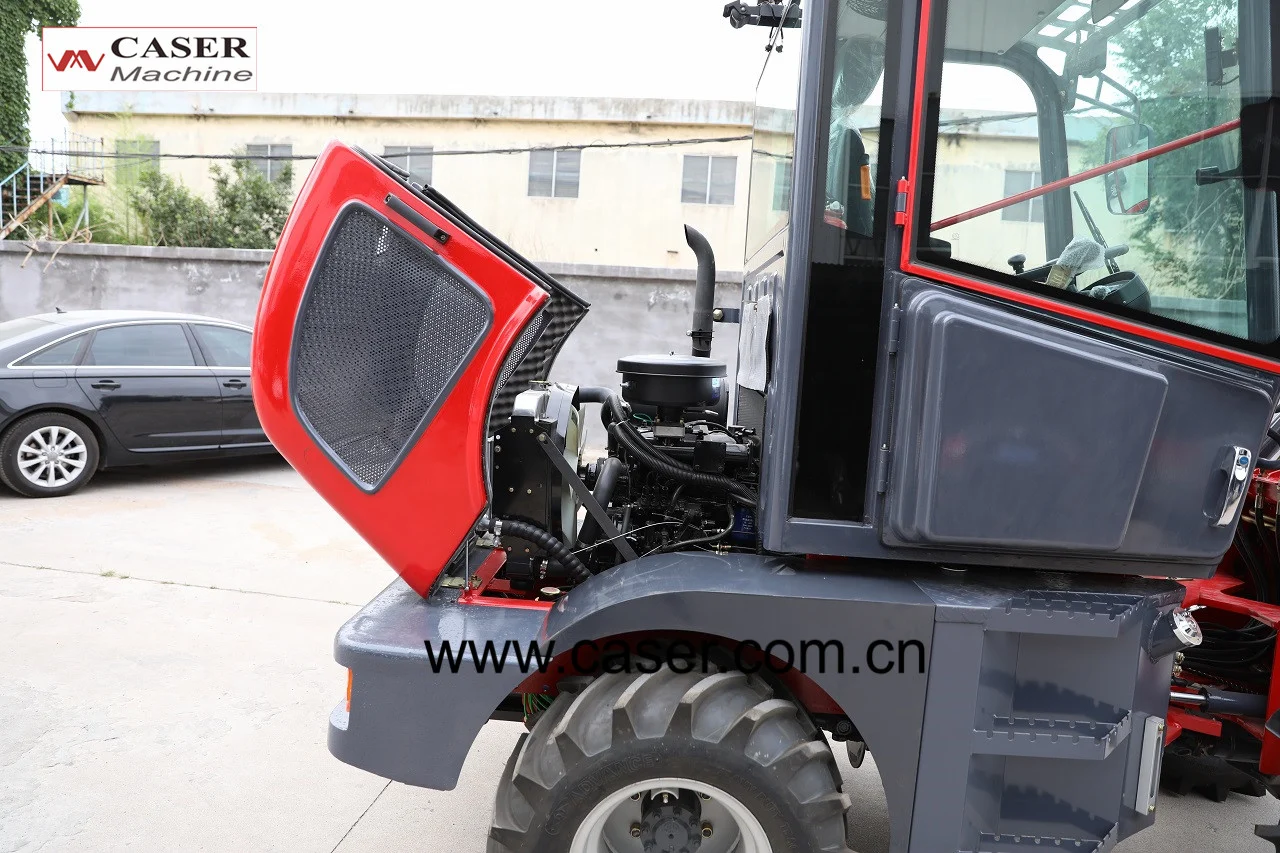

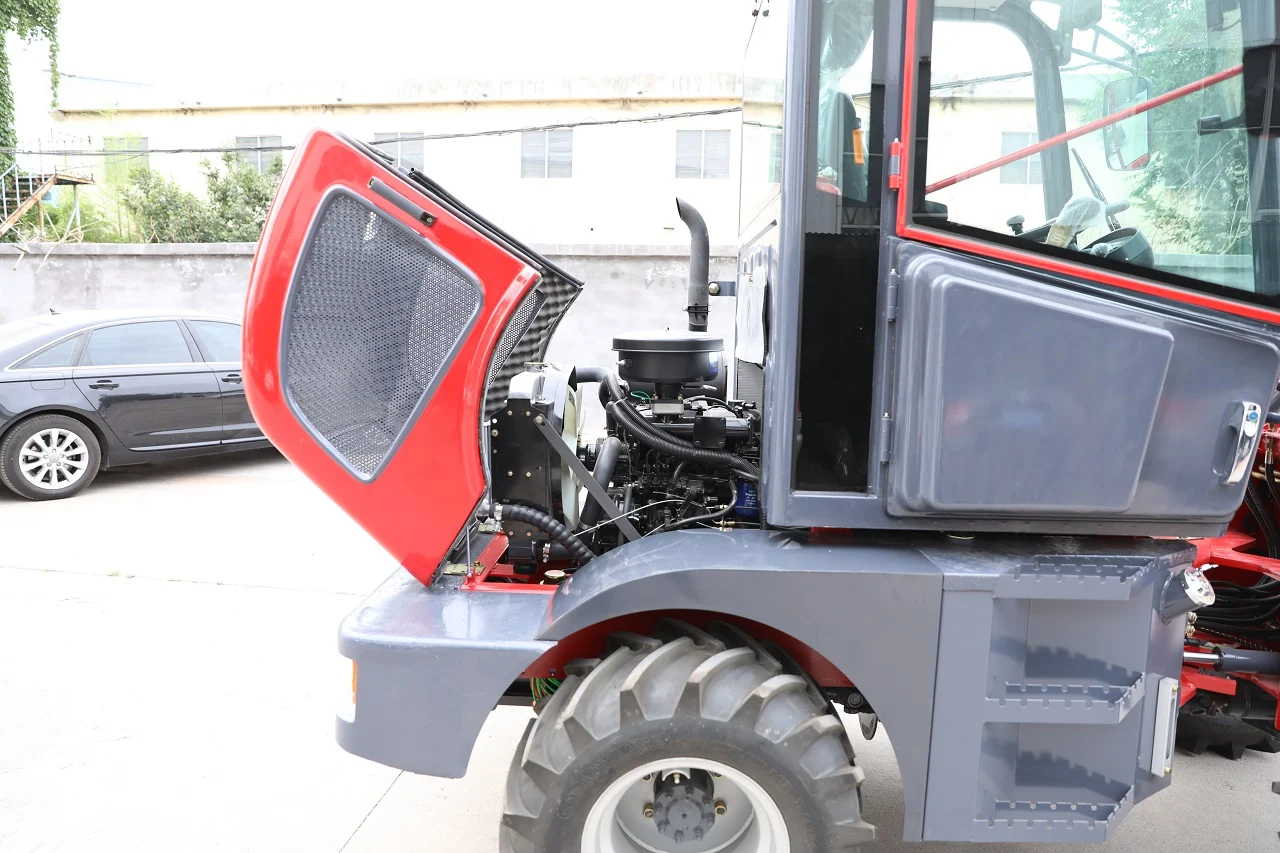

8. Easy and fully openable engine hood.
9. 4 X4 WHEEL DRIVE
10. A wide range of Attachments available: makes a single machine into a multiple usage machine
MAIN SPECS
LOADING CAPACITY: 800KG
SELF WEIGHT: 2700KG
ENGINE POWER: 25kW (33hp)
1. Engine: Changchai 25kW, 3 Cylinder Diesel Engine.
2. Drive Train: Full hydraulic transmission system, Reliable and work efficient.
3. Can work with narrow areas.
4. Electric Gear Control on Joystick: handy for operator.
5. Standard Tires of 750-16, suggested tires 31×15-15 wider tires fits better.
6. Better painting, using the latest powder painting technology.
7. LED lights.
8. Easy and fully openable engine hood.
9. 4 X 4 WHEEL DRIVE
10. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| WHEEL LOADER CASER 908 | ||
|---|---|---|
| Overall Dimensions | Rated Load | 800kg |
| Overall Weight | 2700kg | |
| Bucket capacity | 0.5 cbm | |
| Bucket width | 1470mm | |
| L x W x H | 4200 x 1470 x 2460mm | |
| Dumping Height: | 2350mm | |
| Wheelbase | 1100mm | |
| Standard Engine | Make & Model: | Changchai 390, 25kw (33hp) |
| Engine Type | Water-cooled, 3 Cylinder Diesel Engine | |
| Rated Power: | 25kW@2200rpm (33hp) | |
| Transmission system | Type | Full Hydraulic Transmission Driving System |
| Gear Numbers: | 2 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2200 (rpm) | |
| Operating Specifications | Drive Train: | 4-wheel drive |
| Steering System | Articulated Frame with hydraulic power steering | |
| Min Turning Radius: | 3400mm | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Service Brake: | Hydraulic Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 750-16 | |
