EXCAVATOR CN16

Self-weight of 1.6 Ton Excavator Featuring:

1. Kubota Euro 5 and EPA engine.

2. With Dozer.

3. Rubber Track.
4. Joystick Control.
5. LED Lights.
6. Full Openable Rear engine cover.

7. Extra hydraulic hose.

8. Better Seat.

9. Sun Shade.

10. Seat with Arm Rest.

MAIN SPECS

SIZE (L x W x H) 3160 x 1040 x 2377mm.

SELF WEIGHT: 1600KG

Engine: Kubota Euro5, EPA, 10kW(13hp)

1. Kubota Euro5, EPA, 10kW(13hp)

2. With Dozer.

3. Rubber Track.

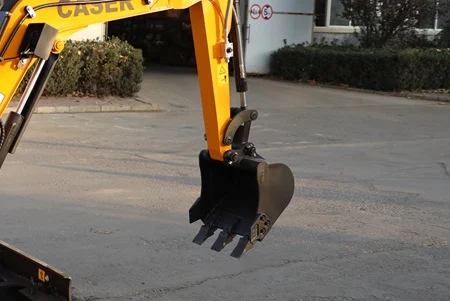

4. Bucket size of 0.045cbm, can load up to 400kg.

5. LED Lights.

6. Full Openable Rear engine cover.

7. Extra hydraulic hose.

8. Better Seat.

9. Sun Shade.

10. Seat with Arm Rest.

12. Wide Range of Attachments can choose from.

That makes a single machine into a multiple usage machine

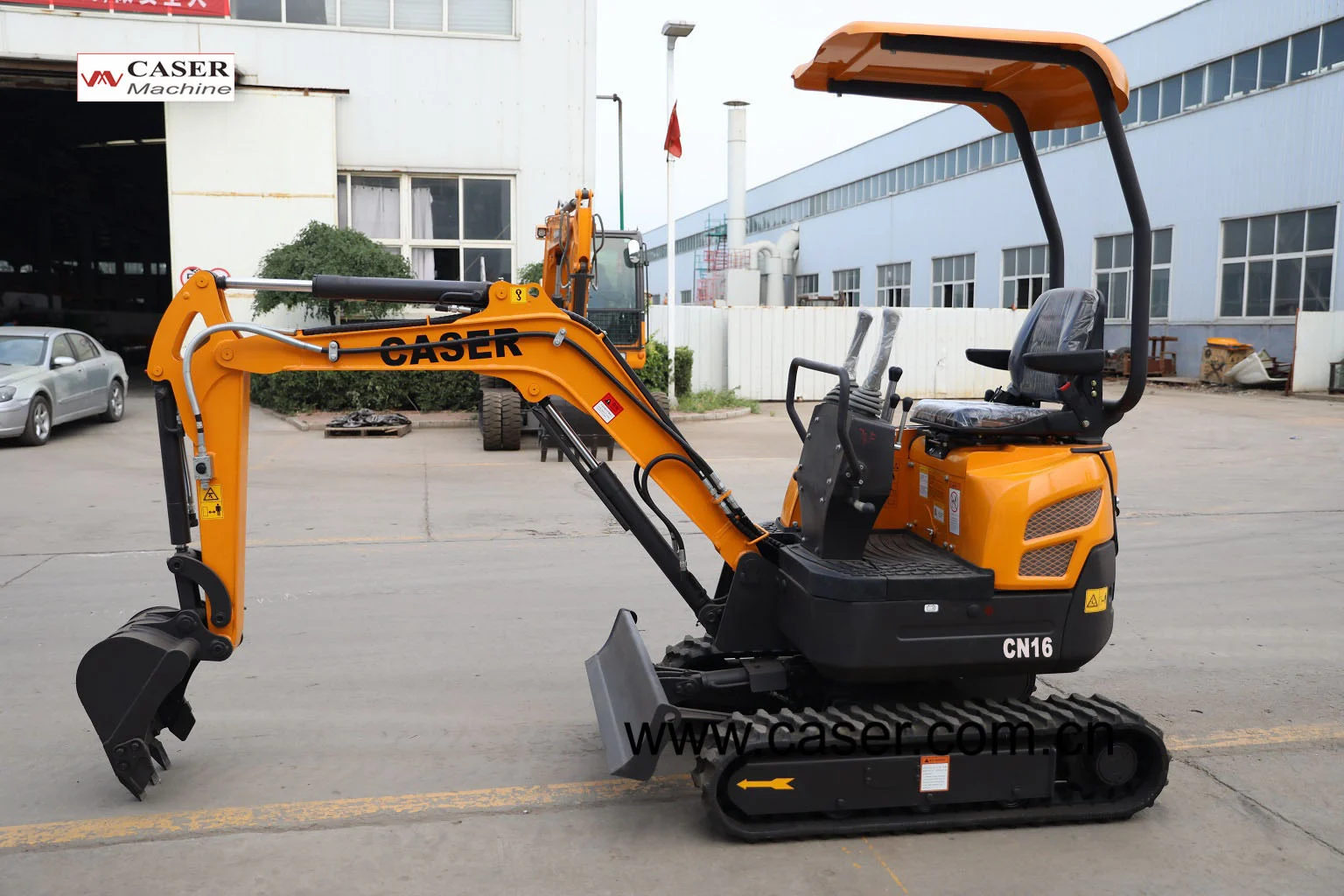

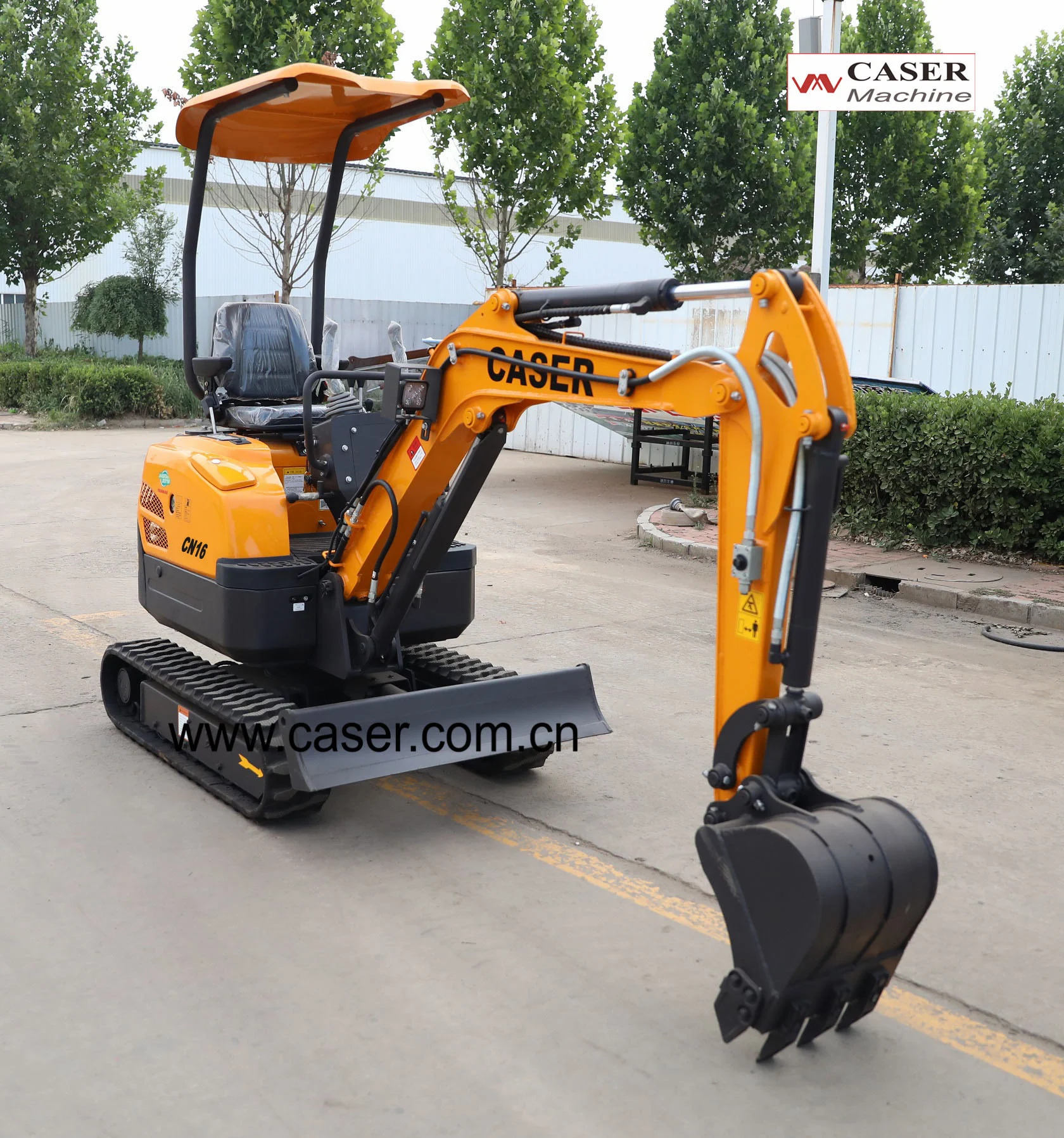

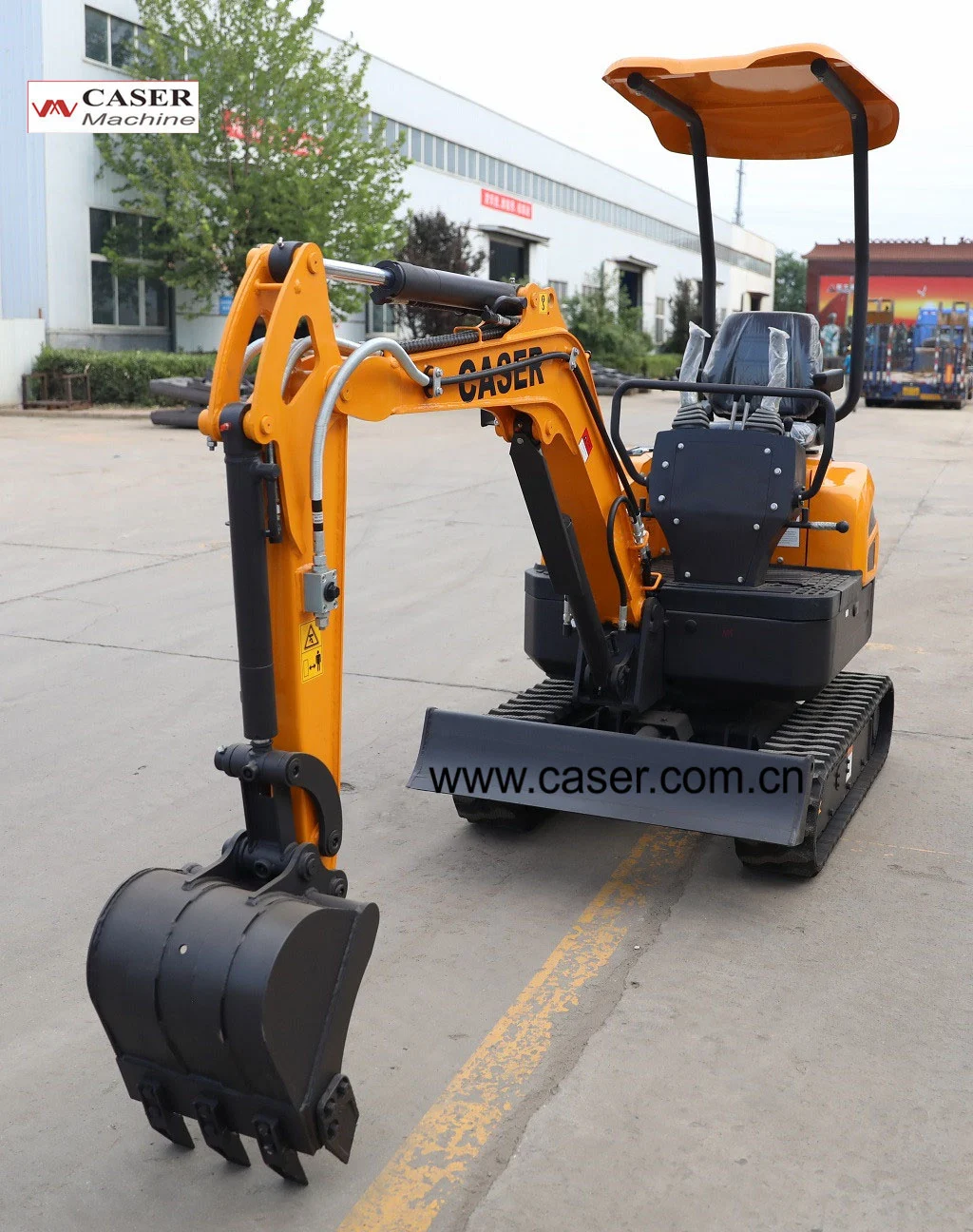

Excavator CASEREM CN16
Main Specs	L x W x H	3160 X 1040 X 2377mm
	Overall Weight	1600kg
	Bucket Capacity	0.045 cbm
	Digging Depth	2150mm
	Digging Force	10.5kn

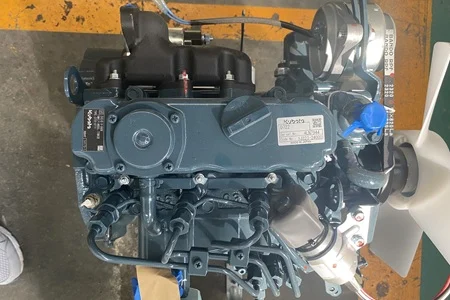

Engine	Make & Model:	Kubota D722-EF11
	Engine Type	Water-cooled, 3 Cylinder Diesel Engine
	Rated Power:	10.2kw@2200rpm (13hp)
Operating Range	Max Digging Depth	2150mm
	Vertical Digging Depth	1740mm
	Max Digging Height	3275mm
	Max Dumping Height	2310mm
	Digging Radius on Ground	3470mm
	Min Rotation Radius	1440mm
	Max Upgrade Height of Dozer Blade	262mm
	Max Digging Depth of Dozer Blade	192mm
