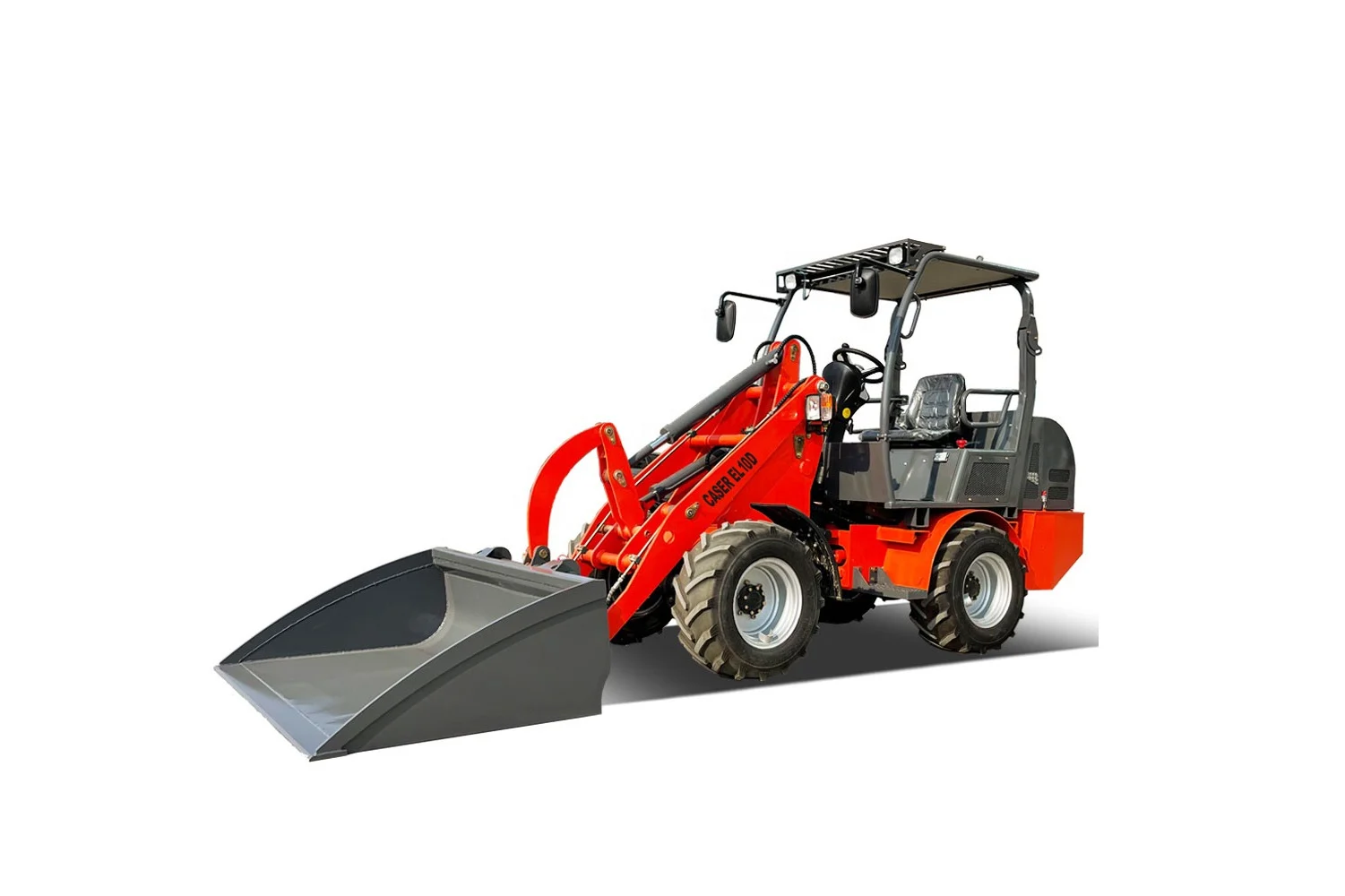

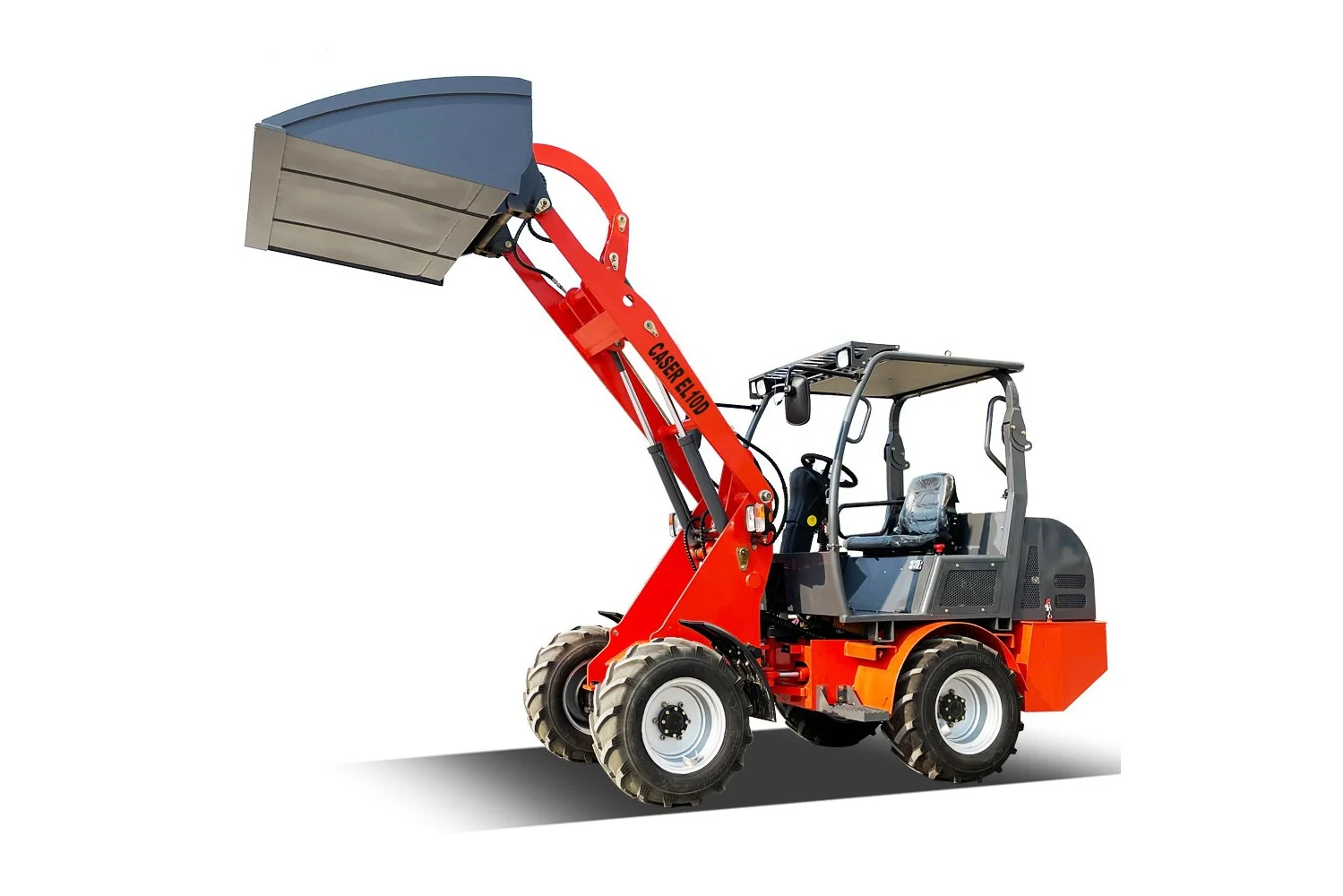

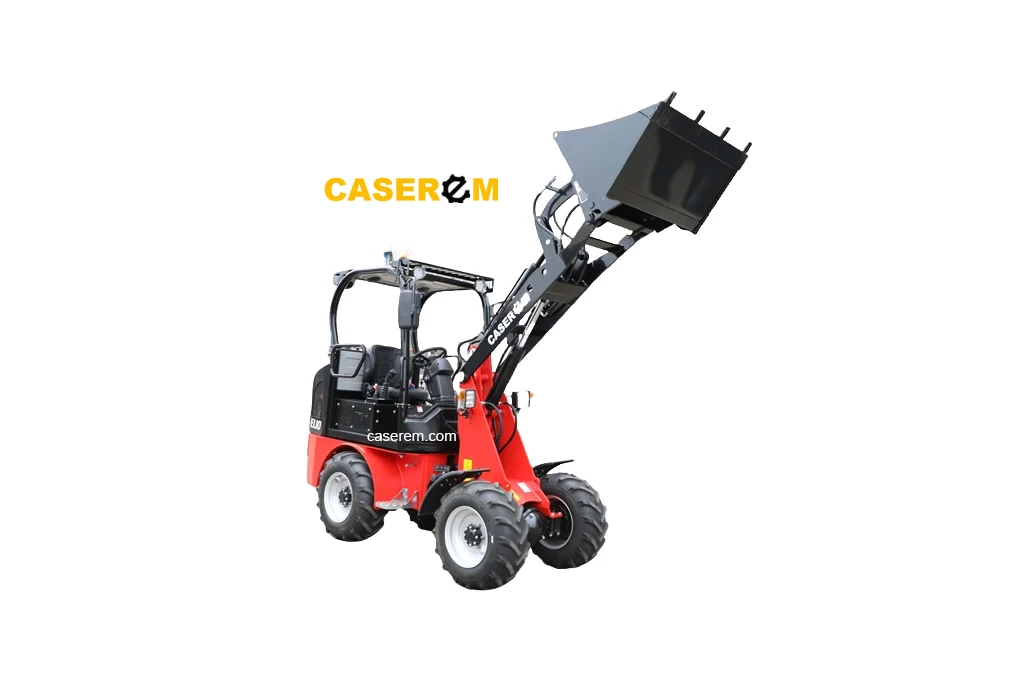

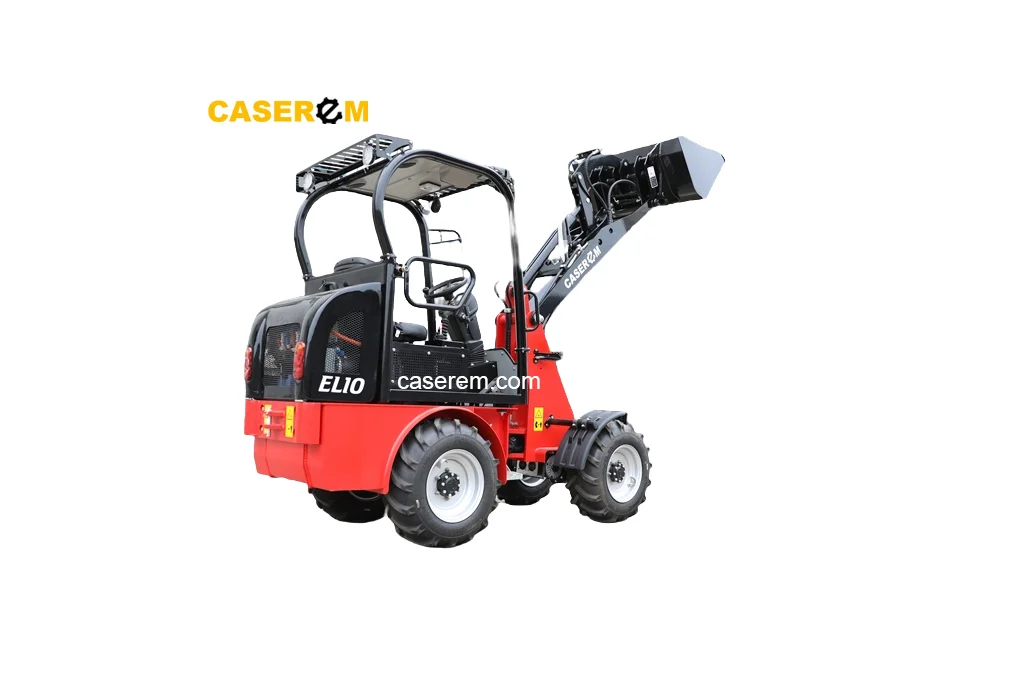

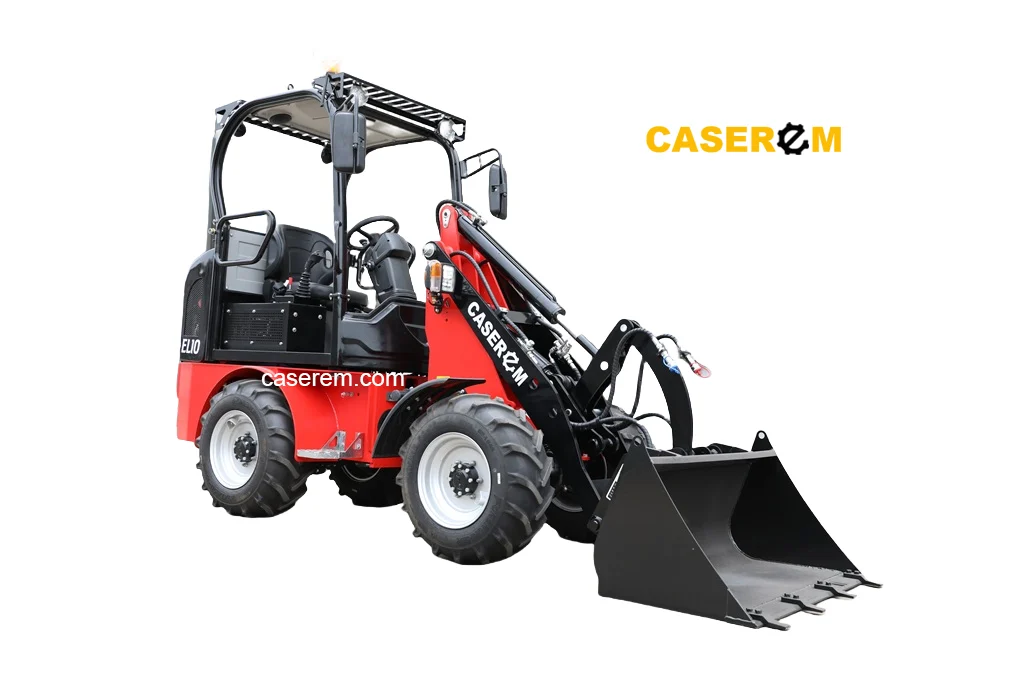

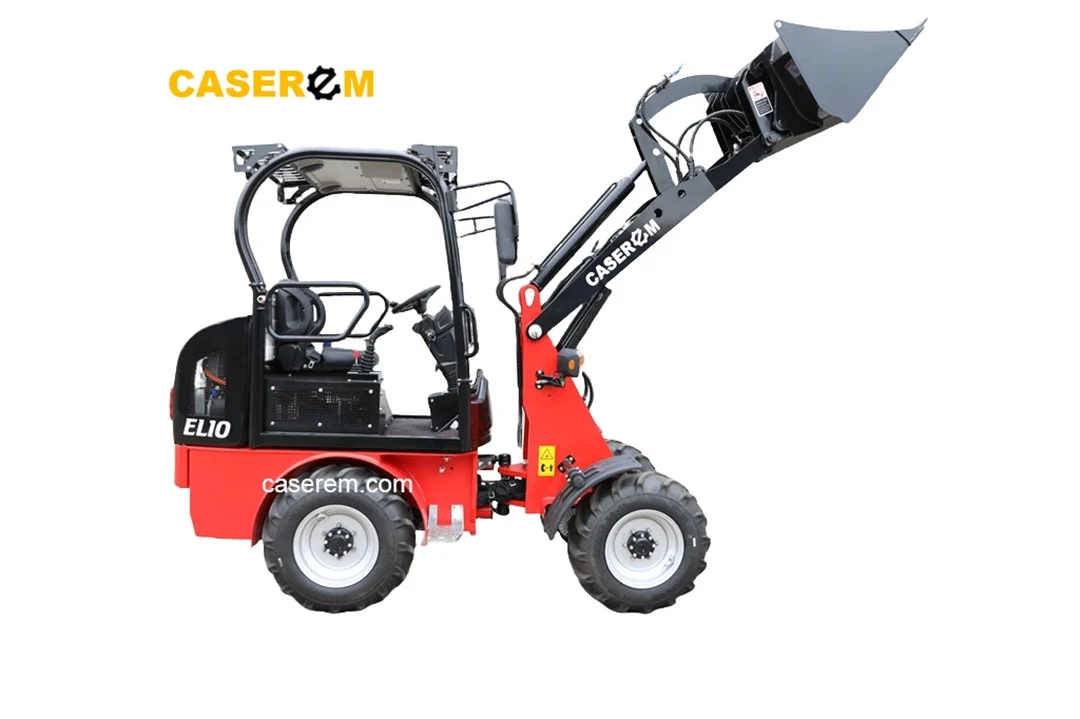

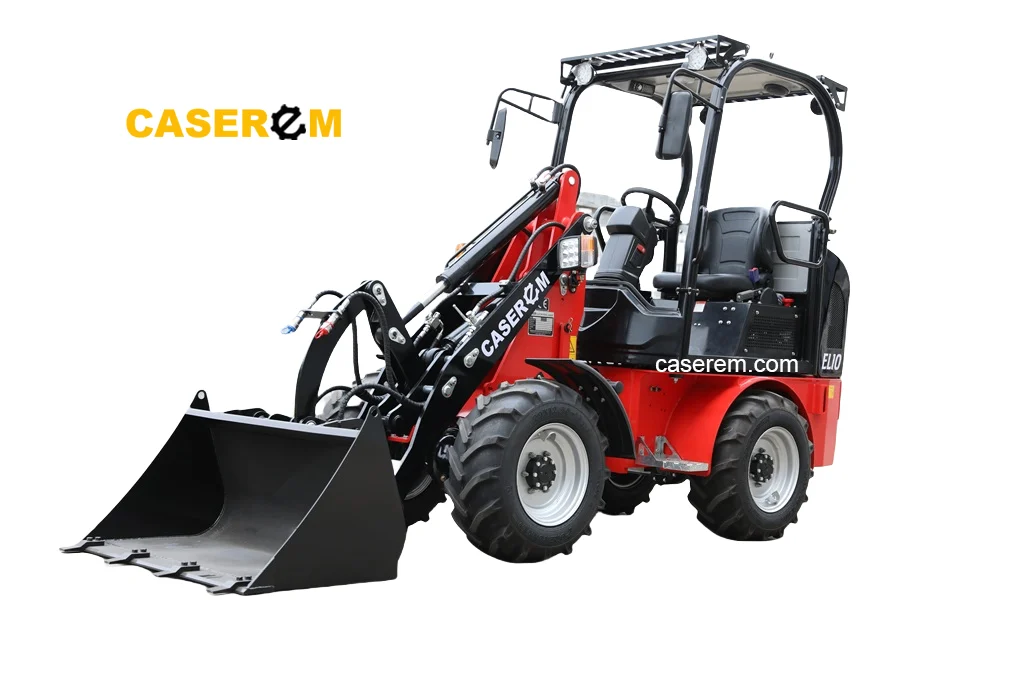

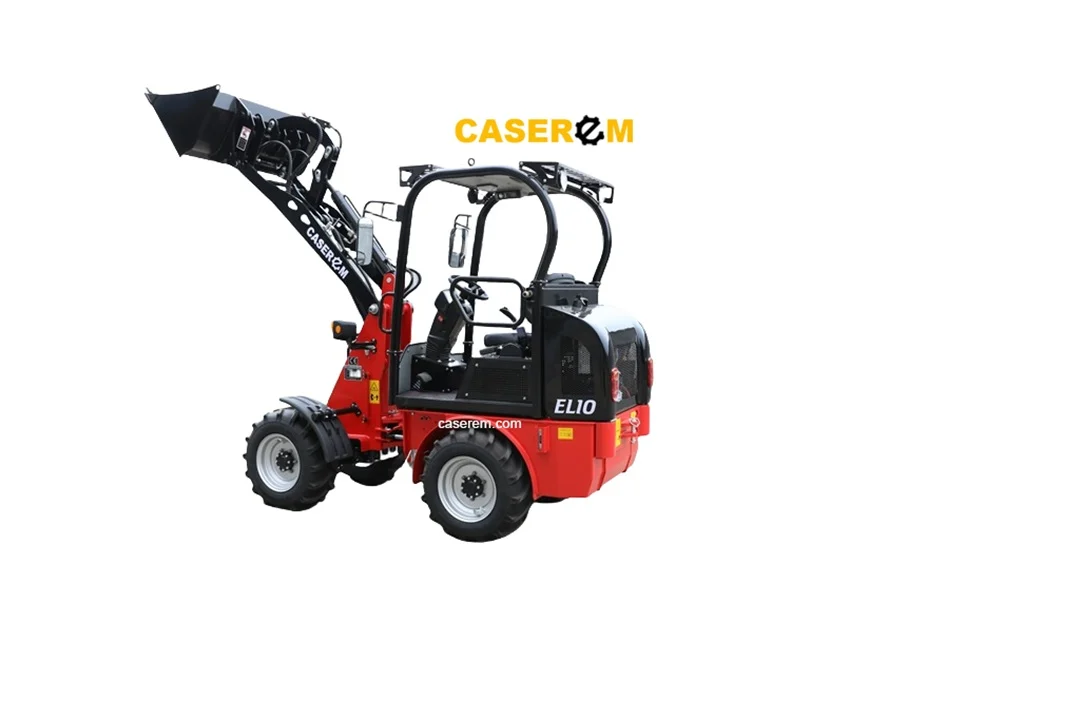

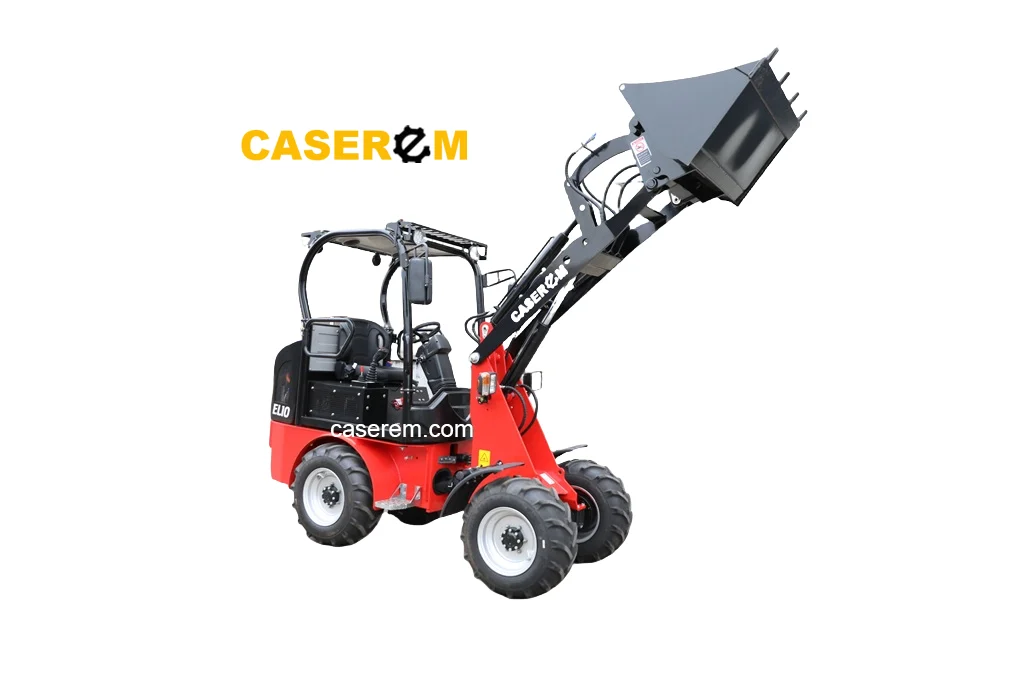

Electric Loader EL10D
CASER EL10D is a 1 ton loading capacity Electric wheel loader, with the following features:
1. 72V, 200Ah Battery.
2. Drive Train: 4×4 wheel Drive, 5kw motor on each axle.
3. Min Turning Radius 2805mm, with narrow design: Short Turning Radius, makes the loader perfectly working in small areas.
4. Electric Gear Control on Joystick: handy for operator.
5. Modern, and up-to-date type of Articulated Frame Design.
6. Better painting, using the latest powder painting technology.
7. LED lights.
8. Easy and fully openable engine hood.
9. ROPS protection Canopy
10. A wide range of Attachments available: makes a single machine into a multiple usage machine
MAIN SPECS
LOADING CAPACITY: 1000KG
SELF WEIGHT: 2300KG
Electric System: 72V, 200Ah.
1. 72V, 200Ah Battery.
2. Drive Train: 4×4 wheel Drive, 5kw motor on each axle.
3. Min Turning Radius 2805mm, with narrow design: Short Turning Radius, makes the loader perfectly working in small areas.
4. Electric Gear Control on Joystick: handy for operator.
5. Modern, and up-to-date type of Articulated Frame Design.
6. Better painting, using the latest powder painting technology.
7. LED lights.
8. Easy and fully openable engine hood.
9. ROPS protection Canopy
10. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| Electric Loader CASER EL10D | ||
|---|---|---|
| Overall Dimensions | Rated Load | 1000kg |
| Overall Weight | 2300kg | |
| Bucket capacity | 0.5 cbm | |
| Bucket width | 1600mm | |
| L x W x H | 4460 x 1600 x 2230mm | |
| Dumping Height: | 2200mm | |
| Wheelbase | 1100mm | |
| Battery System | ||
| Battery Rated Capacity | 200Ah | |
| Battery Model | 3-EVF-200A | |
| Quantity of Batteriy Groups | 12 | |
| Rated Voltage | 72V | |
| Working Hours | 4 hr | |
| Charging Time | 5 hr | |
| Driving Motor System | Motor No. | YQP5-72AF-48P |
| Voltage | 72V | |
| Power | 5kW | |
| Number of Motors | 1 in Front Axle, 1 in Rear Axle | |
| Brake System | Service Brake: | Hydraulic Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | 29 x 12.50 - 15 | |
