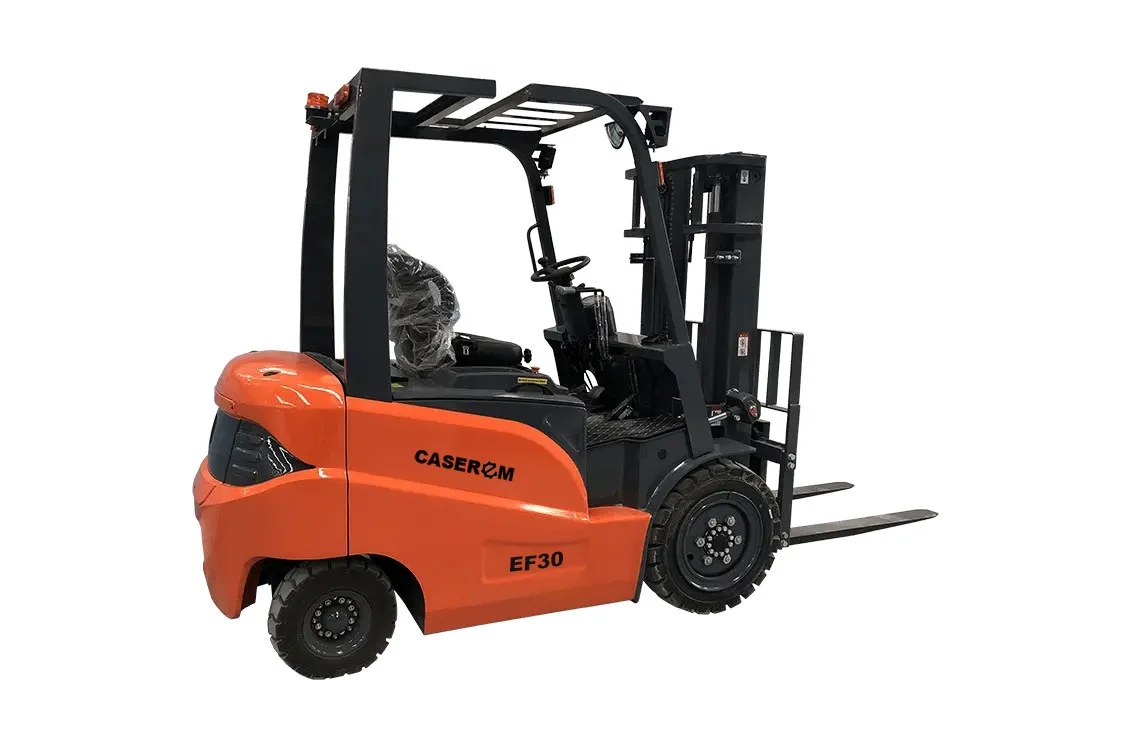

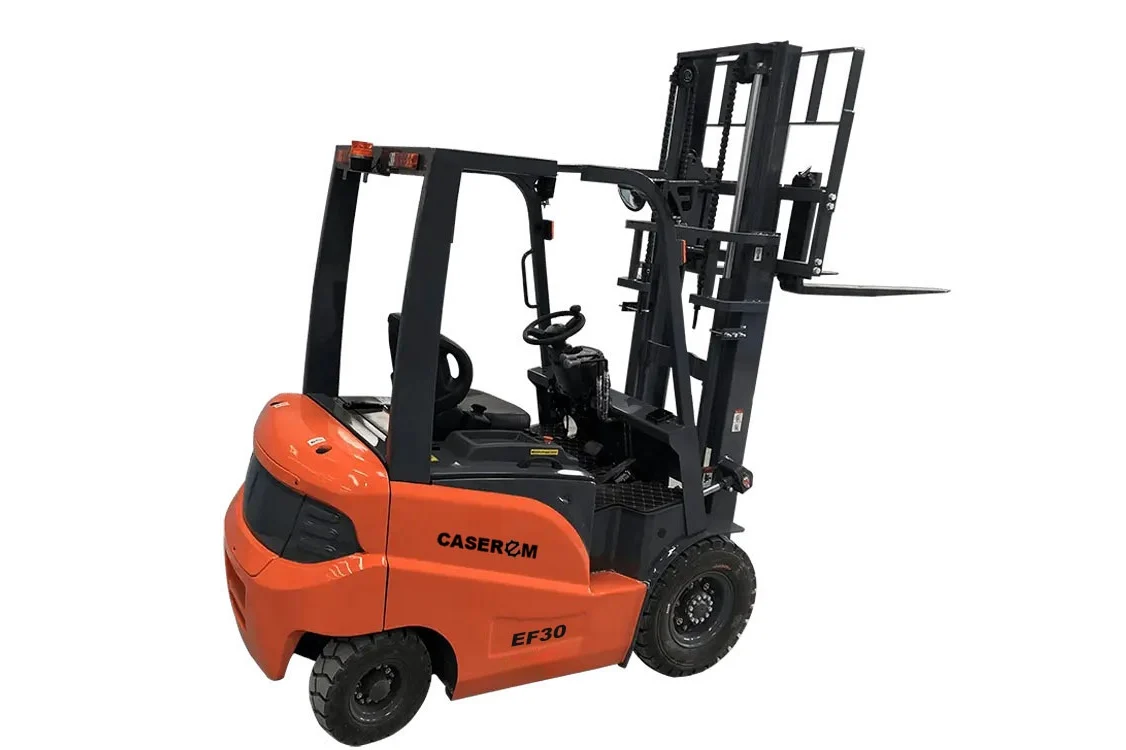

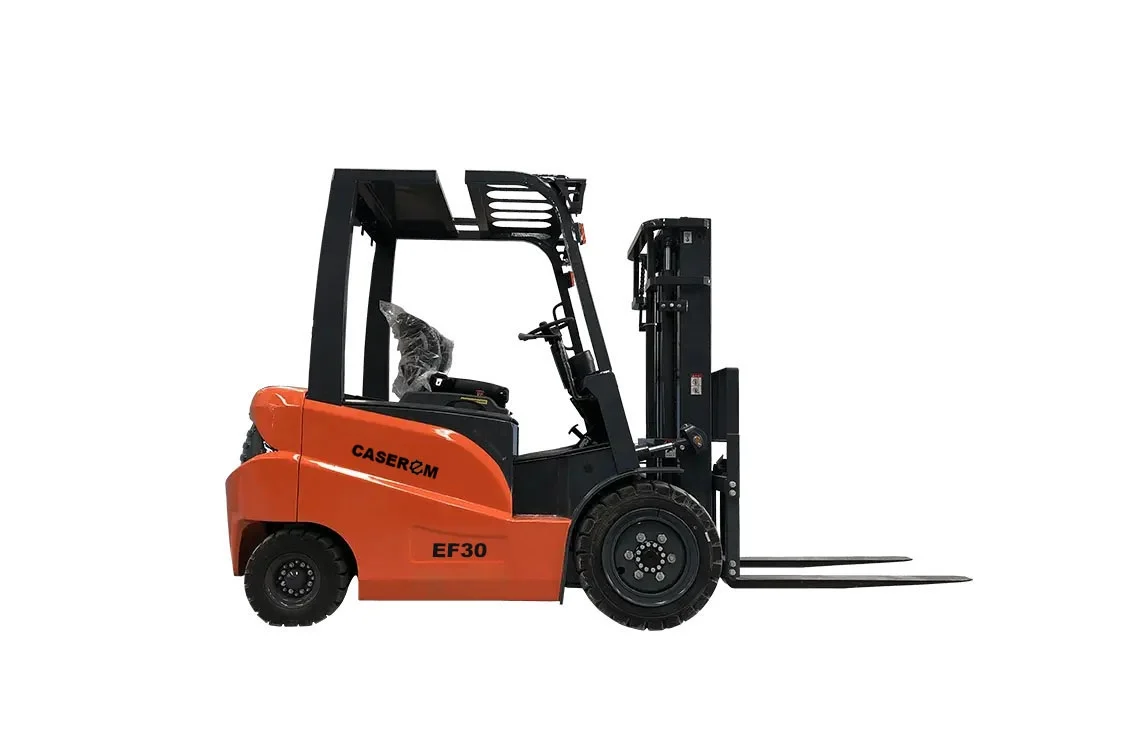

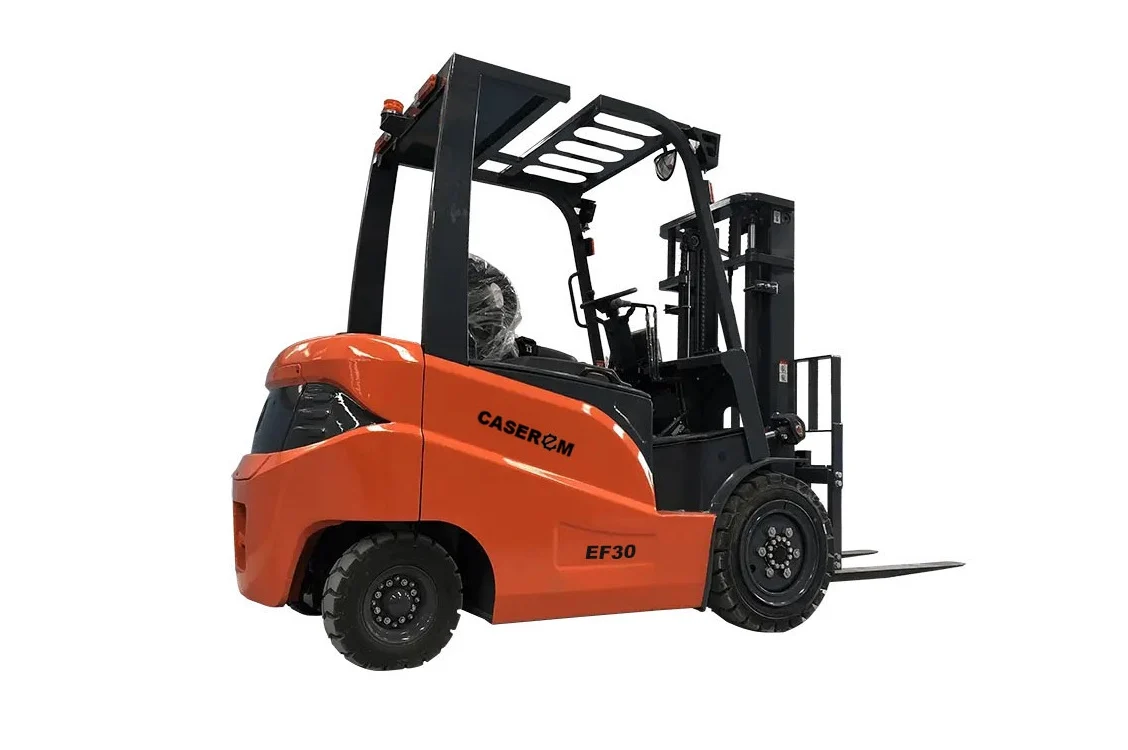

Electric Forklift EF30
CASEREM EF30 is a 3.0 Ton Lifting Capacity Electric Forklift, with the following features:
1. 80V, 500Ah Battery System.
2. Drive Train: 2×4 wheel Drive.
3. Lifting Height of 3000mm.
4. Better painting, using the latest powder painting technology.
5. LED lights.
6. 13kw Hydraulic Pump System.

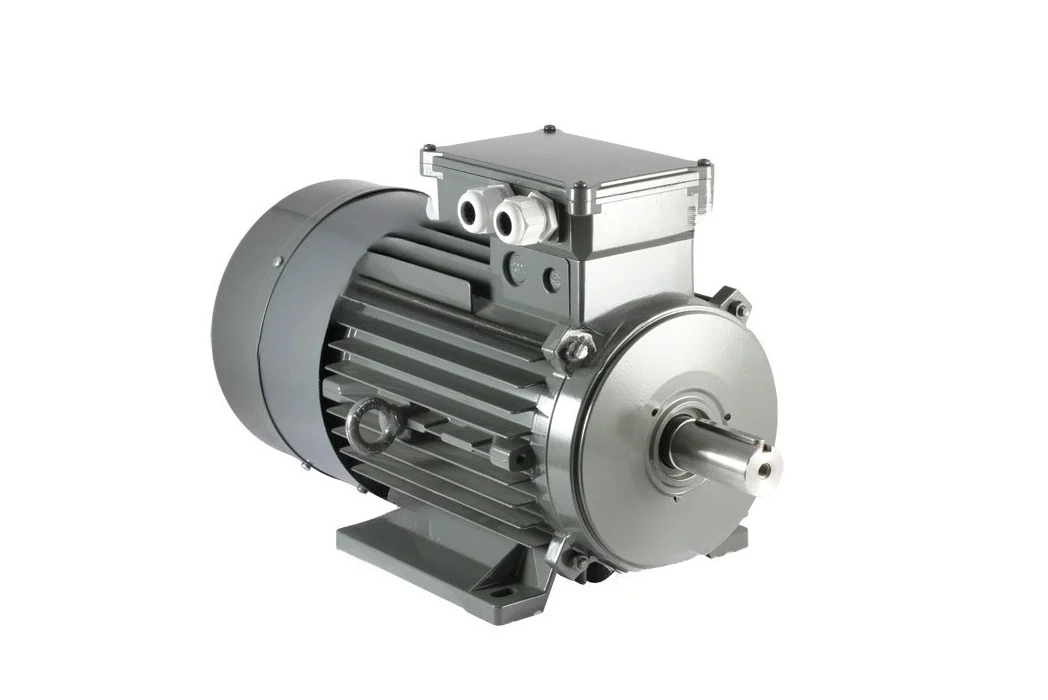

7. 16.6kw Driving Motor.
8. Four Wheel Solid Tires
MAIN SPECS
Lifting Capacity: 3000KG
Self Wight: 4950KG
Battery Group: 80V / 500Ah.
1. Battery Package Capacity:
80V / 500Ah.
2. Drive Train: Front Wheel Drive.
3. Lifting Height of 3000mm
4. Better painting, using the latest powder painting technology.
5. LED lights.
6. 13kw Hydraulic Pump System.
7. 16.6kw Driving Motor.
8. Four Wheel Solid Tires
SPECIFICATIONS
| Electric Forklift CASEREM EF30 | |||
|---|---|---|---|
| Overall Dimensions | Rated Load | 3000kg | |
| Self Weight | 4950kg | ||
| Max Lifting Height | 3000mm | ||
| Frame angle a/β | 6° / 12° | ||
| L x W x H | 3630 x 1243 x 2210mm | ||
| Max Height Working | 4225mm | ||
| Wheel Base | 1680mm | ||
| Battery System | |||
| Battery Rated Capacity | 500Ah | ||
| Battery Model | 12v-500Ah-CSR | ||
| Quantity of Batteriy Groups | 4 | ||
| Rated Voltage | 80V | ||
| Working Hours | 4 hr | ||
| Charging Time | 5 hr | ||

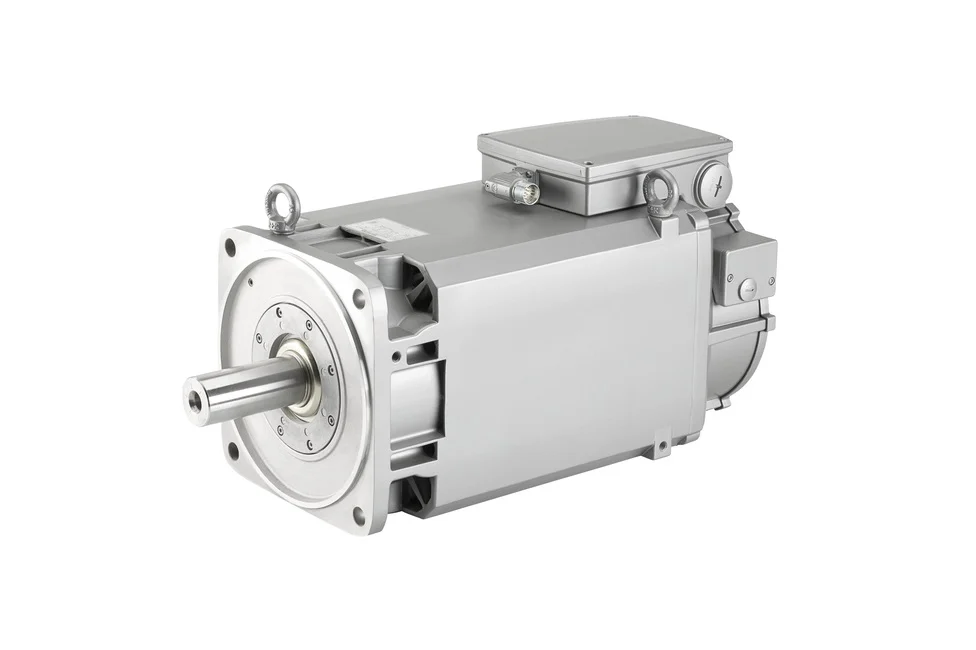

| Driving Motor System | Motor No. | 16.6AC | |
| Voltage | 80V | ||
| Power | 16.6kw | ||
| Number of Motors | 1 in Front | ||
| Brake System | Service Brake: | Hydraulic Brakes | |
| Parking Brake: | Hand Operated | ||
| Tire Size | Front (Solid Tire) | 28 X 9 - 15 | |
| Rear (Solid Tire) | 18 x 7 - 8 | ||
