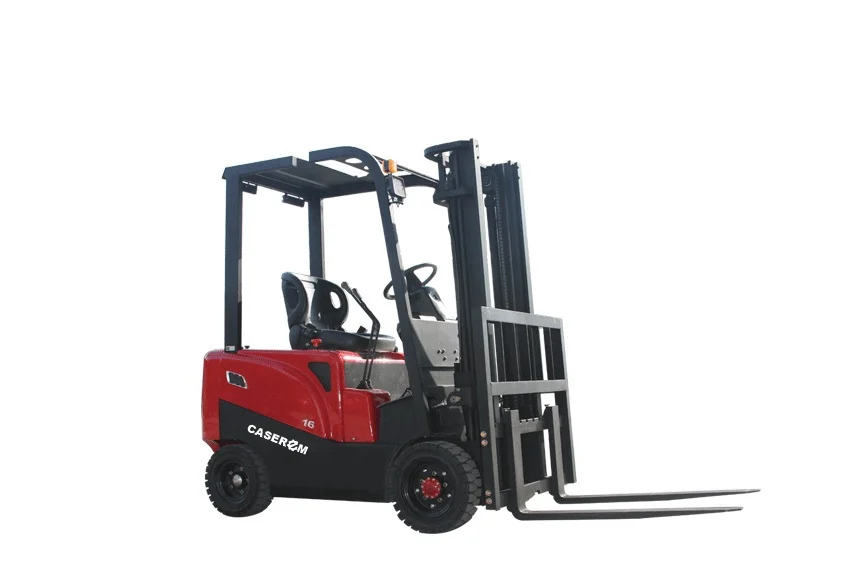

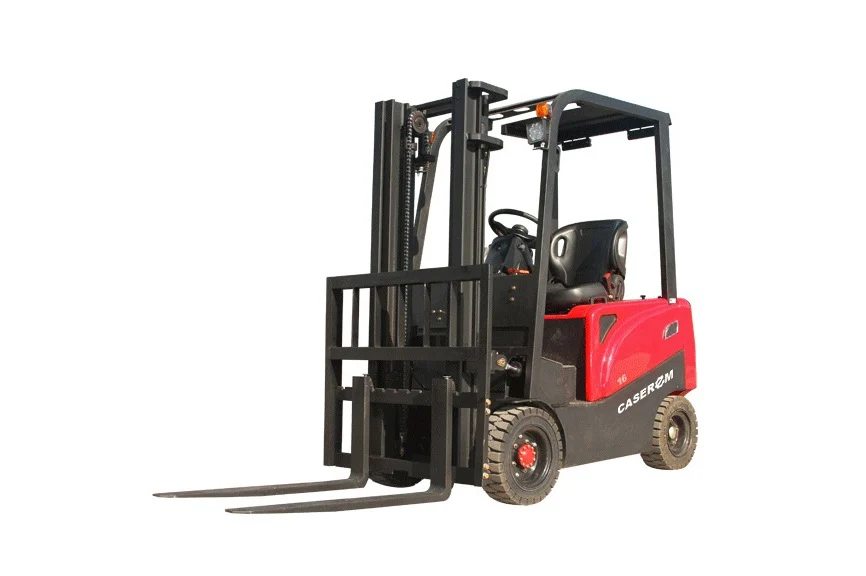

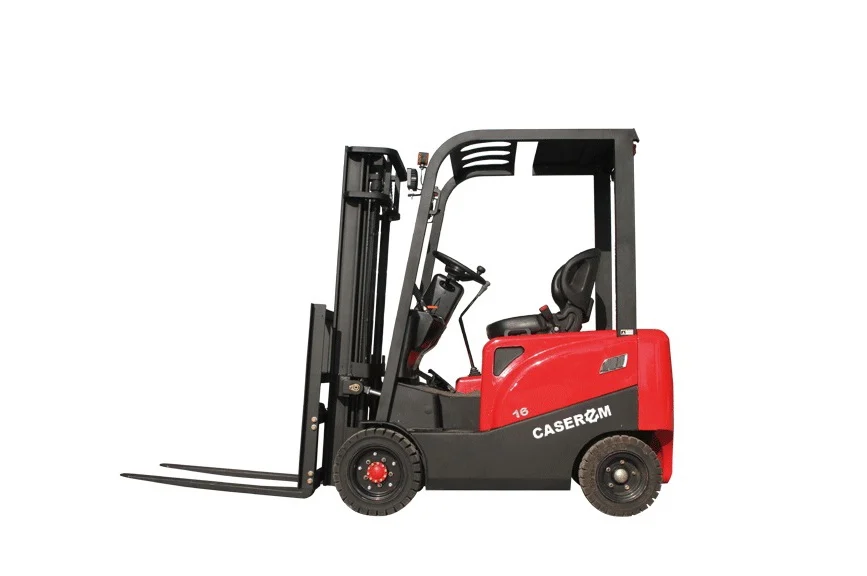

Electric Forklift EF16
CASEREM EF16 is a 1.6 ton loading capacity Electric Forklift, with the following features:
1. 48V, 230Ah Battery.
2. Drive Train: 2×4 wheel Drive.
3. Min Turning Radius 2100mm, with narrow design: Short Turning Radius, makes the Machine perfectly working in small areas.
4. Better painting, using the latest powder painting technology.
5. LED lights.
MAIN SPECS
LOADING CAPACITY: 1600KG
SELF WEIGHT: 2650KG
Battery Gropu: 48V, 230Ah.
1. 48V, 230Ah Battery.
2. Drive Train: 2×4 wheel Drive.
3. Min Turning Radius 2100mm, with narrow design: Short Turning Radius, makes the Machine perfectly working in small areas.
4. Better painting, using the latest powder painting technology.
5. LED lights.
SPECIFICATIONS
| Electric Forklift CASEREM EF16 | |||
|---|---|---|---|
| Overall Dimensions | Rated Load | 1600kg | |
| Self Weight | 2650kg | ||
| Max Lifting Height | 3000mm | ||
| Frame angle a/β | 6° / 12° | ||
| L x W x H | 3040 x 1000 x 2010mm | ||
| Max Height Working | 4050mm | ||
| Wheel Base | 1260mm | ||
| Battery System | |||
| Battery Rated Capacity | 230Ah | ||
| Battery Model | 12v-230Ah-CSR | ||
| Quantity of Batteriy Groups | 4 | ||
| Rated Voltage | 48V | ||
| Working Hours | 4 hr | ||
| Charging Time | 5 hr | ||
| Driving Motor System | Motor No. | 6.5AC | |
| Voltage | 48V | ||
| Power | 6.5kw | ||
| Number of Motors | 1 in Front | ||
| Brake System | Service Brake: | Hydraulic Brakes | |
| Parking Brake: | Hand operated | ||
| Tire Size | Front (Solid Tire) | 18x7 - 10 | |
| Rear (Solid Tire) | 16x6 - 8 | ||
