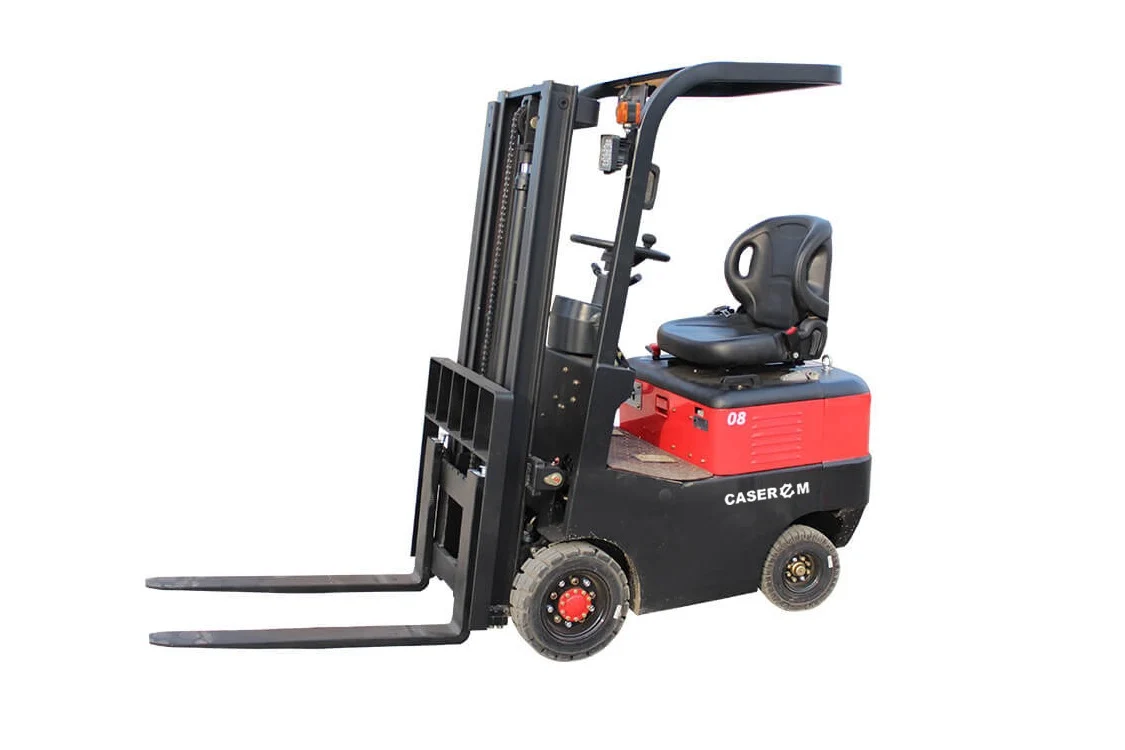

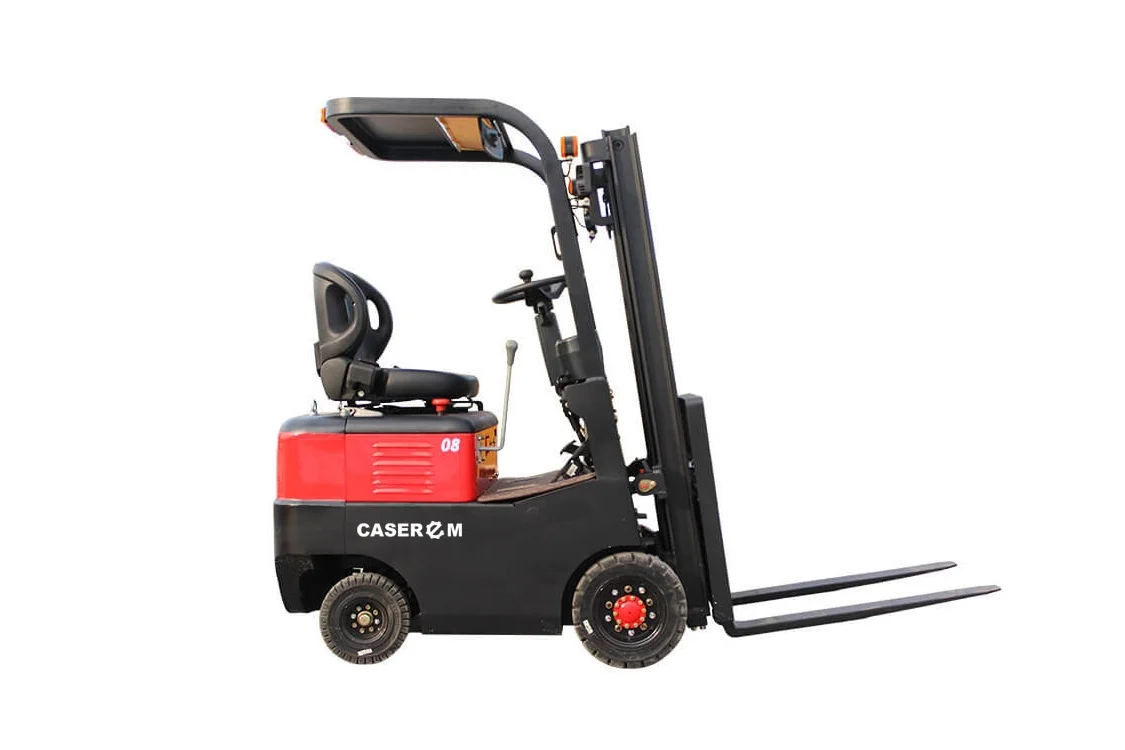

Electric Forklift EF08
CASEREM EF08 is a 0.8 ton loading capacity Electric Forklift, with the following features:
1. 48V, 140Ah Battery.
2. Drive Train: Front wheel Drive.
3. Min Turning Radius 1200mm, with narrow design: Short Turning Radius, makes the Machine perfectly working in small areas.
4. Better painting, using the latest powder painting technology.
5. LED lights.
MAIN SPECS
LOADING CAPACITY: 800KG
SELF WEIGHT: 1100KG
Electric System: 48V, 140Ah.
1. 48V, 140Ah Battery.
2. Drive Train: Front Wheel Drive.
3. Min Turning Radius 1200mm, with narrow design: Short Turning Radius, makes the Machine perfectly working in small areas.
4. Better painting, using the latest powder painting technology.
5. LED lights.
SPECIFICATIONS
| Electric Forklift CASEREM EF08 | |||
|---|---|---|---|
| Overall Dimensions | Rated Load | 500 - 800kg | |
| Self Weight | 1100kg | ||
| Max Lifting Height | 2500mm | ||
| Frame angle a/β | 6° / 12° | ||
| L x W x H | 2040 x 800 x 1820mm | ||
| Max Height Working | 3070mm | ||
| Wheelbase | 860mm | ||
| Battery System | |||
| Battery Rated Capacity | 140Ah | ||
| Battery Model | 12v-140Ah-csr | ||
| Quantity of Batteriy Groups | 4 | ||
| Rated Voltage | 48V | ||
| Working Hours | 4 hr | ||
| Charging Time | 5 hr | ||
| Driving Motor System | Motor No. | 3.0AC | |
| Voltage | 48V | ||
| Power | 3kw | ||
| Number of Motors | 1 in Front | ||
| Brake System | Service Brake: | Hydraulic Brakes | |
| Parking Brake: | Hand operated | ||
| Tire Size | Front (Solid Tire) | 15x4 1/2-8 | |
| Rear (Solid Tire) | 3.50-5 | ||
