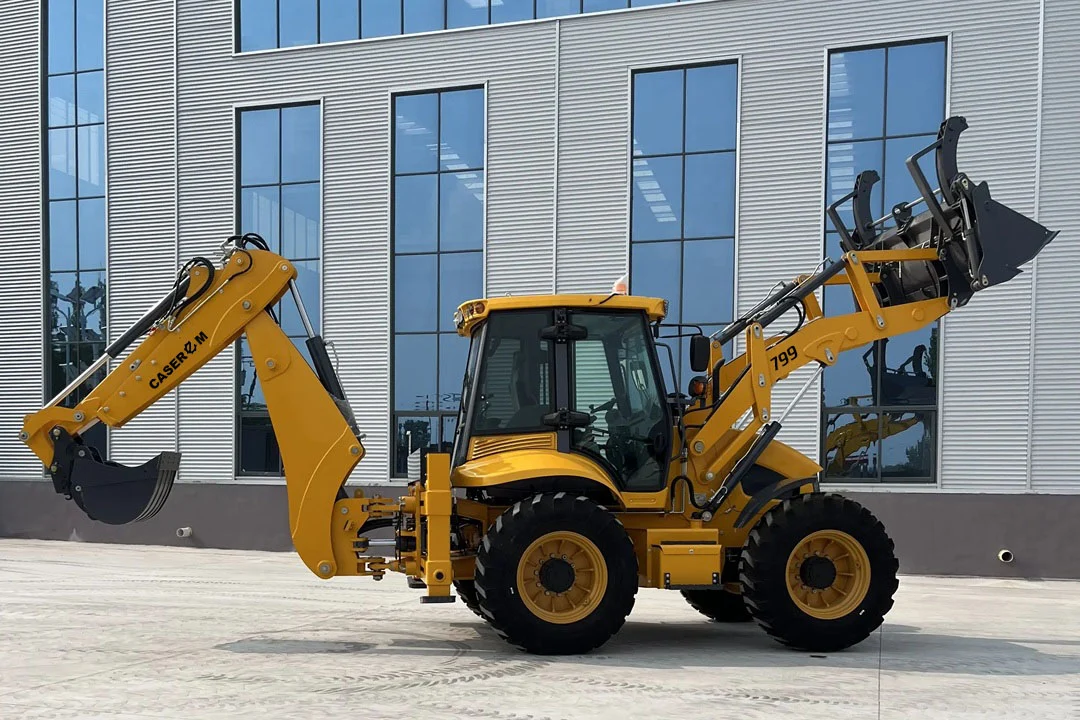

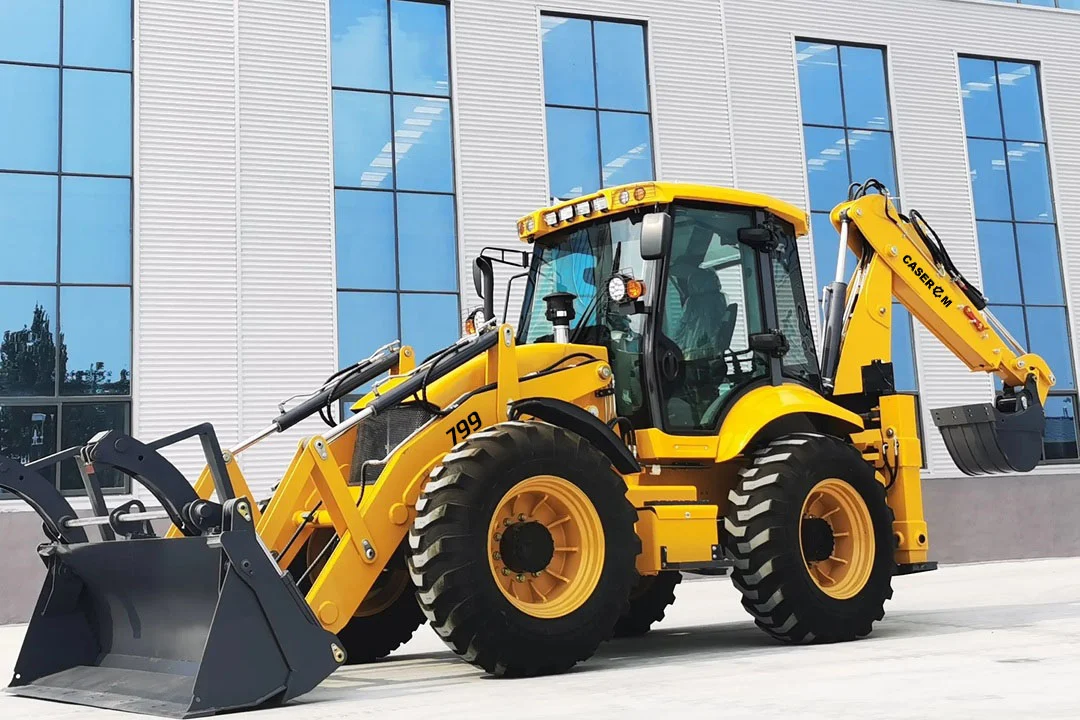

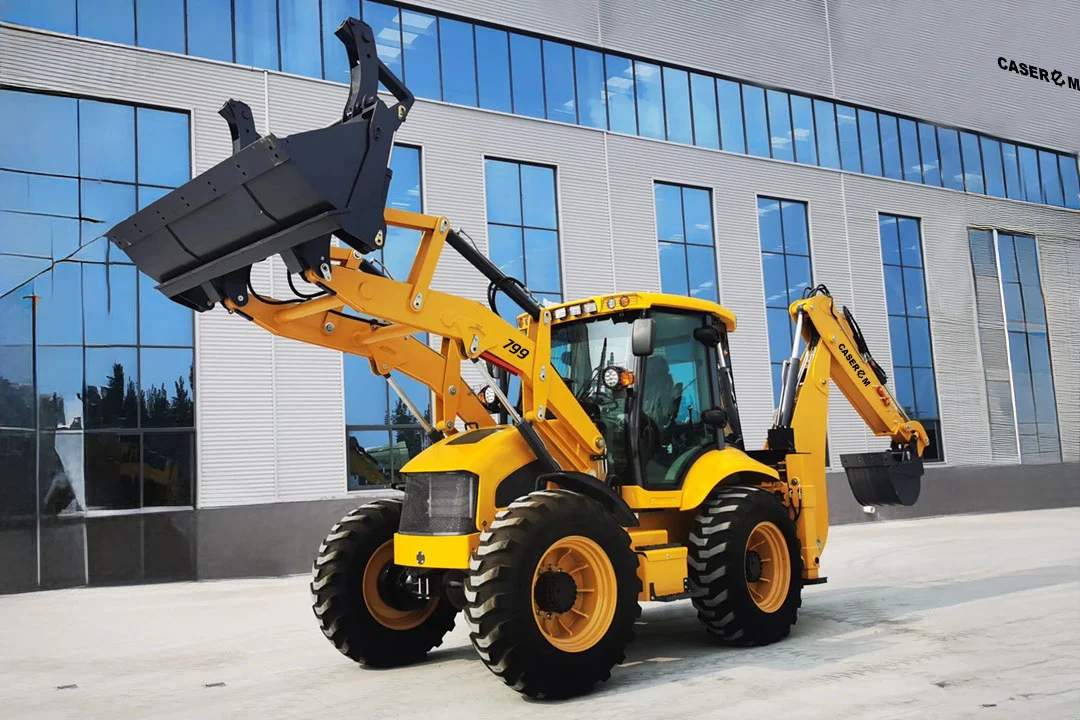

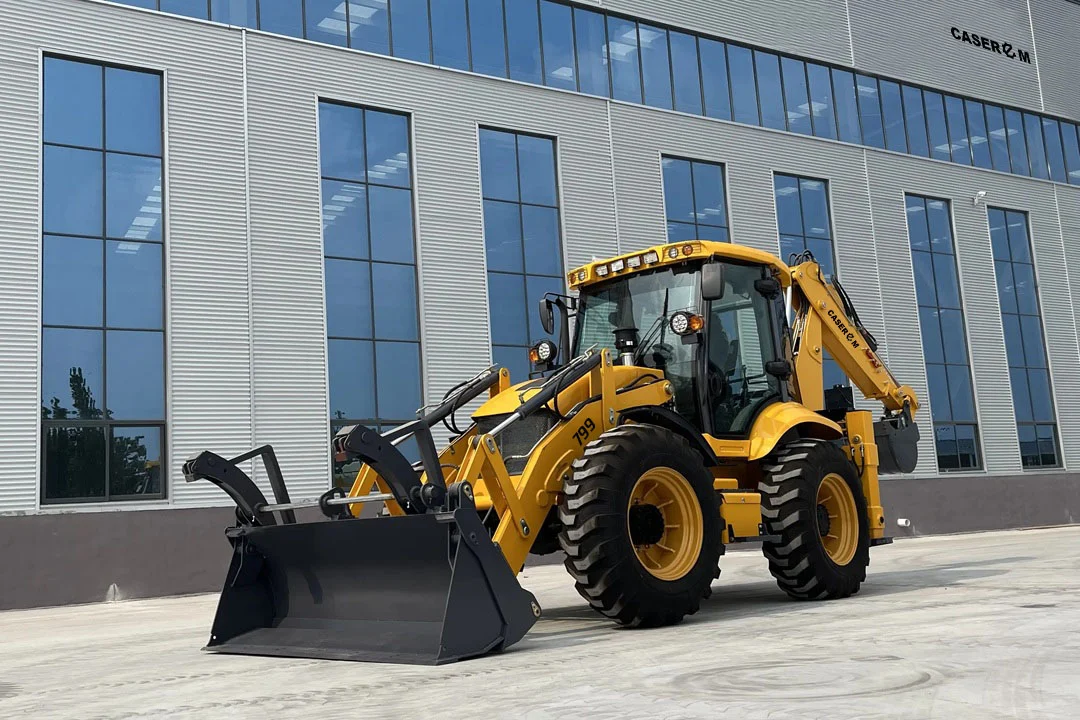

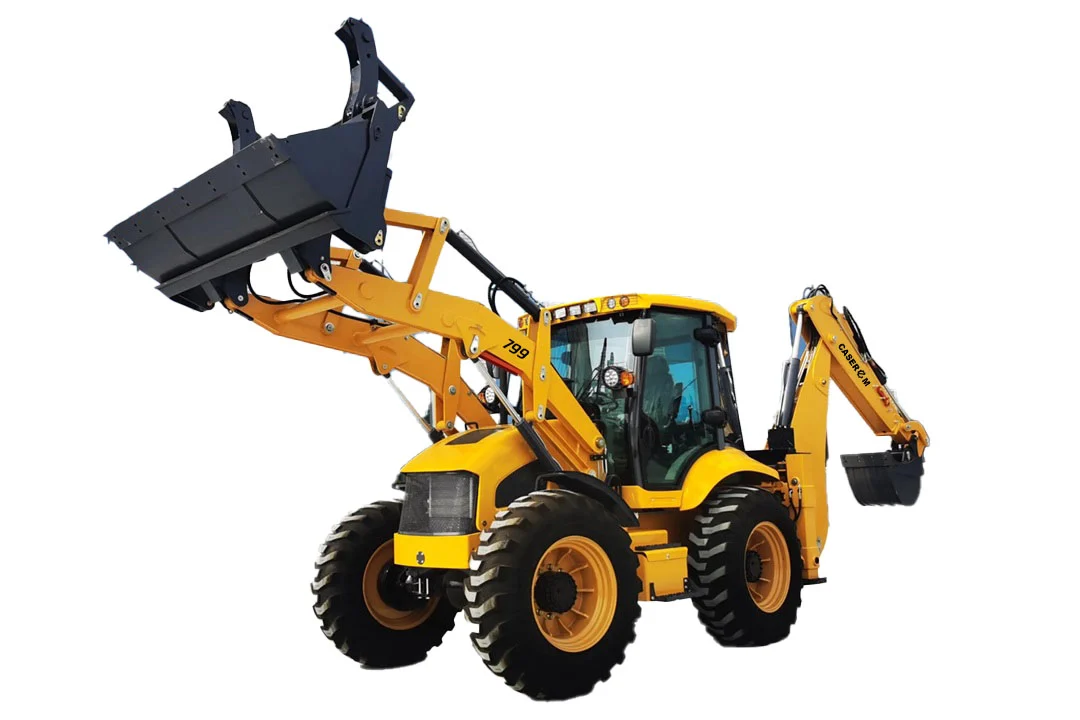

Backhoe Loader 799
2.8 TON LOADING CAPACITY BACKHOE LOADER:
1. Loader function in front, Excavator function in the Rear.
2. Fully hydraulic power shift Transmission, and Torque Convertor.
3. Comfortable Suspension Seat.
4. Joystick Control.
5. 4 X 4 Wheel Drive.
6. Better Designed Frame, and outside looking.
7. Articulated Frame, Makes the Machine strong.
8. Nice and Bigger Cabin
9. Different Engine Options can choose from.
10. Interior Fan, and AC, keeps operator cool in Summer time.
11. Excavator with Supporting Legs
12. Wide Range of Attachments can choose from.
MAIN SPECS
LOADING CAPACITY: 2800KG
SELF WEIGHT: 10200KG
ENGINE POWER: 85kW (115hp)

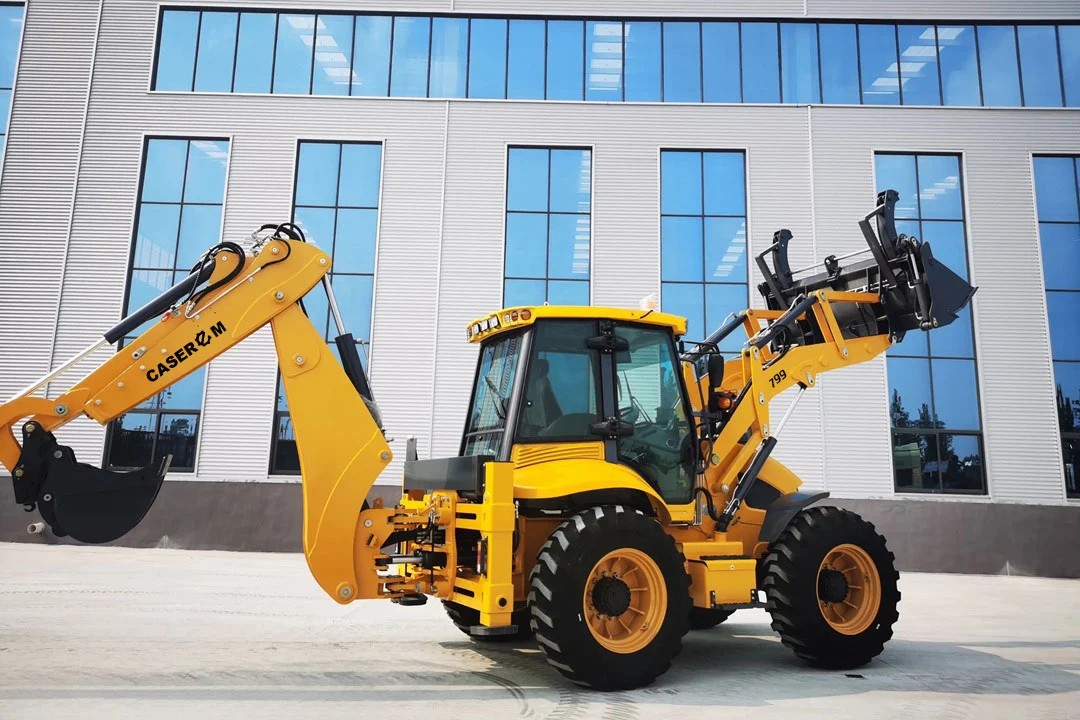

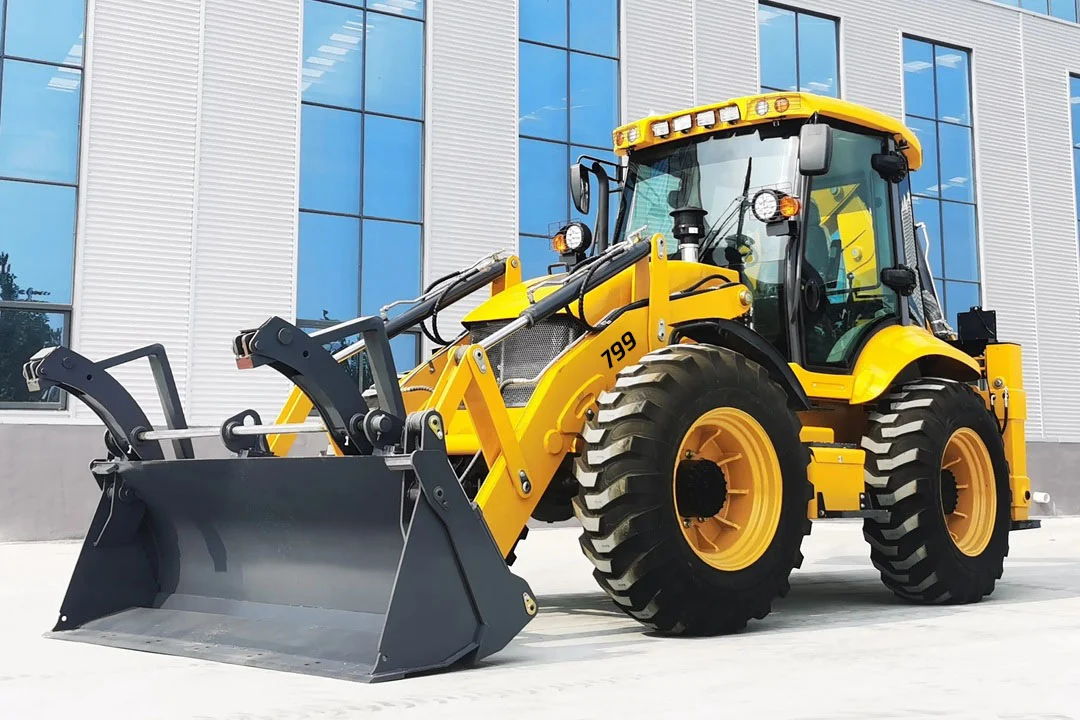

1. Loader function in front, Excavator function in the Rear. 2 different machine functions build in 1 machine.
2. Fully hydraulic power shift Transmission, and Torque Convertor, makes the machine easy to operate.

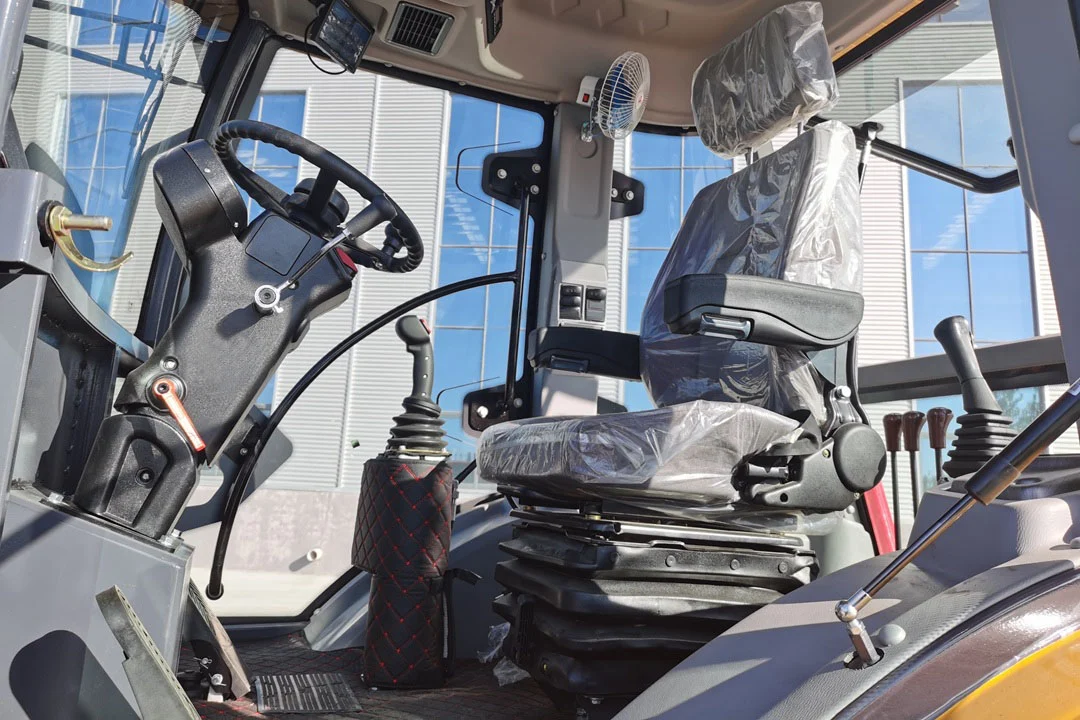

3. Comfortable Suspension Seat.

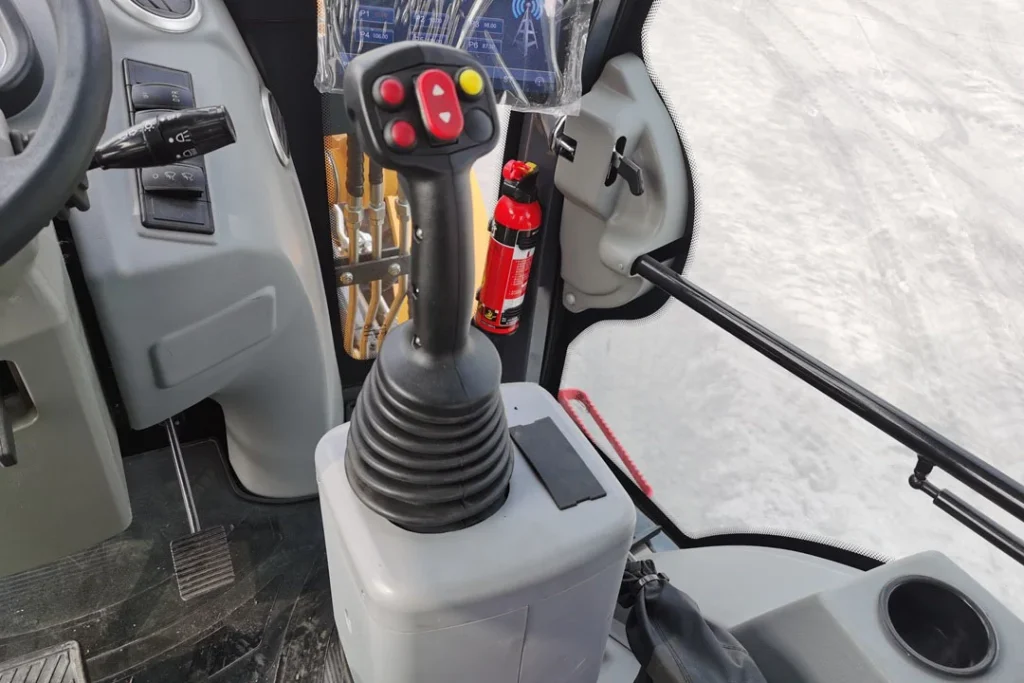

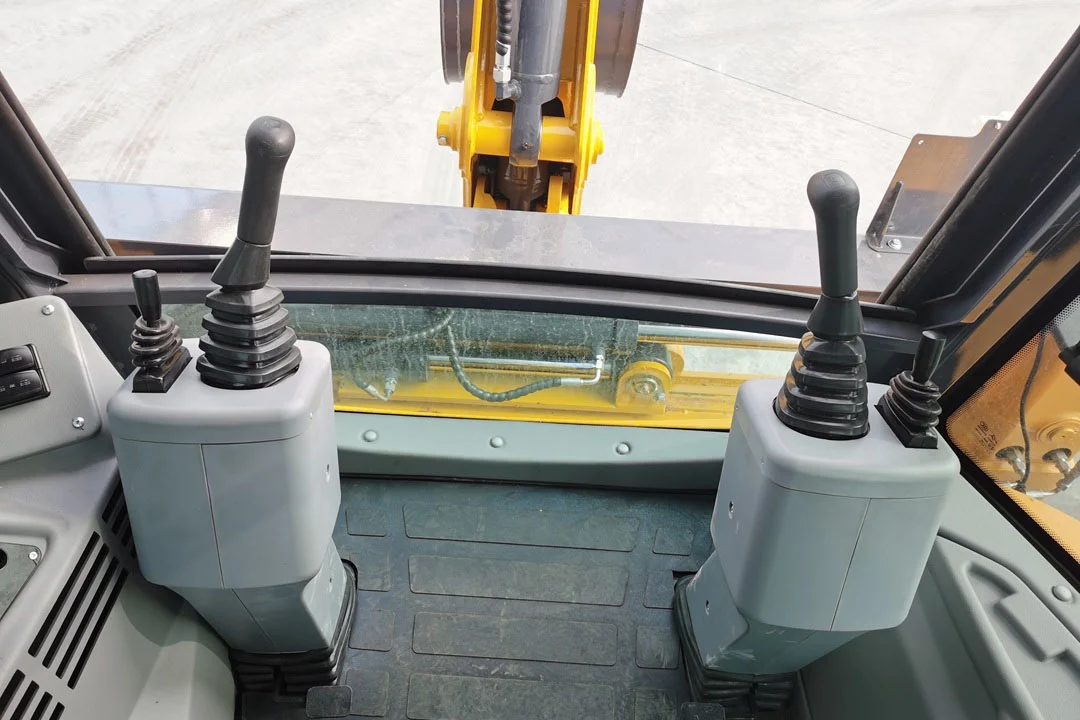

4. Joystick Control, makes the loading system easier to operate.
5. Drive Train is 4 X 4 Wheel Drive
6. Better Designed Frame, and outside looking.
7. Articulated Frame, Makes the Machine strong.
8. Nice and Bigger Cabin
9. Different Engine Options can choose from (Standard is Xinchai 498, 37kw) and optional of Euro 5 or EPA engine.

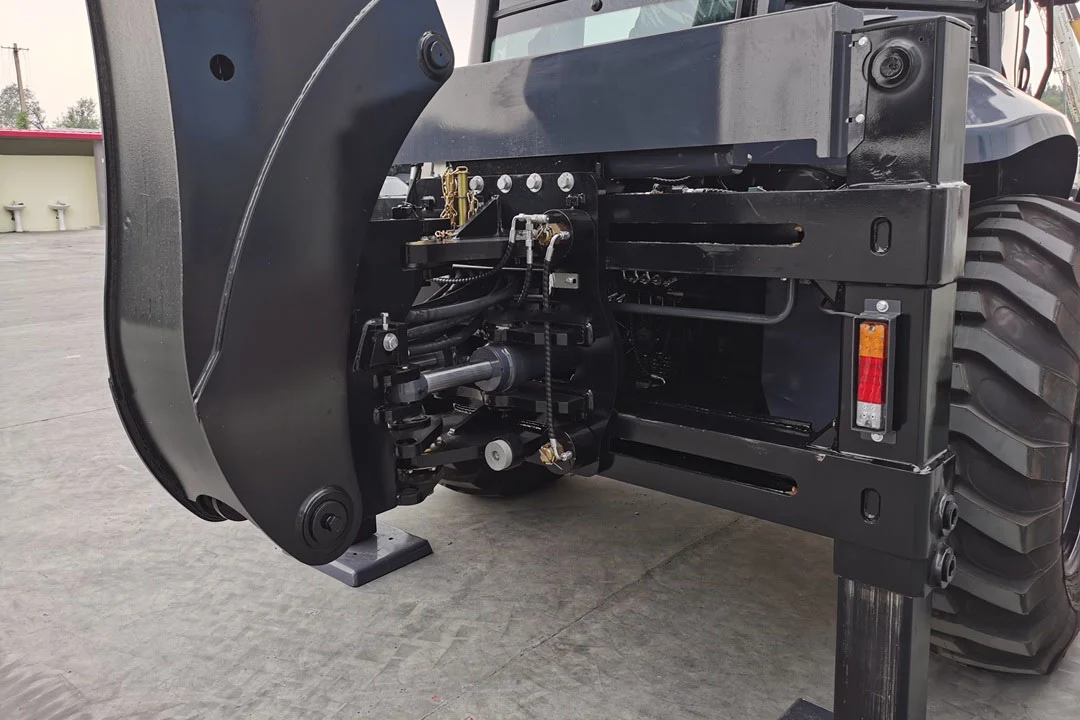

10. “H” type of Rear Supporting Legs, makes the excavator system steady to work with.
11. Rear Excavator System can shift left or right hand side.
12. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| BACKHOE LOADER CASEREM 799 | ||
|---|---|---|
| Overall Dimensions | L x W x H | 6260 X 2360 X 3100mm |
| Overall Weight | 10200kg | |
| Front Loader System | Rated Load | 2800kg |
| Bucket Capacity | 1.2 cbm | |
| Dumping height | 3100mm | |
| Rear Excavator System | Bucket Capacity | 0.3 cbm |
| Digging Depth (With Telescopic) | 4050mm (5100mm) | |
| Digging Power | 50.5kn | |
| Standard Engine | Make & Model: | YTO YT4A4Z-24 |
| Engine Type | Water-cooled, 4 Cylinder Diesel Engine | |
| Rated Power: | 85kW @2400rpm (125hp) | |
| Transmission system | Type | Hydraulic Power Shift |
| Gear Numbers: | 2 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2400 (rpm) | |
| Operating Specifications | Drive Train: | 4 X 4 wheel drive |
| Steering Model | BZZ5-250 | |
| Min Turning Radius: | 4036mm | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Brake Type: | Air Over Hydraulic Disk Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | ||
| Front Tire Size | 16.9-28 | |
| Rear Tire Size | 16.9-28 | |
