Backhoe Loader 620
2.5 TON LOADING CAPACITY BACKHOE LOADER:

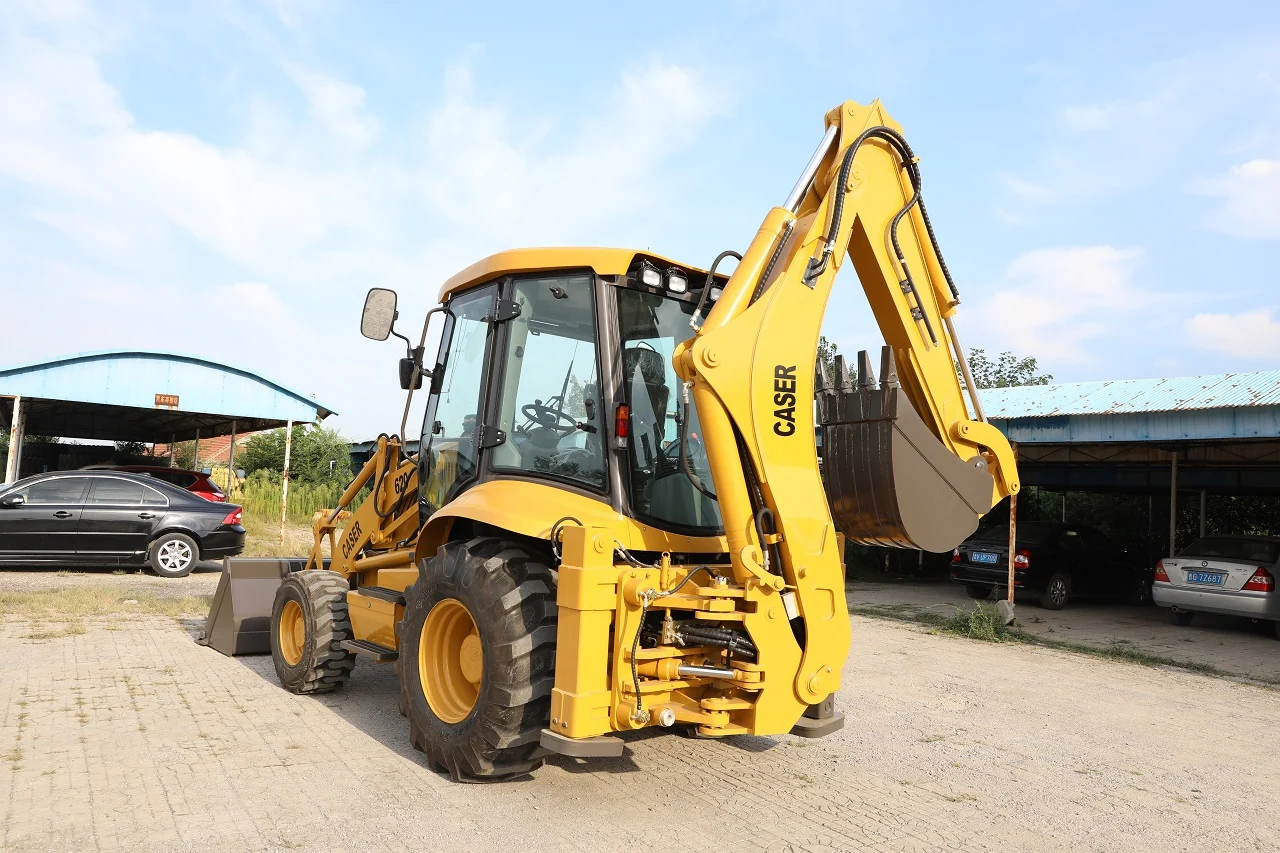

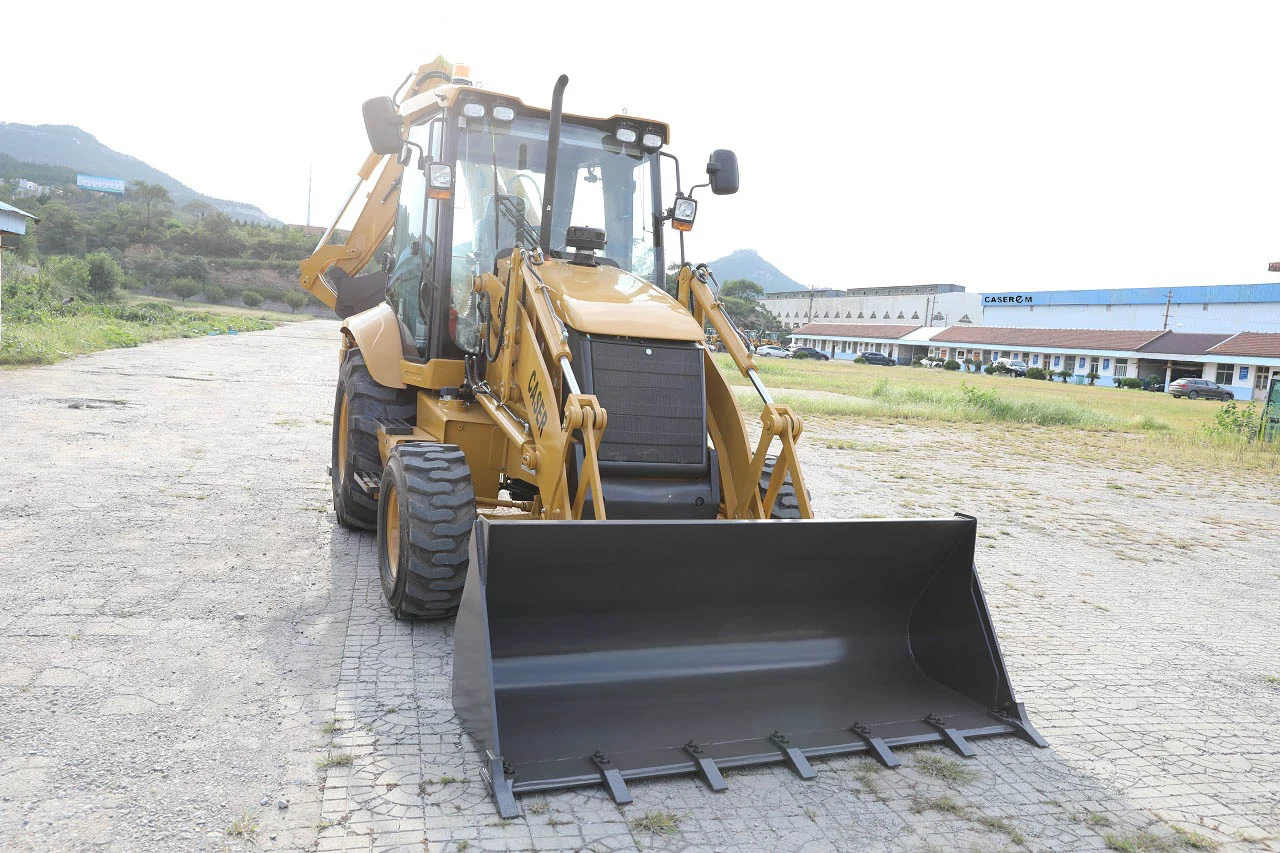

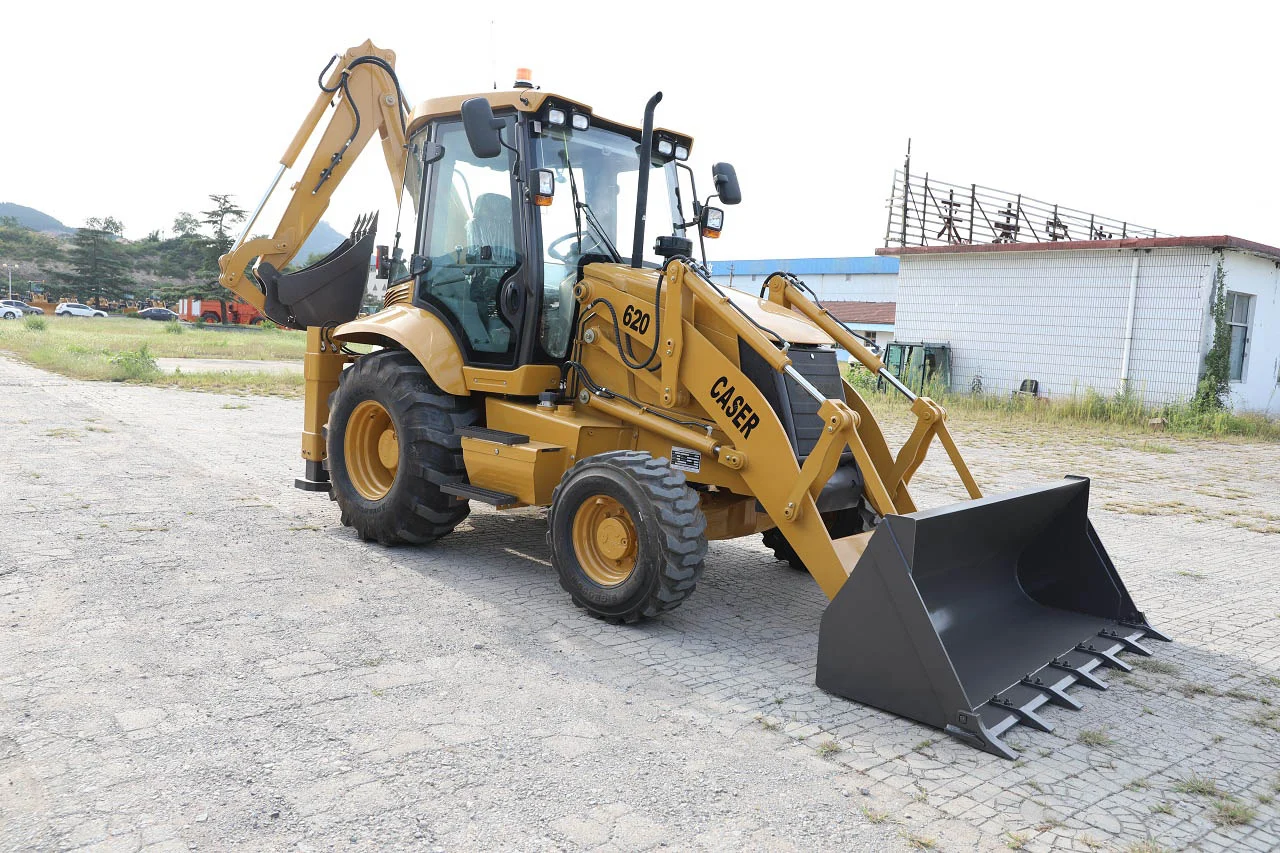

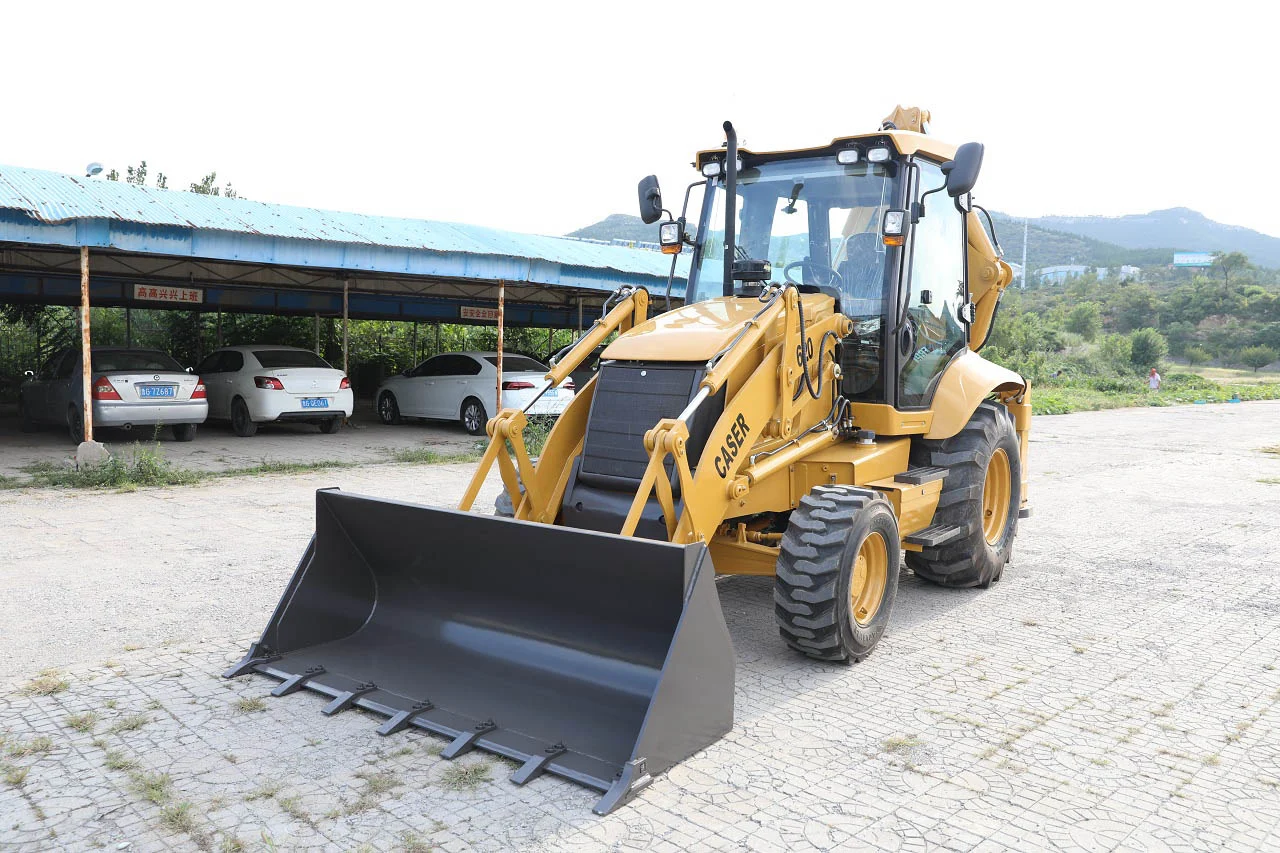

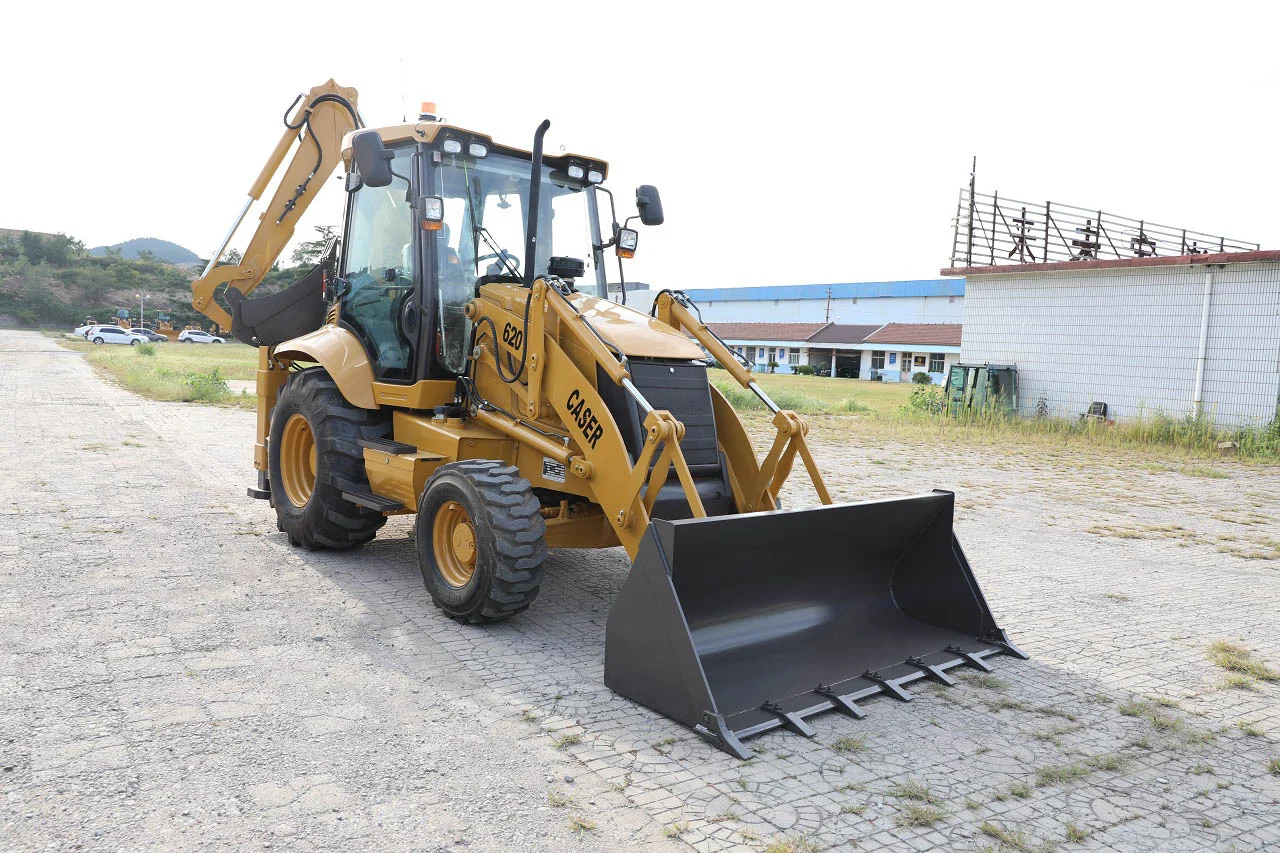

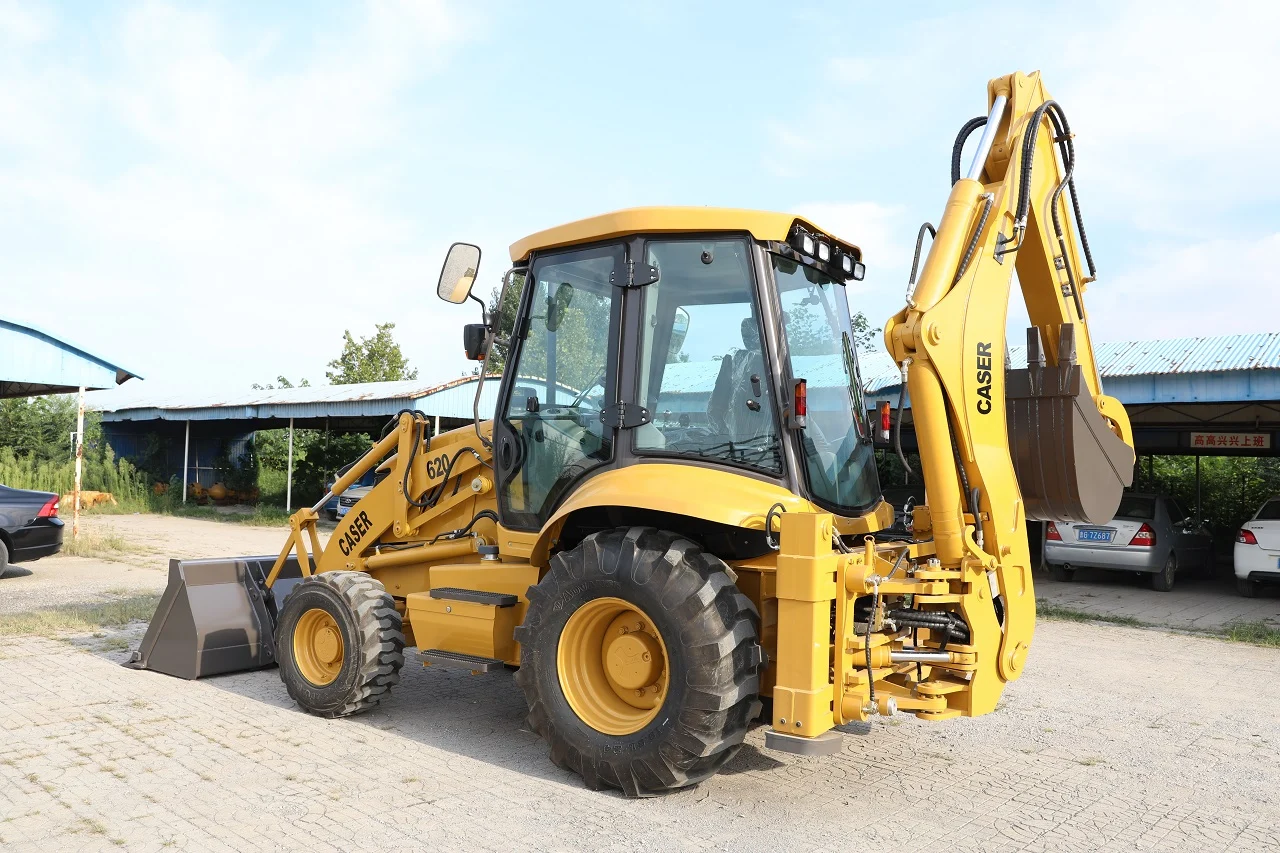

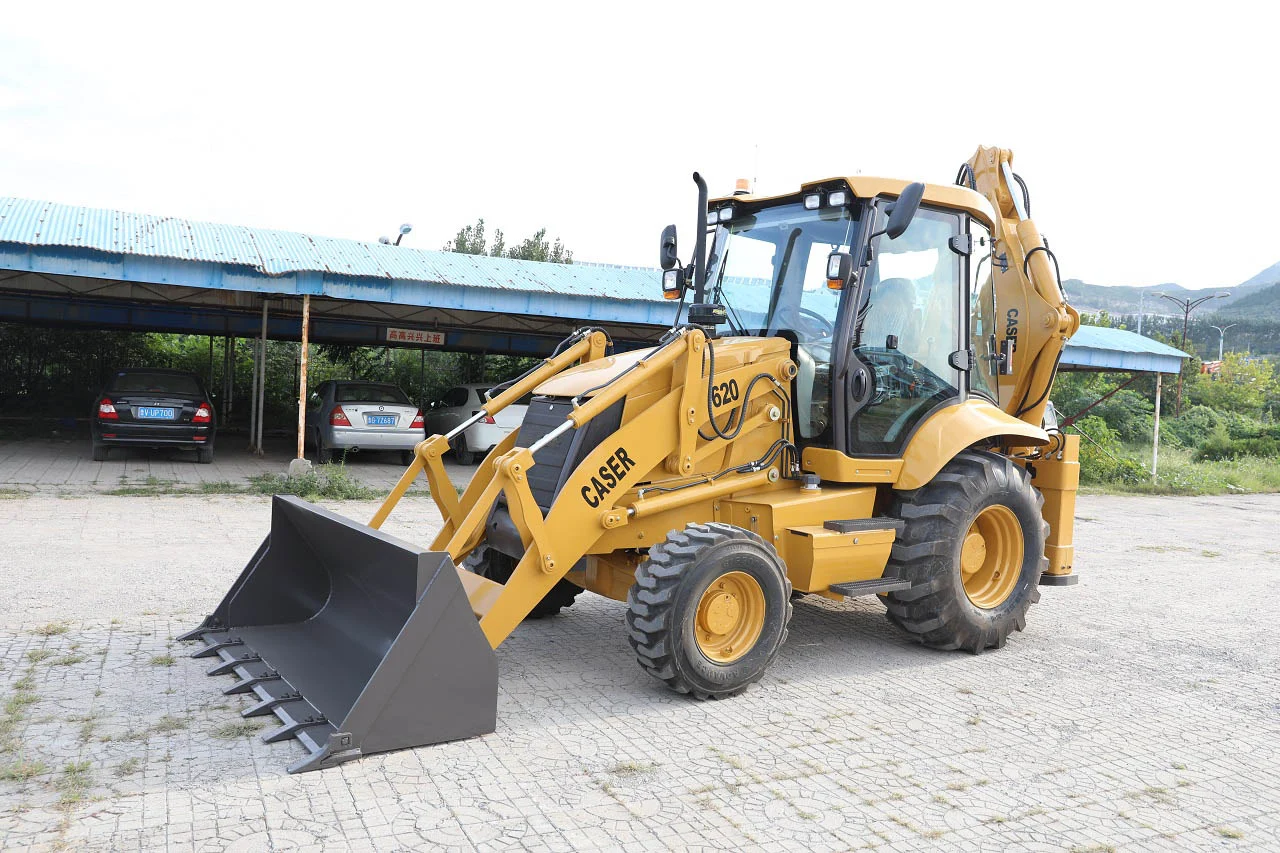

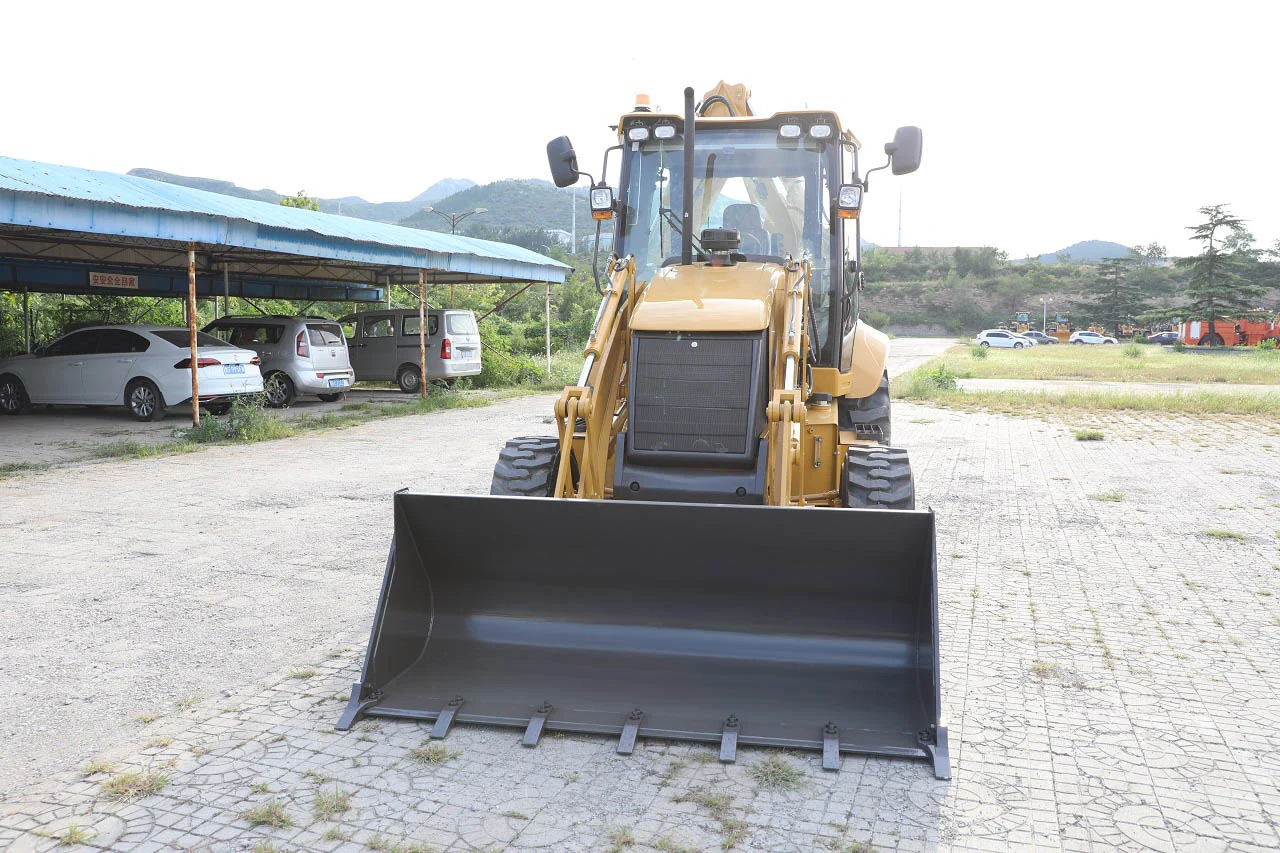

1. Loader function in front, Excavator function in the Rear.
2. Fully hydraulic power shift Transmission, and Torque Convertor.
3. Axle with Disk brakes, and Differential Gear Function.
4. Joystick Control.
5. 4 X 4 Wheel Drive.
6. LED Lights.
7. Digital Dashboard, Operator can monitoring main parts data.
8. Full Openable Front and Rear Windshield.
9. Different Engine Options can choose from.
10. Interior Fan, and AC, keeps operator cool in Summer time.

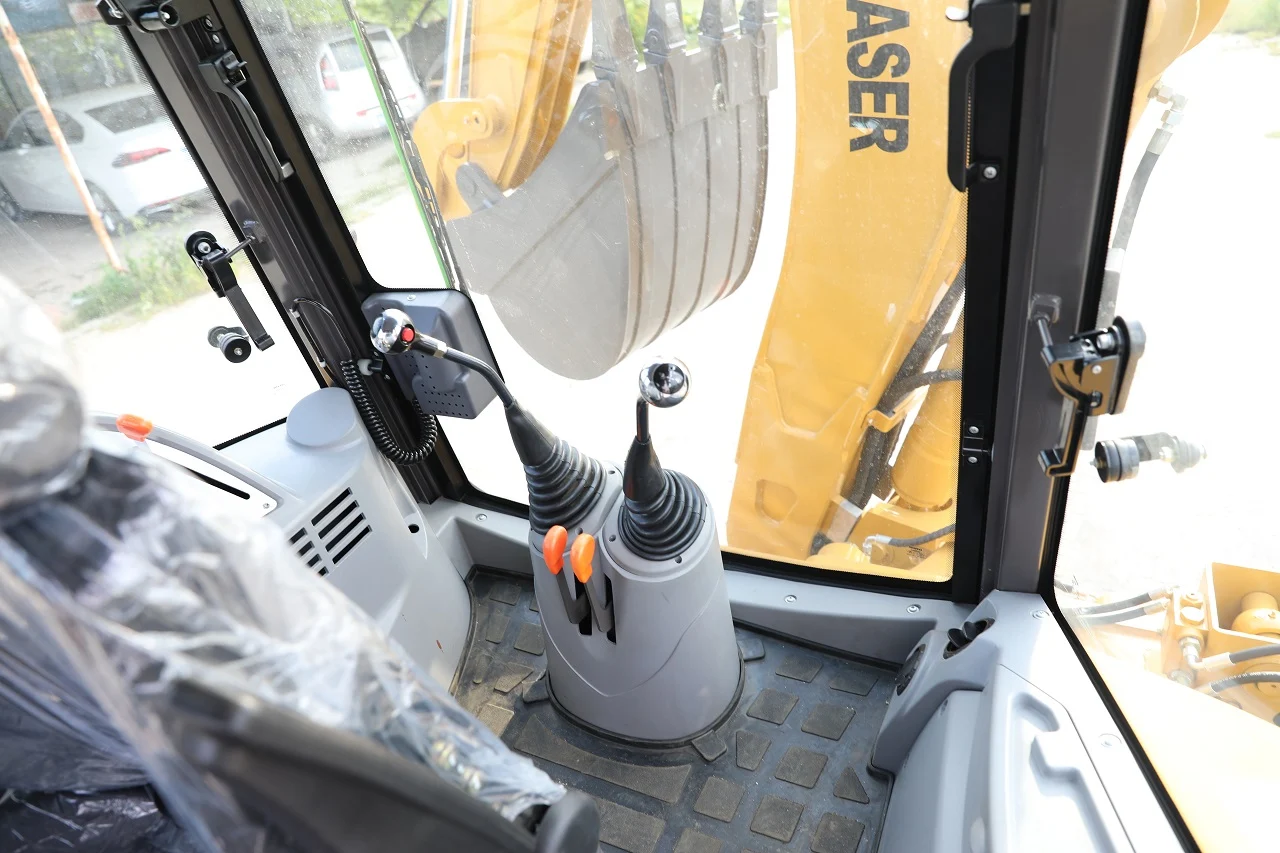

11. Excavator Joystick Control.
MAIN SPECS
LOADING CAPACITY: 2500KG
SELF WEIGHT: 8200KG
ENGINE POWER: 75kW (100hp)

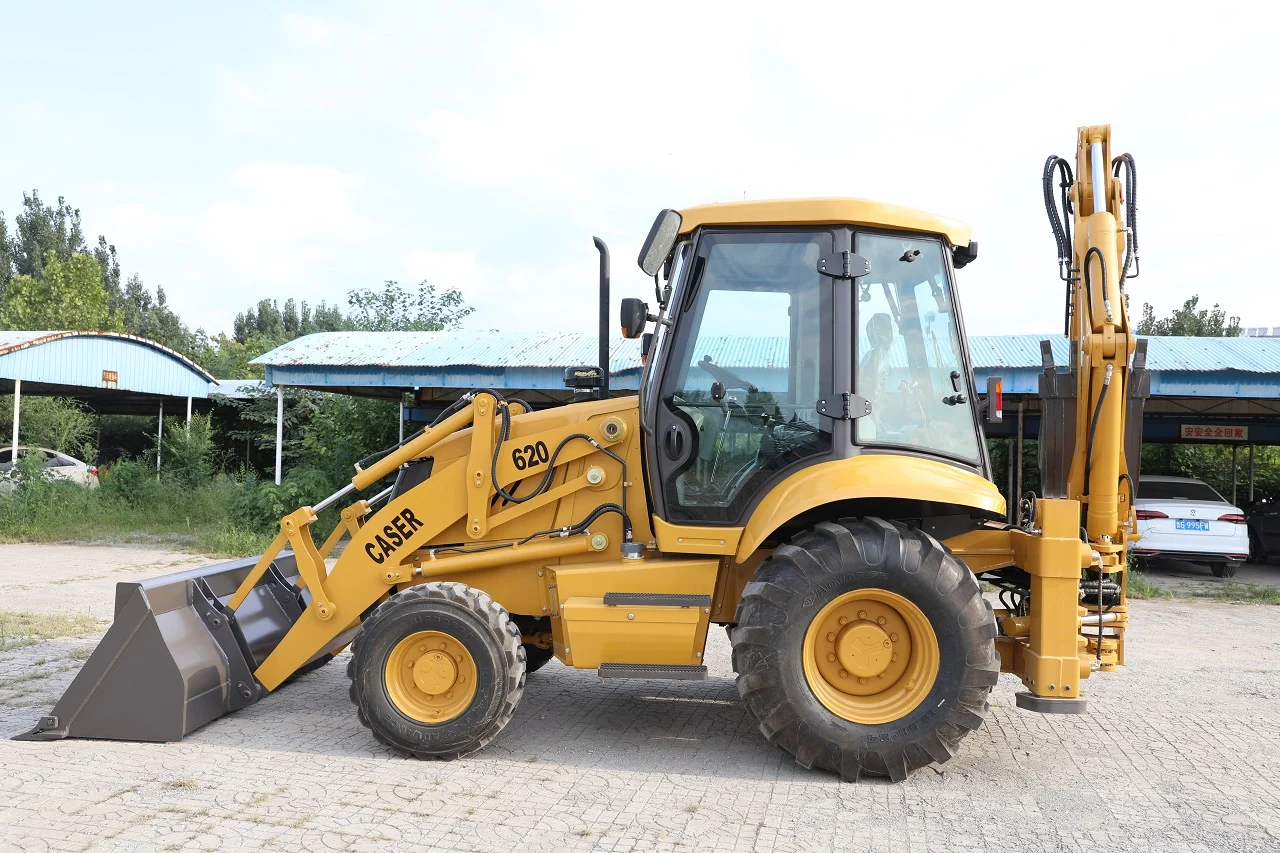

1. Loader function in front, Excavator function in the Rear. 2 different machine functions build in 1 machine.
2. Fully hydraulic power shift Transmission, and Torque Convertor, makes the machine easy to operate.

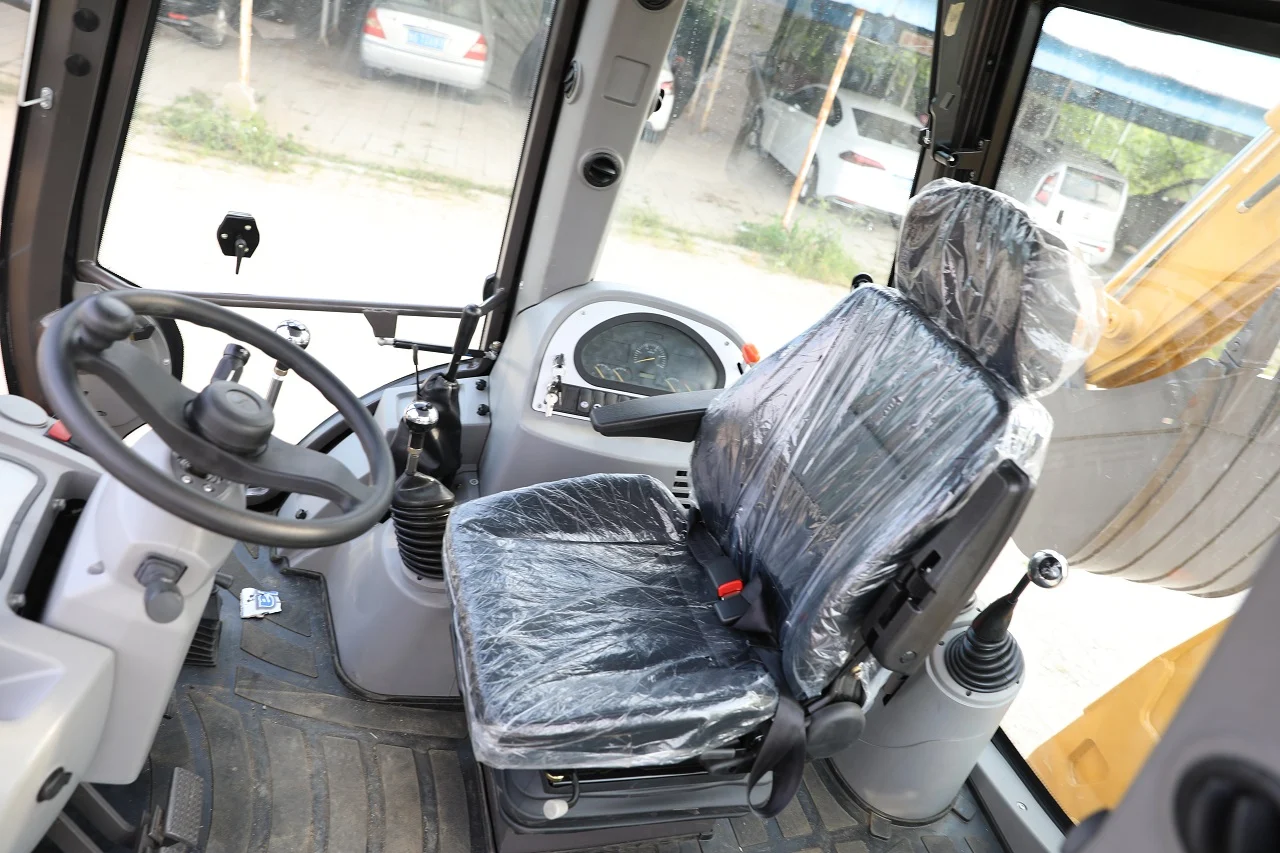

3. Comfortable Suspension Seat.

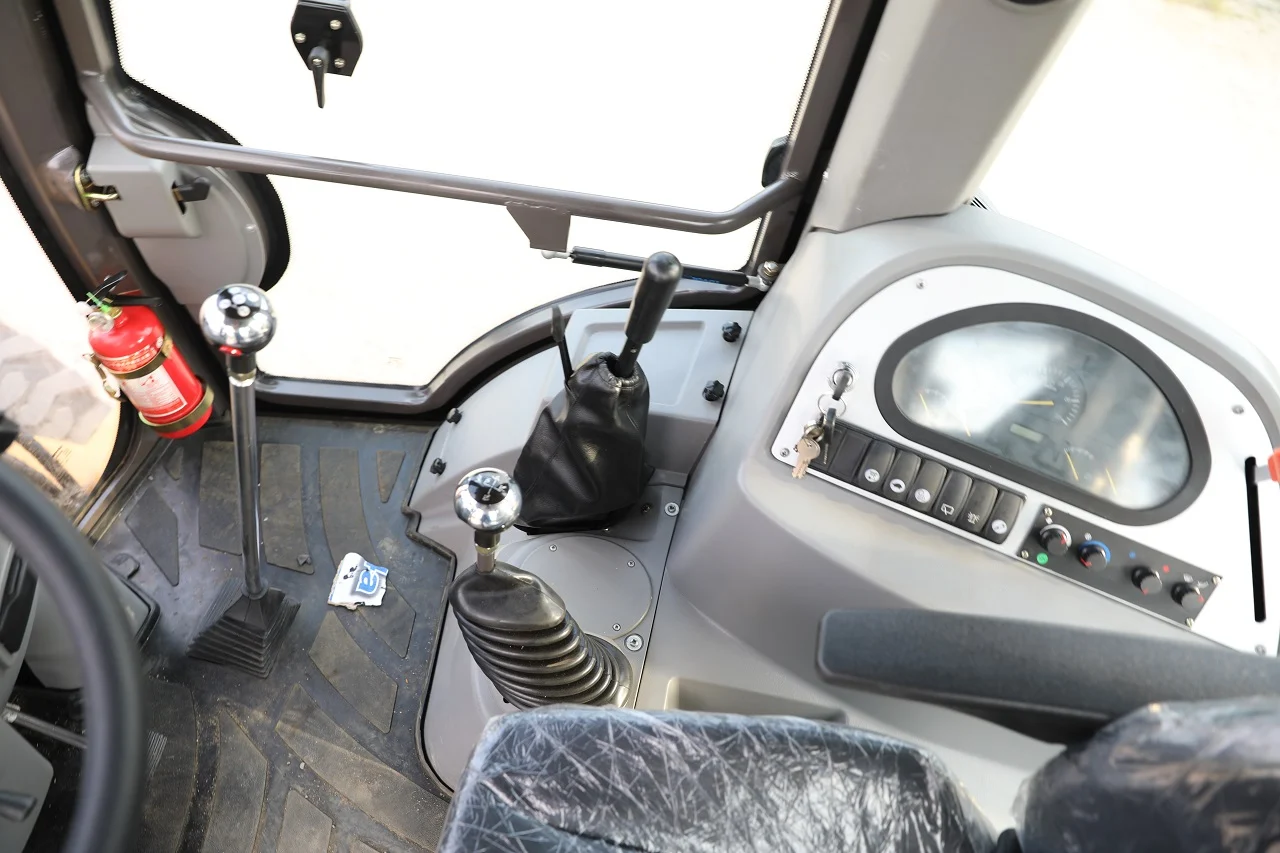

4. Joystick Control, makes the loading system easier to operate.
5. Drive Train is 4 X 4 Wheel Drive
6. Better Designed Frame, and outside looking.
7. Data Dashboard, Operator can monitoring main parts data.

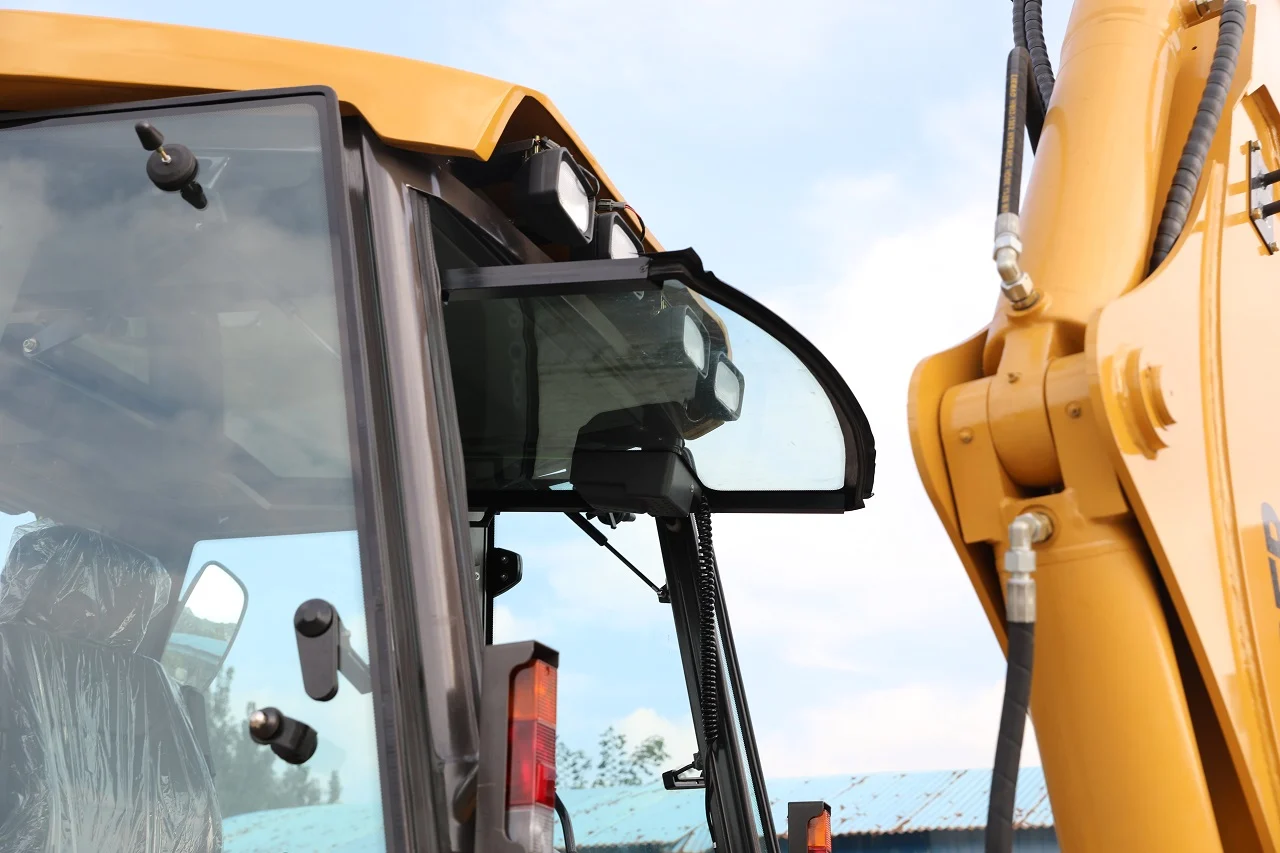

8. Full Openable Front and Rear Windshield
9. Different Engine Options can choose from (Standard is Yuchai YC4A105Z, 75kw) and optional of Cummins 4BT3.9-C100 with 75kW (100hp) engine.

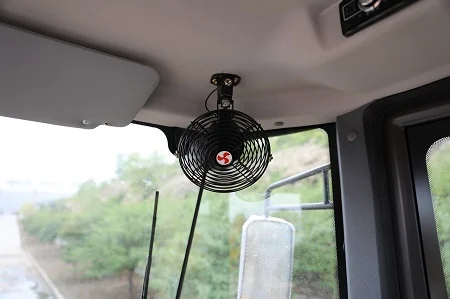

10. Interior Fan, and AC, keeps operator cool in Summer time.
11. Excavator Control joystick.
12. Wide Range of Attachments can choose from.
That makes a single machine into a multiple usage machine
SPECIFICATIONS
| BACKHOE LOADER CASER 620 | ||
|---|---|---|
| Overall Dimensions | L x W x H | 6150 X 2250 X 3763mm |
| Overall Weight | 8200kg | |
| Front Loader System | Rated Load | 2500kg |
| Bucket Capacity | 1.0 cbm | |
| Dumping height | 2742mm | |
| Rear Excavator System | Bucket Capacity | 0.3 cbm |
| Digging Depth | 4082mm | |
| Digging Power | 46.5kn | |
| Standard Engine | Make & Model: | Yuchai YC4A105Z |
| Engine Type | Water-cooled, 4 Cylinder Turbo Diesel Engine | |
| Rated Power: | 75kW@2400rpm (100hp) | |
| Transmission system | Type | Hydraulic Power Shift |
| Gear Numbers: | 2 Forward; 2 Reverse | |
| Transmission Oil Pressure: | 1.2 ~1.5MPa | |
| Rated input speed: | 2000 (rpm) | |
| Operating Specifications | Drive Train: | 4 X 4 wheel drive |
| Steering Model | BZZ5-250 | |
| Min Turning Radius: | 6581mm | |
| Hydraulic cycle time: | 9.5 Second. | |
| Brake System | Brake Type: | Air Over Hydraulic Disk Brakes |
| Parking Brake: | Hand operated | |
| Tire Size | ||
| Front Tire Size | 14-17.5 | |
| Rear Tire Size | 19.5L-24 | |
